AS Biology Paper 1 2024

Worksheet on the human gas exchange system with labeled diagrams and questions on lung structure and alveolar gas exchange. Includes identification tasks and matching activities. Ideal for GCSE biology practice

Preview 10 of 32 pages

See the first 10 pages exactly as they appear in the document.

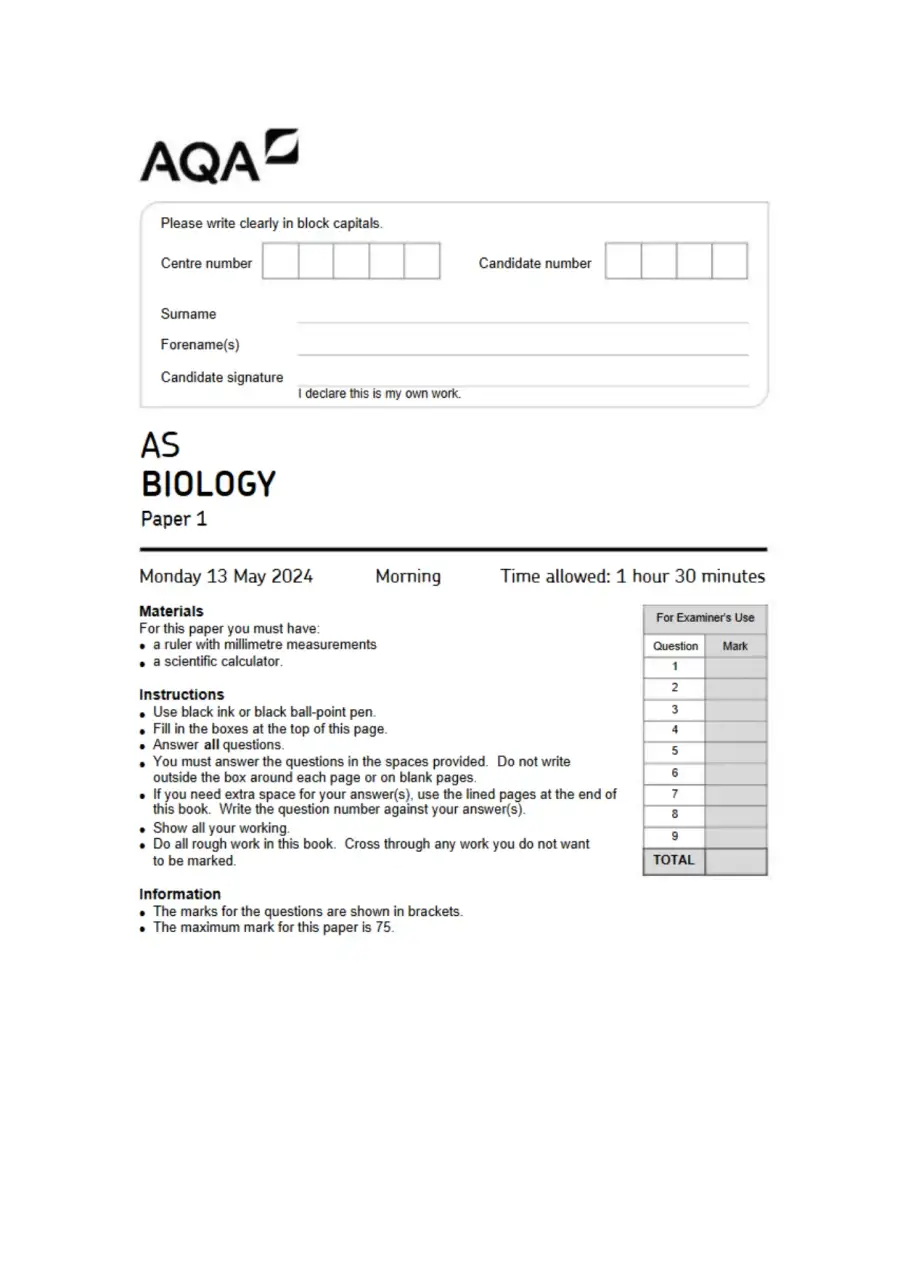

  1. Page 1
    Read page 1 as text

    AQA C Please write clearly in block capitals. Centre number Candidate number Surname Forename(s) Candidate signature I declare this is my own work. AS BIOLOGY Paper 1 Monday 1 3 May 2024 Morning Time allowed: 1 hour 3 0 minutes Materials For this paper you must have: • a ruler with millimetre measurements • a scientific calculator. Instructions • Use black ink or black ball-point pen. • Fill in the boxes at the top of this page. • Answer all questions. • You must answer the questions in the spaces provided. Do not write outside the box around each page or on blank pages. • If you need extra space for your answer(s), use the lined pages at the end of this book. Write the question number against your answer(s). • Show all your working. • Do all rough work in this book. Cross through any work you do not want to be marked. For Examiner's Use Question Mark 1 2 3 4 5 6 7 8 9 T O T A L Information • The marks for the questions are shown in brackets. • The maximum mark for this paper is 75. AQA C Please write clearly in block capitals. Centre number Candidate number Surname Forename(s) Candidate signature I declare this is my own work. AS BIOLOGY Paper 1 Monday 1 3 May 2024 Morning Time allowed: 1 hour 3 0 minutes Materials For this paper you must have: • a ruler with millimetre measurements • a scientific calculator. Instructions • Use black ink or black ball-point pen. • Fill in the boxes at the top of this page. • Answer all questions. • You must answer the questions in the spaces provided. Do not write outside the box around each page or on blank pages. • If you need extra space for your answer(s), use the lined pages at the end of this book. Write the question number against your answer(s). • Show all your working. • Do all rough work in this book. Cross through any work you do not want to be marked. For Examiner's Use Question Mark 1 2 3 4 5 6 7 8 9 T O T A L Information • The marks for the questions are shown in brackets. • The maximum mark for this paper is 75.

  2. Page 2

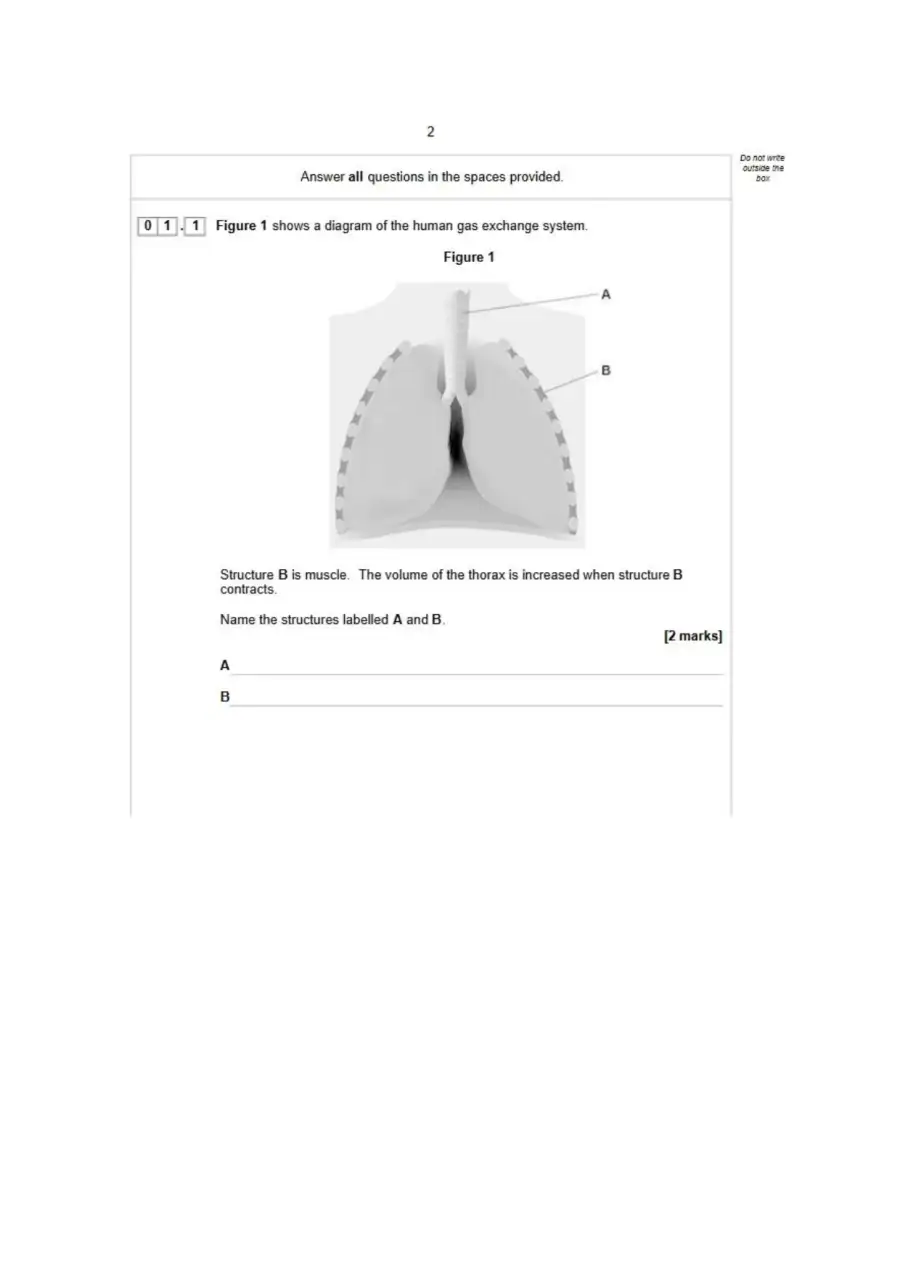

    Read page 2 as text

    2 D o not write . „ . . . , , . outsASeihe Answer all questions in the spaces provided. jrax 1 Figure 1 shows a diagram of the human gas exchange system. Figure 1 Structure B is muscle. The volume of the thorax is increased when structure B contracts. Name the structures labelled A and B. [2 marks] A B 2 D o not write . „ . . . , , . outsASeihe Answer all questions in the spaces provided. jrax 1 Figure 1 shows a diagram of the human gas exchange system. Figure 1 Structure B is muscle. The volume of the thorax is increased when structure B contracts. Name the structures labelled A and B. [2 marks] A B

  3. Page 3

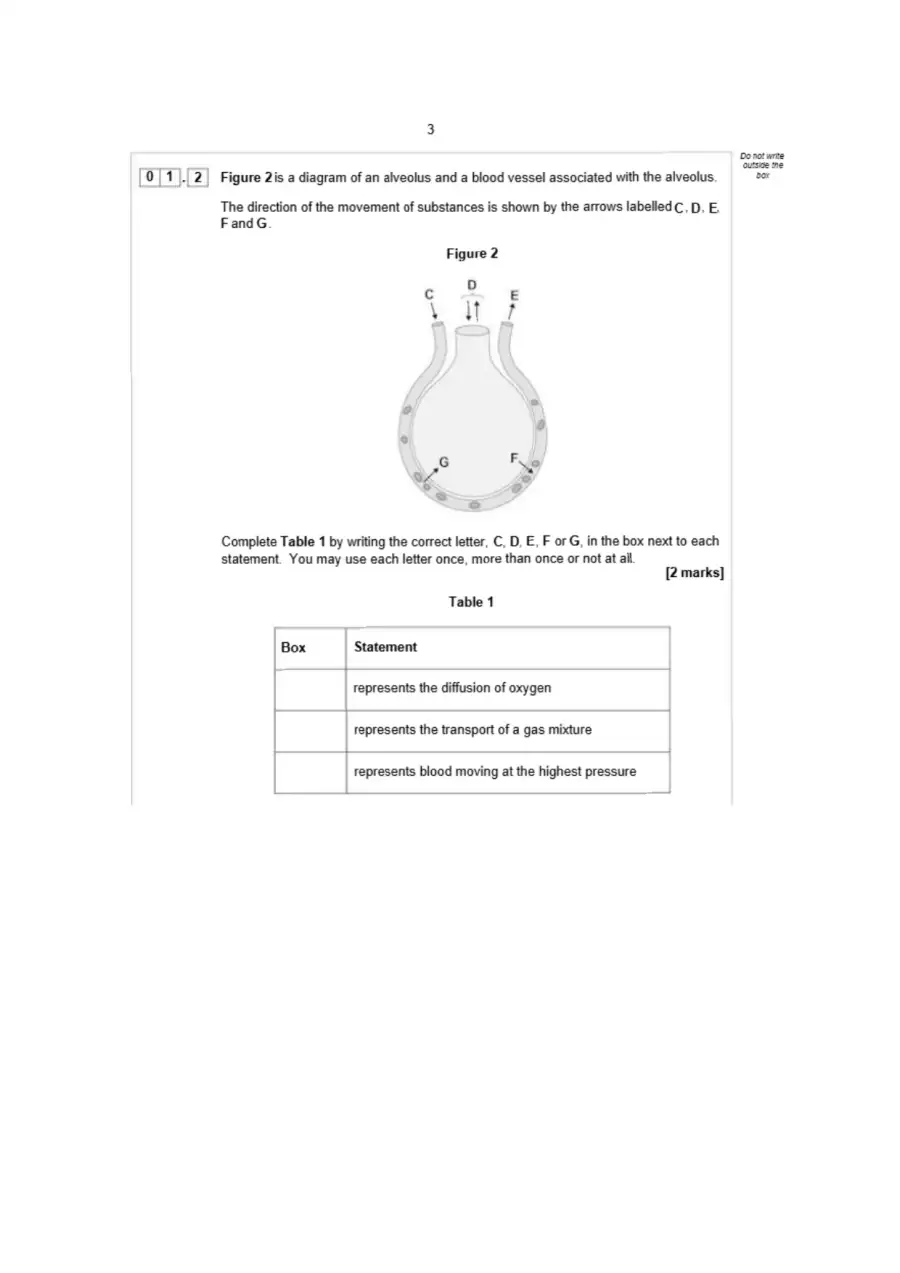

    Read page 3 as text

    3 Do no.* wire ob'.'sicte lie iox 0 1 . | 2 Figure 2 is a diagram of an alveolus and a blood vessel associated with the alveolus. The direction of the movement of substances is shown by the arrows labelled C- D E F and G . Figure 2 Complete Table 1 by writing the correct letter, C. D E, F orG. in the box next to each statement. You may use each letter once, more than once or not at all. [2 marks] Table 1 Box Statement represents the diffusion of oxygen represents the transport of a gas mixture represents blood moving at the highest pressure 3 Do nof wrte OLCs.de ihe fiox 0 1 . 2 Figure 2 is a diagram of an alveolus and a blood vessel associated with the alveolus. The direction of the movement of substances is shown by the arrows labelled C, D E F and G . Figure 2 Complete Table 1 by writing the correct letter, C, D. E, F orG. in the box next to each statement. You may use each letter once, more than once or not at all. [2 marks] Table 1 Box Statement represents the diffusion of oxygen represents the transport of a gas mixture represents blood moving at the highest pressure

  4. Page 4

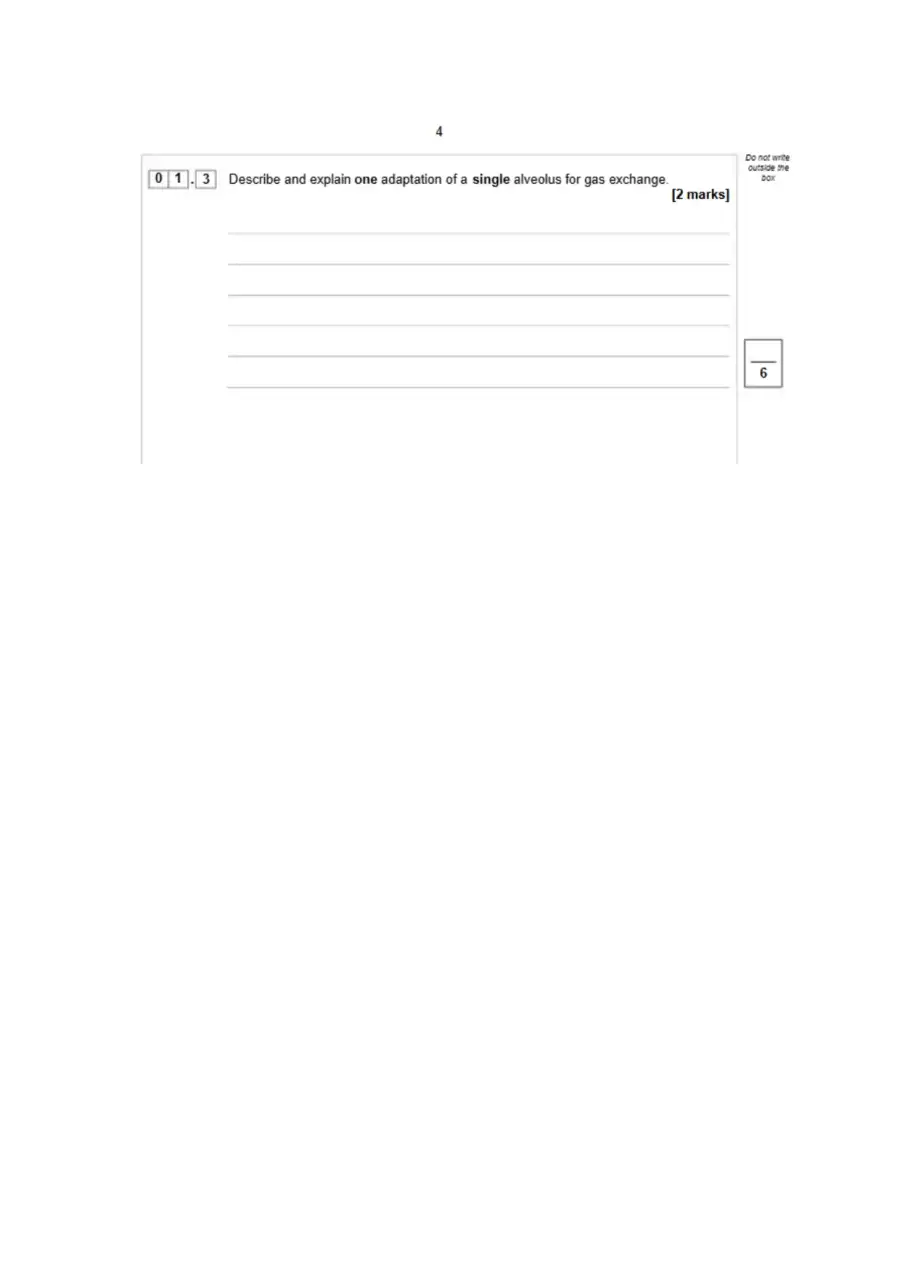

    Read page 4 as text

    4 Do .no: wrte OLtsiJe ile fiox 0 1 3 Describe and explain one adaptation of a single alveolus for gas exchange. [2 marks] 4 Do .no: wrte OLtsiJe ile fiox 0 1 3 Describe and explain one adaptation of a single alveolus for gas exchange. [2 marks]

  5. Page 5

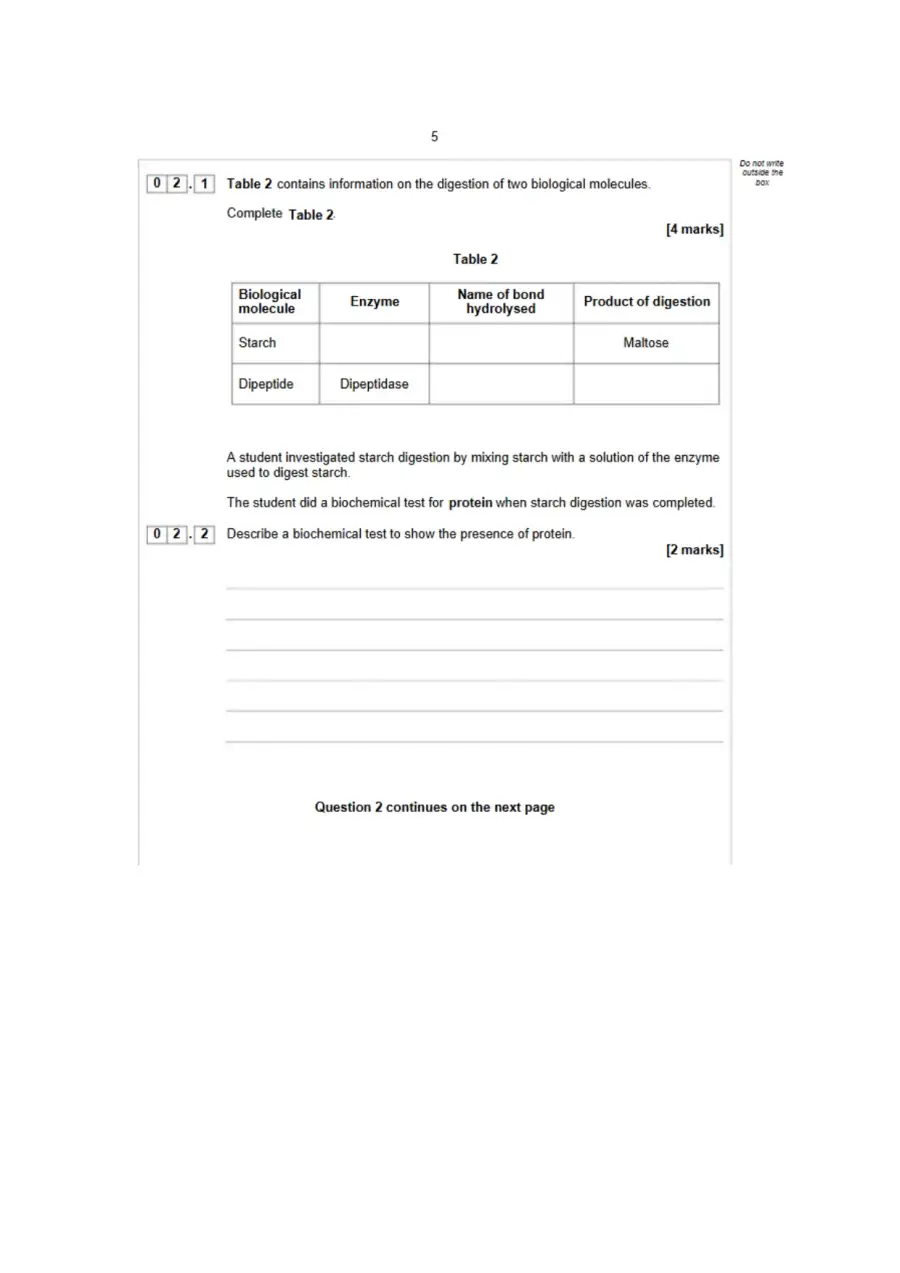

    Read page 5 as text

    5 De .no! wrte cufsdJa S e UOJf 0 2 . 1 Table 2 contains information on the digestion of tv/o biological molecules. Complete Table 2 [4 marks] Table 2 Biological molecule Enzyme Name of bond hydrolysed Product of digestion Starch Maltose Dipeptide Dipeptidase A student investigated starch digestion by mixing starch with a solution of the enzyme used to digest starch. The student did a biochemical test for protein when starch digestion was completed. 0 2 .[ 2 Describe a biochemical test to show the presence of protein. [2 marks] Question 2 continues on the next page 5 De .no! wrte cufsdJa S e UOJf 0 2 . 1 Table 2 contains information on the digestion of tv/o biological molecules. Complete Table 2 [4 marks] Table 2 Biological molecule Enzyme Name of bond hydrolysed Product of digestion Starch Maltose Dipeptide Dipeptidase A student investigated starch digestion by mixing starch with a solution of the enzyme used to digest starch. The student did a biochemical test for protein when starch digestion was completed. 0 2 .[ 2 Describe a biochemical test to show the presence of protein. [2 marks] Question 2 continues on the next page

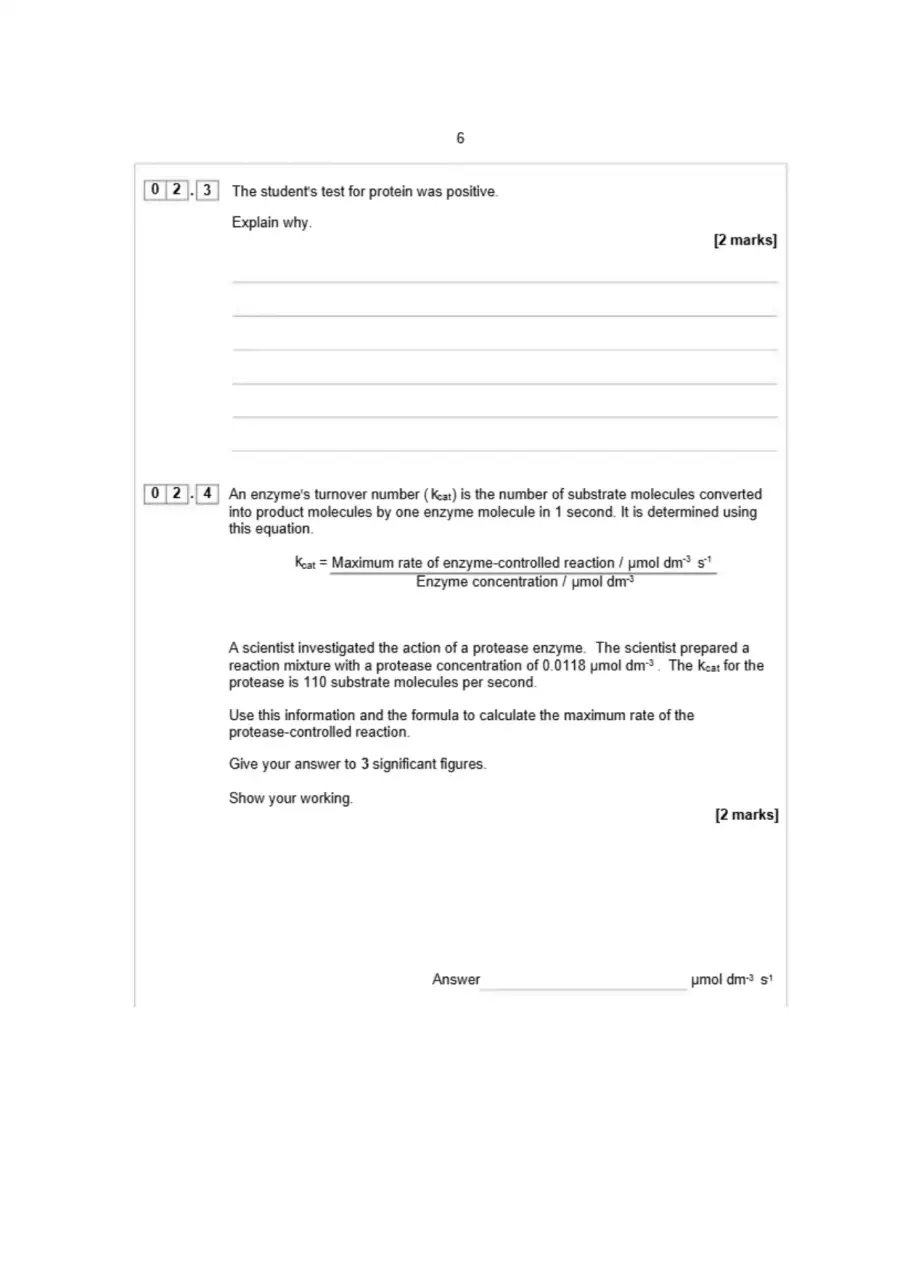

  6. Page 6
    Read page 6 as text

    6 0 2 . 3 The student's test for protein was positive. Explain why. [2 marks] 0 2 . 4 An enzyme's turnover number (Kat) is the number of substrate molecules converted into product molecules by one enzyme molecule in 1 second. It is determined using this equation. Kat = Maximum rate of enzyme-controlled reaction I pmol dm" 3 s’" Enzyme concentration ; pmol dm’ 3 A scientist investigated the action of a protease enzyme. The scientist prepared a reaction mixture with a protease concentration of 0.0118 pmol dm* 3 . The kcatforthe protease is 110 substrate molecules per second. Use this information and the formula to calculate the maximum rate of the protease-controlled reaction. Give your answer to 3 significant figures. Show your working. [2 marks] Answer pmol dor 3 s 1 6 0 2 . 3 The student's test for protein was positive. Explain why. [2 marks] 0 2 . 4 An enzyme's turnover number (Kat) is the number of substrate molecules converted into product molecules by one enzyme molecule in 1 second. It is determined using this equation. Kat = Maximum rate of enzyme-controlled reaction I pmol dm" 3 s’" Enzyme concentration ; pmol dm’ 3 A scientist investigated the action of a protease enzyme. The scientist prepared a reaction mixture with a protease concentration of 0.0118 pmol dm* 3 . The kcatforthe protease is 110 substrate molecules per second. Use this information and the formula to calculate the maximum rate of the protease-controlled reaction. Give your answer to 3 significant figures. Show your working. [2 marks] Answer pmol dor 3 s 1

  7. Page 7

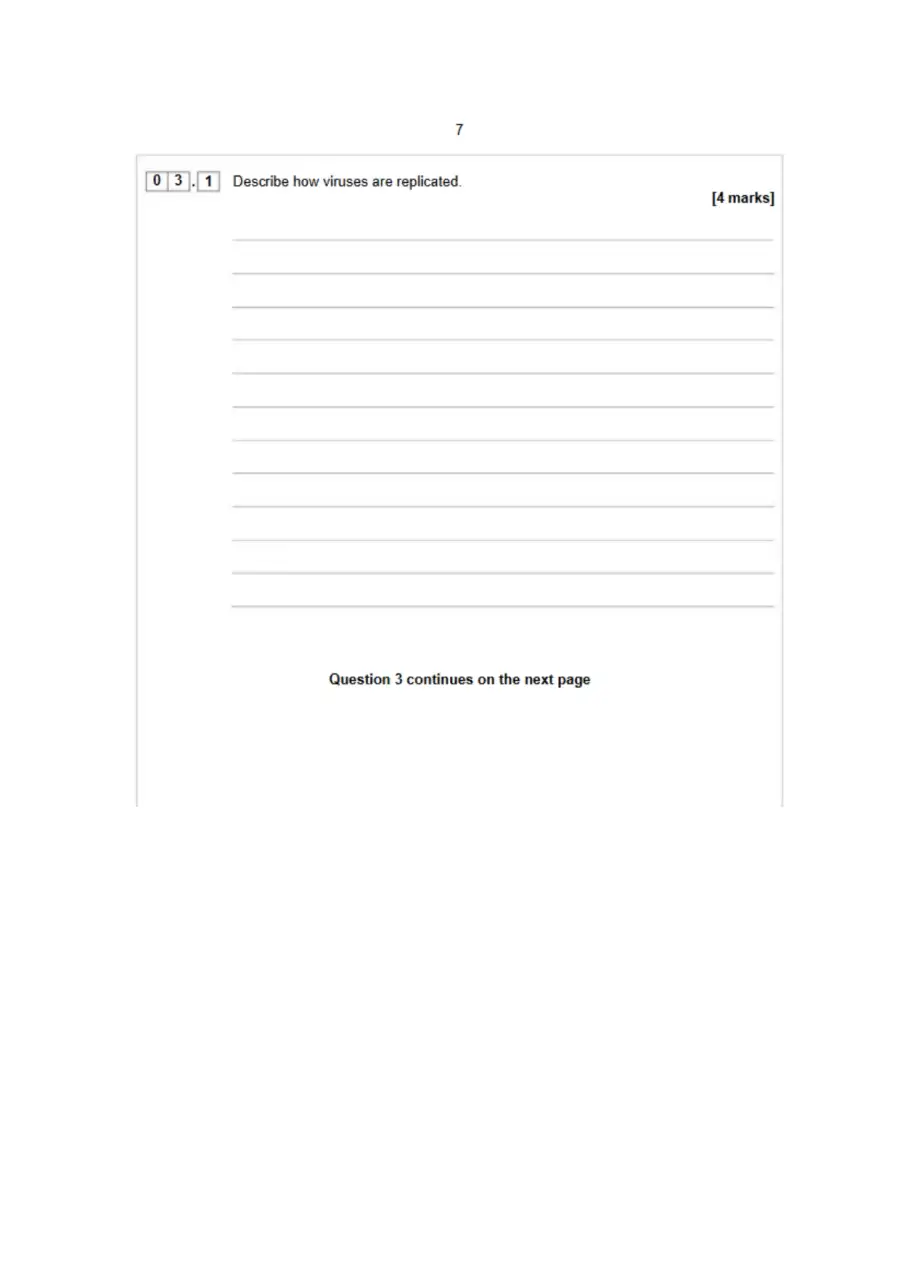

    Read page 7 as text

    7 0 3 . 1 Describe how viruses are replicated. [4 marks] Question 3 continues on the next page 7 0 3 . 1 Describe how viruses are replicated. [4 marks] Question 3 continues on the next page

  8. Page 8

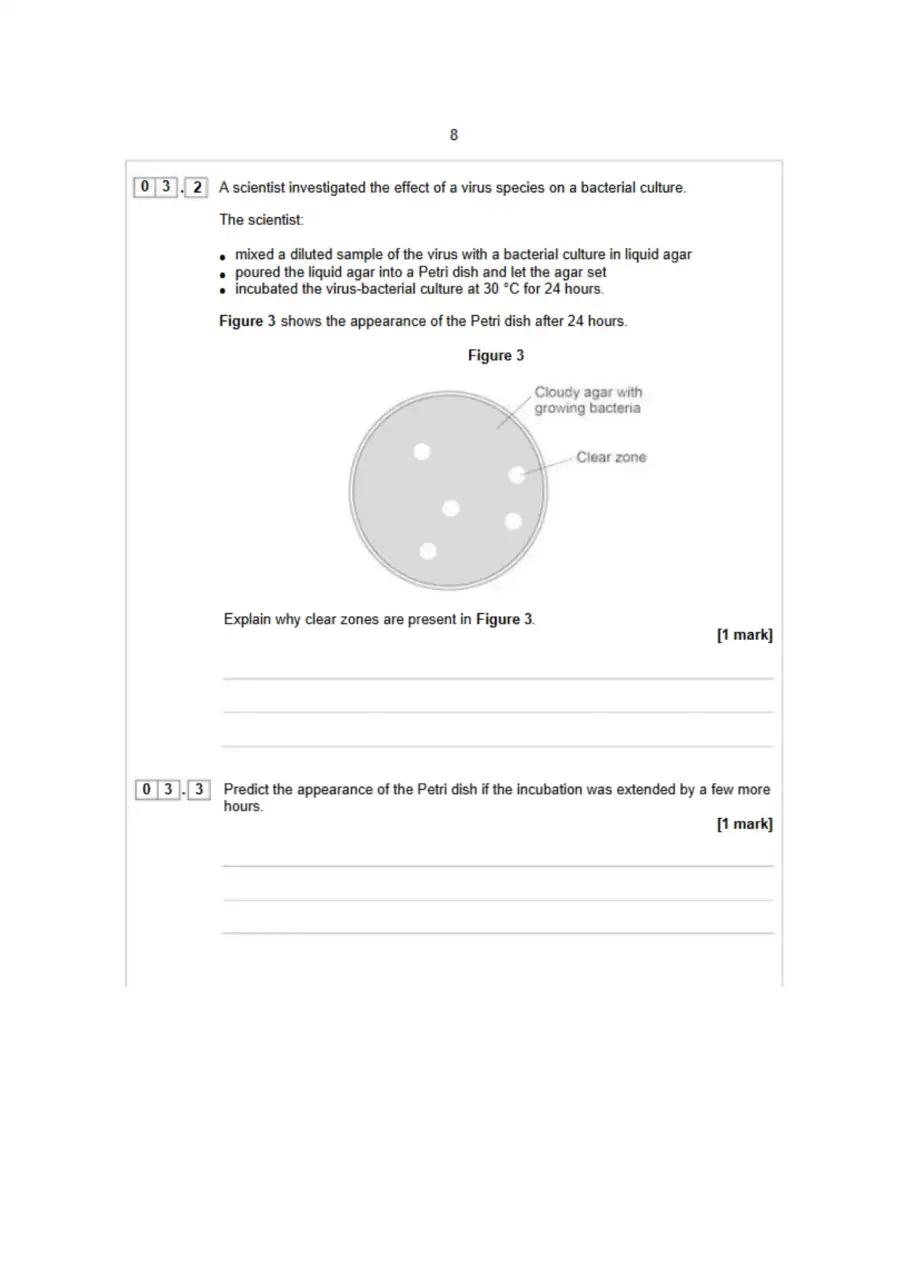

    Read page 8 as text

    8 0 3 . 2 A scientist investigated the effect of a virus species on a bacterial culture. The scientist: mixed a diluted sample of the virus with a bacterial culture in liquid agar poured the liquid agar into a Petri dish and let the agar set incubated the virus-bacterial culture at 30 °C for 24 hours. Figure 3 shows the appearance of the Petri dish after 24 hours. Figure 3 Cloudy agar with growing bacteria Clear zone Explain why clear zones are present in Figure 3. [1 mark] 0 3 . 3 Predict the appearance of the Petri dish if the incubation was extended by a few more hours. [1 mark] 8 0 3 . 2 A scientist investigated the effect of a virus species on a bacterial culture. The scientist: mixed a diluted sample of the virus with a bacterial culture in liquid agar poured the liquid agar into a Petri dish and let the agar set incubated the virus-bacterial culture at 30 °C for 24 hours. Figure 3 shows the appearance of the Petri dish after 24 hours. Figure 3 Cloudy agar with growing bacteria Clear zone Explain why clear zones are present in Figure 3. [1 mark] 0 3 . 3 Predict the appearance of the Petri dish if the incubation was extended by a few more hours. [1 mark]

  9. Page 9

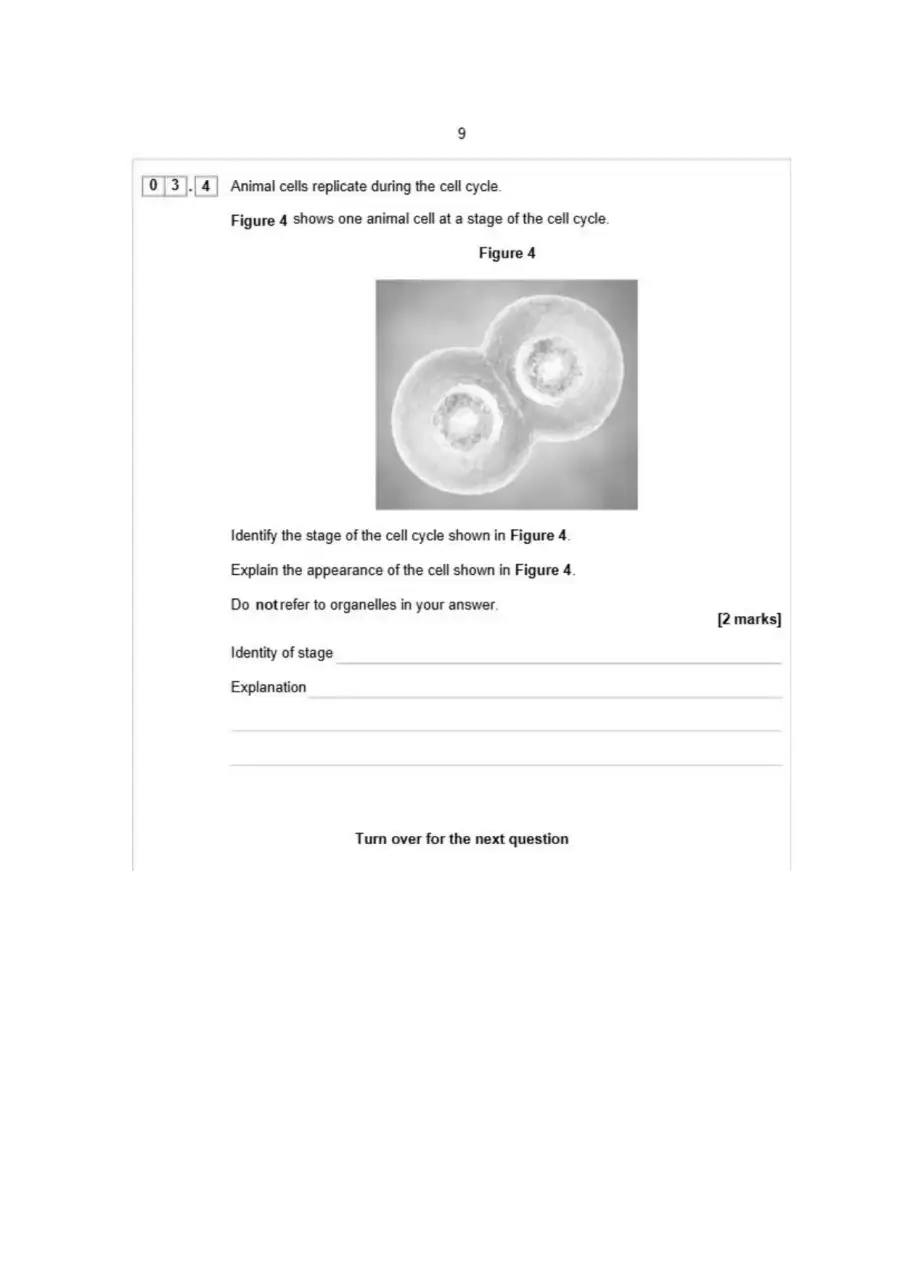

    Read page 9 as text

    9 0 3 . 4 Animal cells replicate during the cell cycle. Figure 4 shows one animal cell at a stage of the cell cycle. Figure 4 Identify the stage of the cell cycle shown in Figure 4. Explain the appearance of the cell shown in Figure 4 Do not refer to organelles in your answer. [2 marks] Identity of stage Explanation Turn over for the next question 9 0 3 . 4 Animal cells replicate during the cell cycle. Figure 4 shows one animal cell at a stage of the cell cycle. Figure 4 Identify the stage of the cell cycle shown in Figure 4. Explain the appearance of the cell shown in Figure 4 Do not refer to organelles in your answer. [2 marks] Identity of stage Explanation Turn over for the next question

  10. Page 10

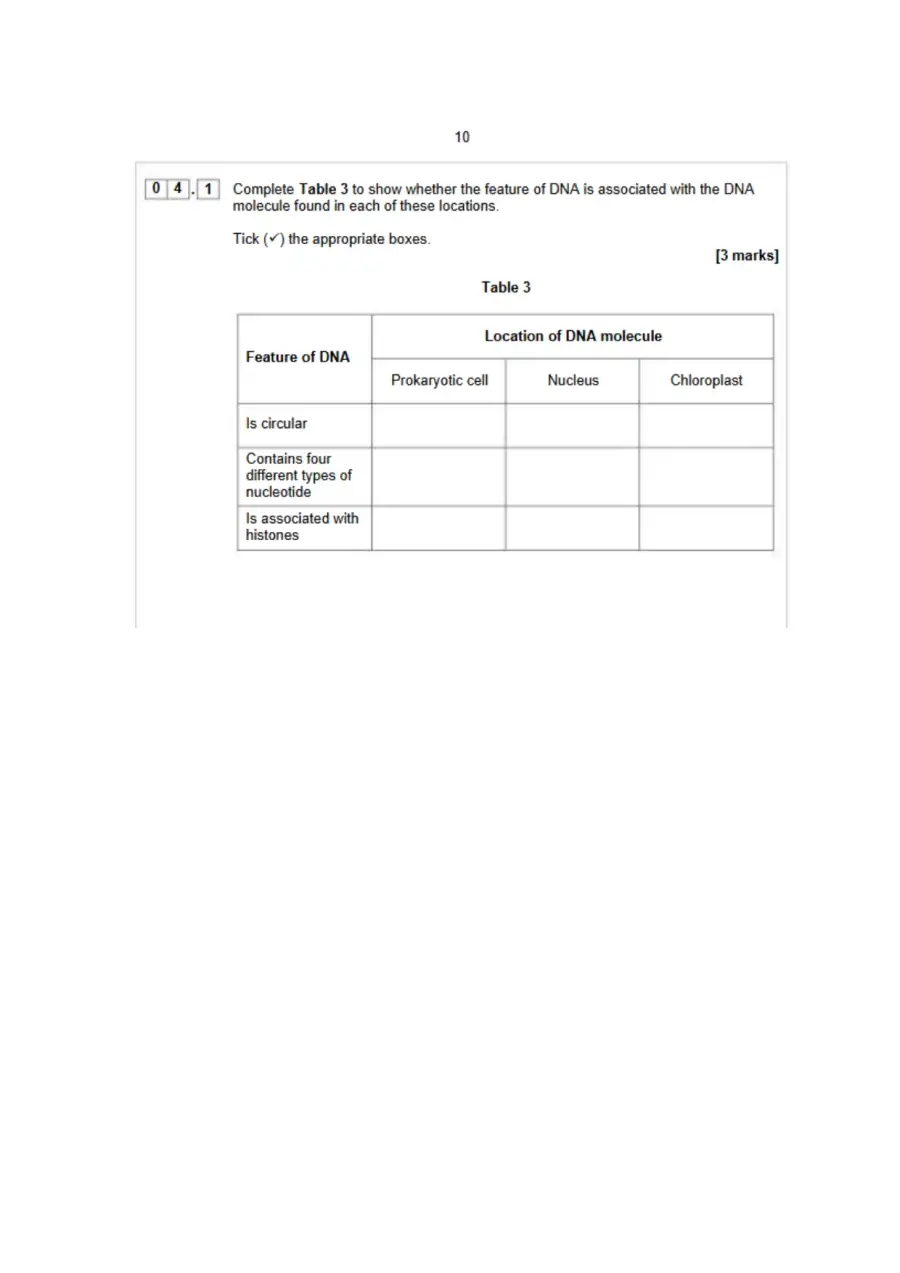

    Read page 10 as text

    10 0 4 . 1 Complete Table 3 to show whether the feature of DNA is associated with the DNA molecule found in each of these locations. Tick the appropriate boxes. [3 marks] Table 3 Feature of DNA Location of DNA molecule Prokaryotic cell Nucleus Chloroplast Is circular Contains four different types of nucleotide Is associated with histones 10 0 4 . 1 Complete Table 3 to show whether the feature of DNA is associated with the DNA molecule found in each of these locations. Tick the appropriate boxes. [3 marks] Table 3 Feature of DNA Location of DNA molecule Prokaryotic cell Nucleus Chloroplast Is circular Contains four different types of nucleotide Is associated with histones

22 more pages in the full document
