Exploring MATLAB Plotting: Line, Color, and Marker Specifications with a Quadratic Function Graph

Preview 2 of 3 pages

See the first 2 pages exactly as they appear in the document.

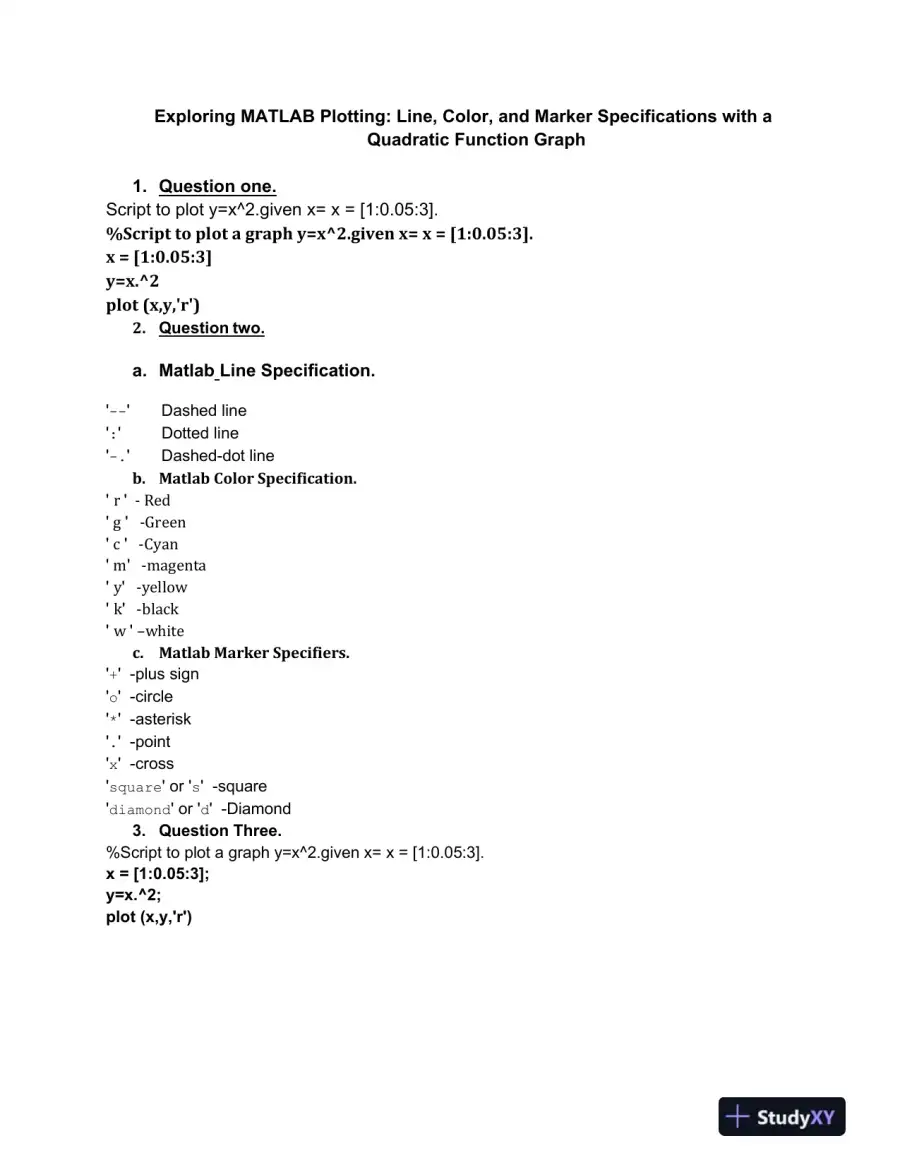

Page 1
Read page 1 as text
Exploring MATLAB Plotting: Line, Color, and Marker Specifications with a Quadratic Function Graph 1. Question one. Script to plot y=x^2.given x= x = [1:0.05:3]. %Script to plot a graph y=x^2.given x= x = [1:0.05:3]. x = [1:0.05:3] y=x.^2 plot ( x,y,'r') 2. Question two. a. Matlab Line Specification . ' -- ' Dashed line ' : ' Dotted line ' - . ' Dashed - dot line b. Matlab Color Specification. ' r ' - Red ' g ' - Green ' c ' - Cyan ' m ' - magenta ' y ' - yellow ' k ' - black ' w ' – white c. Matlab Marker Specifiers . ' + ' - plus sign ' o ' - circle ' * ' - asterisk ' . ' - point ' x ' - cross ' square ' or ' s ' - square ' diamond ' or ' d ' - Diamond 3. Question Three. %Script to plot a graph y=x^2.given x= x = [1:0.05:3]. x = [1:0.05:3]; y=x.^2; plot (x,y,'r')
