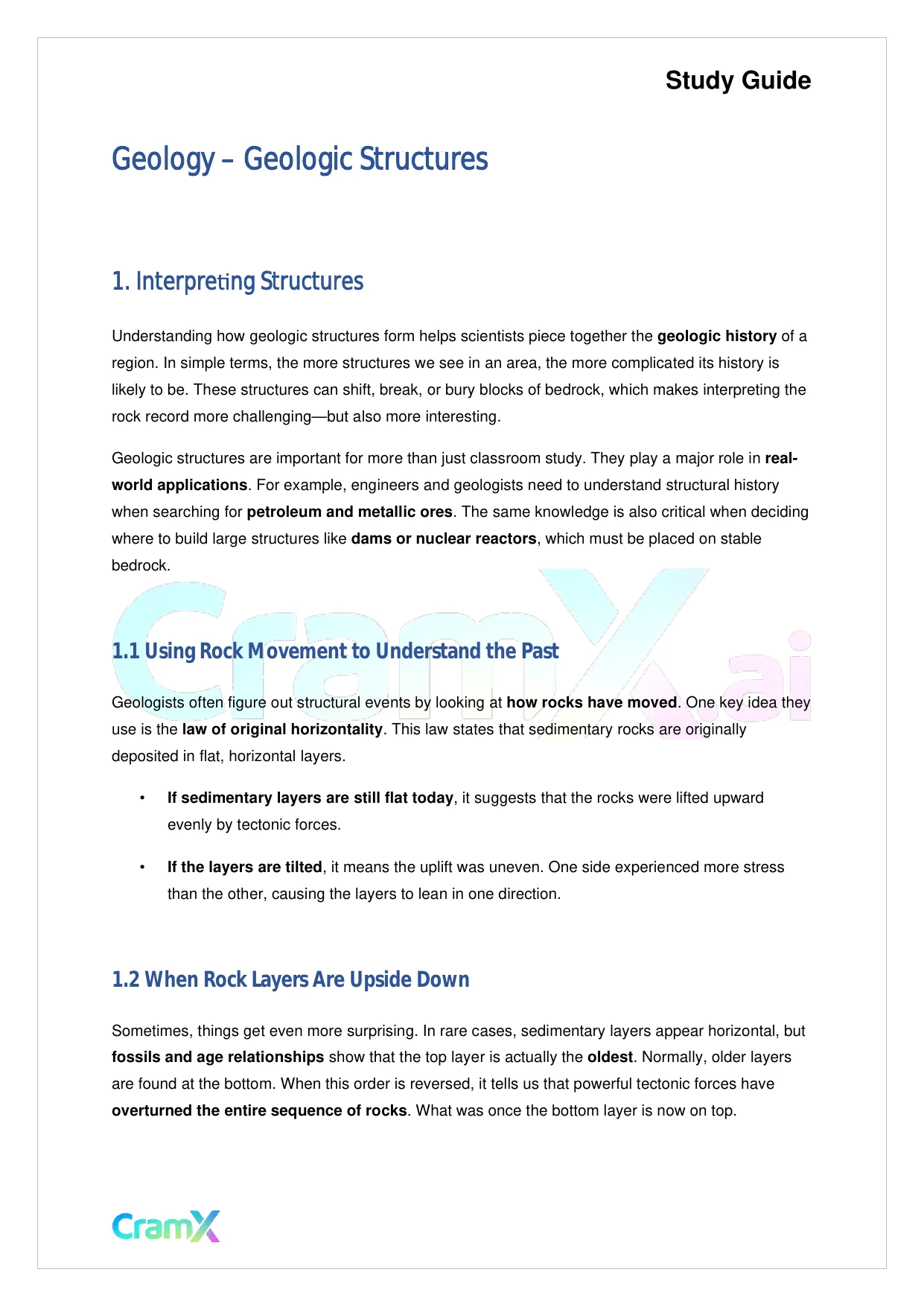

Study GuideGeology–Geologic Structures1. InterpreƟng StructuresUnderstanding how geologic structures form helps scientists piece together thegeologic historyof aregion. In simple terms, the more structures we see in an area, the more complicated its history islikely to be. These structures can shift, break, or bury blocks of bedrock, which makes interpreting therock record more challenging—but also more interesting.Geologic structures are important for more than just classroom study. They play a major role inreal-world applications. For example, engineers and geologists need to understand structural historywhen searching forpetroleum and metallic ores. The same knowledge is also critical when decidingwhere to build large structures likedams or nuclear reactors, which must be placed on stablebedrock.1.1 Using Rock Movement to Understand the PastGeologists often figure out structural events by looking athow rocks have moved. One key idea theyuse is thelaw of original horizontality. This law states that sedimentary rocks are originallydeposited in flat, horizontal layers.•If sedimentary layers are still flat today, it suggests that the rockswere lifted upwardevenly by tectonic forces.•If the layers are tilted, it means the uplift was uneven. One side experienced more stressthan the other, causing the layers to lean in one direction.1.2 When Rock Layers Are Upside DownSometimes, things get even more surprising. In rare cases, sedimentary layers appear horizontal, butfossils and age relationshipsshow that the top layer is actually theoldest. Normally, older layersare found at the bottom. When this order is reversed, it tells us that powerful tectonic forces haveoverturned the entire sequence of rocks. What was once the bottom layer is now on top.

Geology - Geologic Structures - Page 2 preview image

Loading page ...

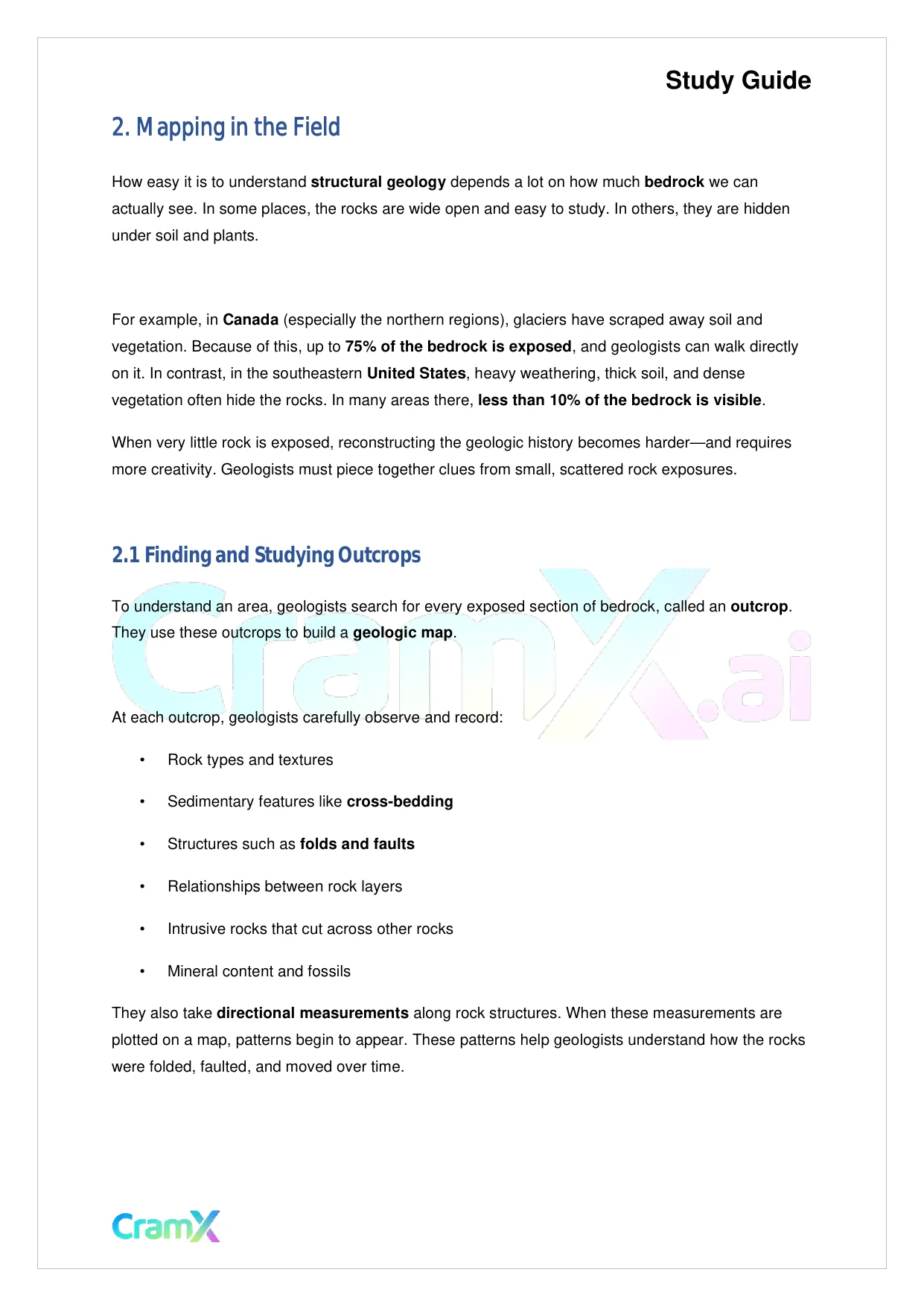

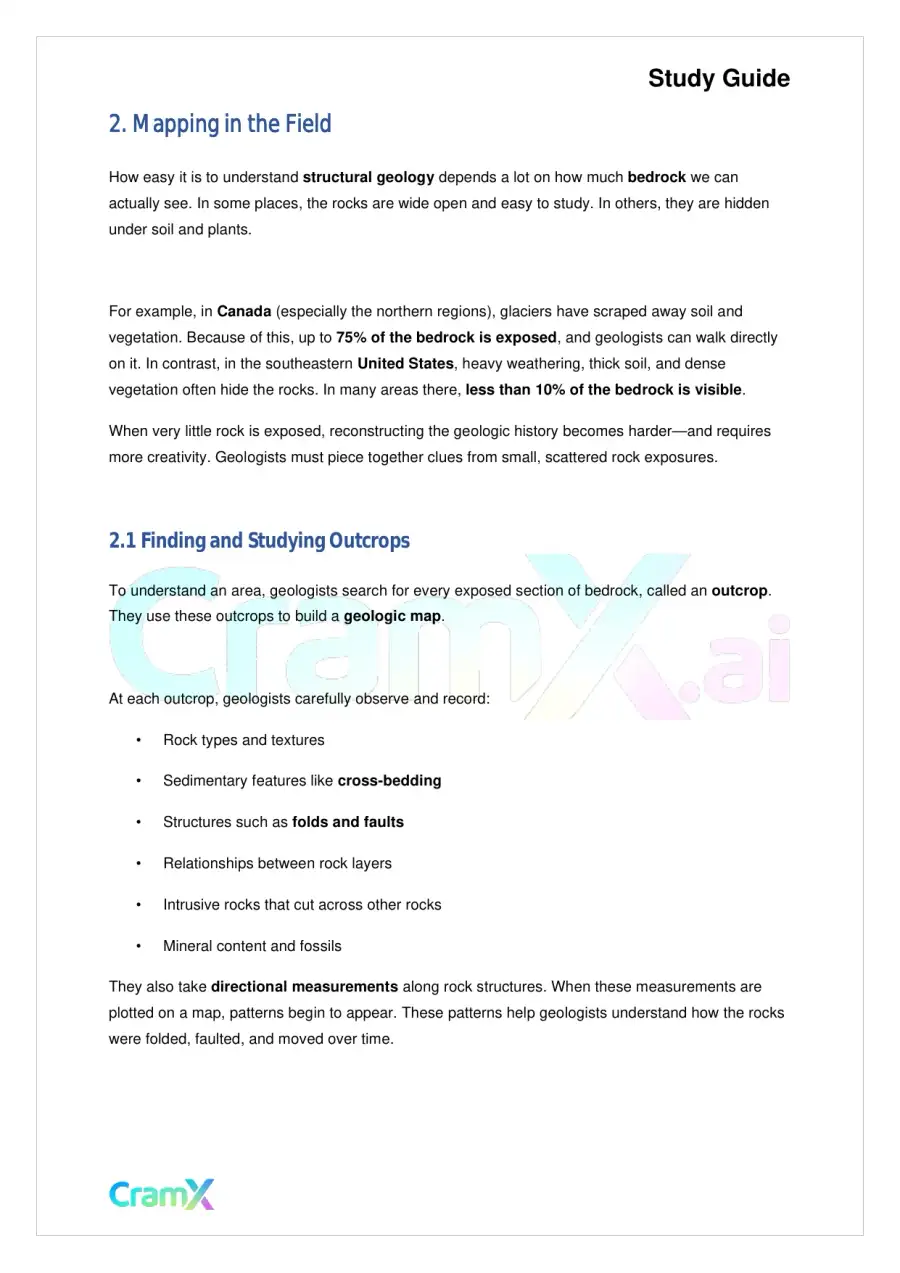

Study Guide2. Mapping in the FieldHow easy it is to understandstructural geologydepends a lot on how muchbedrockwe canactually see. In some places, the rocks are wide open and easy to study. In others, they are hiddenunder soil and plants.For example, inCanada(especially the northern regions), glaciers have scraped away soil andvegetation. Because of this, up to75% of the bedrock is exposed, and geologists can walk directlyon it. In contrast, in the southeasternUnited States, heavy weathering, thick soil, and densevegetation often hide the rocks. In many areas there,less than 10% of the bedrock is visible.When very little rock is exposed, reconstructing the geologic history becomes harder—and requiresmore creativity. Geologists must piece together clues from small, scattered rock exposures.2.1 Finding and Studying OutcropsTo understand an area, geologists search for every exposed section of bedrock, called anoutcrop.They use these outcrops to build ageologic map.At each outcrop, geologists carefully observe and record:•Rock types and textures•Sedimentary features likecross-bedding•Structures such asfolds and faults•Relationships between rock layers•Intrusive rocks that cut across other rocks•Mineral content and fossilsThey also takedirectional measurementsalong rock structures. When these measurements areplotted on a map, patterns begin to appear. These patterns help geologists understand how the rockswere folded, faulted, and moved over time.

Geology - Geologic Structures - Page 3 preview image

Loading page ...

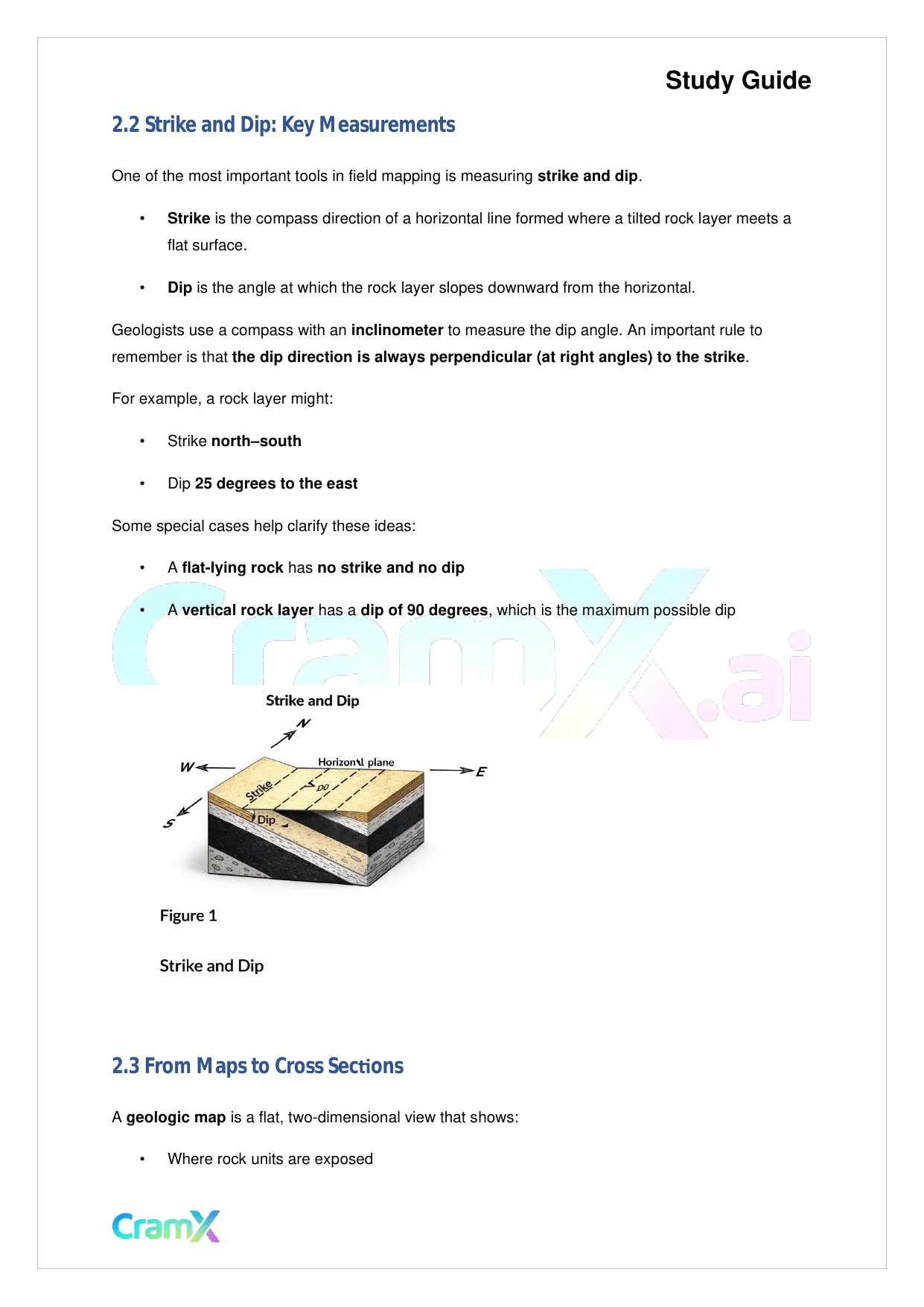

Study Guide2.2 Strike and Dip: Key MeasurementsOne of the most important tools in field mapping is measuringstrike and dip.•Strikeis the compass direction of a horizontal line formed where a tilted rock layer meets aflat surface.•Dipis the angle at which the rock layer slopes downward from the horizontal.Geologists use a compass with aninclinometerto measure the dip angle. An important rule toremember is thatthe dip direction is always perpendicular (at right angles) to the strike.For example, a rock layer might:•Strikenorth–south•Dip25 degrees to the eastSome special cases help clarify these ideas:•Aflat-lying rockhasno strike and no dip•Avertical rock layerhas adip of 90 degrees, which is the maximum possible dip2.3 From Maps to Cross SecƟonsAgeologic mapis a flat, two-dimensional view that shows:•Where rock units are exposed

Geology - Geologic Structures - Page 4 preview image

Loading page ...

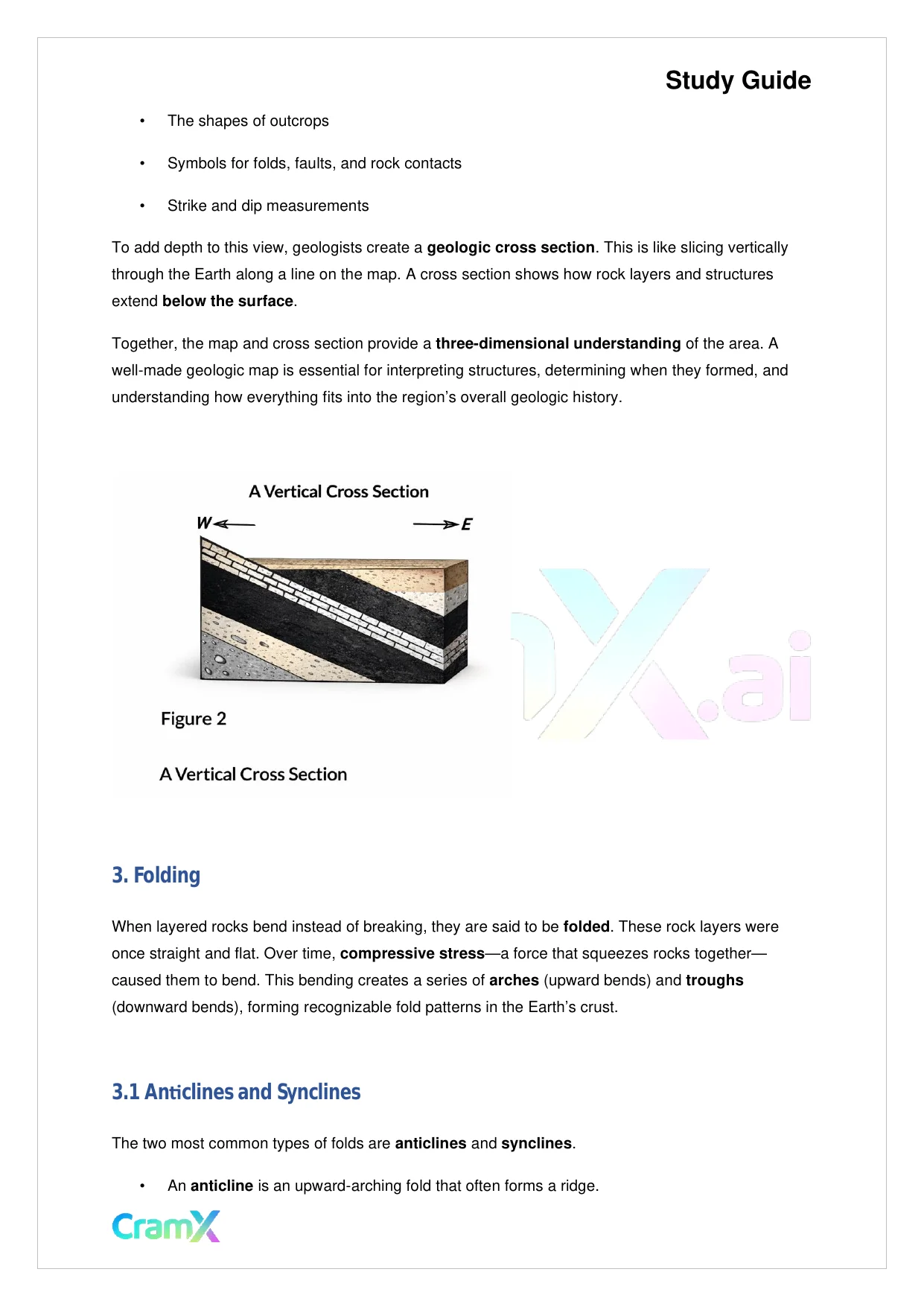

Study Guide•The shapes of outcrops•Symbols for folds, faults, and rock contacts•Strike and dip measurementsTo add depth to this view, geologists create ageologic cross section. This is like slicing verticallythrough the Earth along a line on the map. A cross section shows how rock layers and structuresextendbelow the surface.Together, the map and cross section provide athree-dimensional understandingof the area. Awell-made geologic map is essential for interpreting structures, determining when they formed, andunderstanding how everything fits into the region’s overall geologic history.3. FoldingWhen layered rocks bend instead of breaking, they are said to befolded. These rock layers wereonce straight and flat. Over time,compressive stress—a force that squeezes rocks together—caused them to bend. This bending creates a series ofarches(upward bends) andtroughs(downward bends), forming recognizable fold patterns in the Earth’s crust.3.1 AnƟclines and SynclinesThe two most common types of folds areanticlinesandsynclines.•Ananticlineis an upward-arching fold that often forms a ridge.

Geology - Geologic Structures - Page 5 preview image

Loading page ...

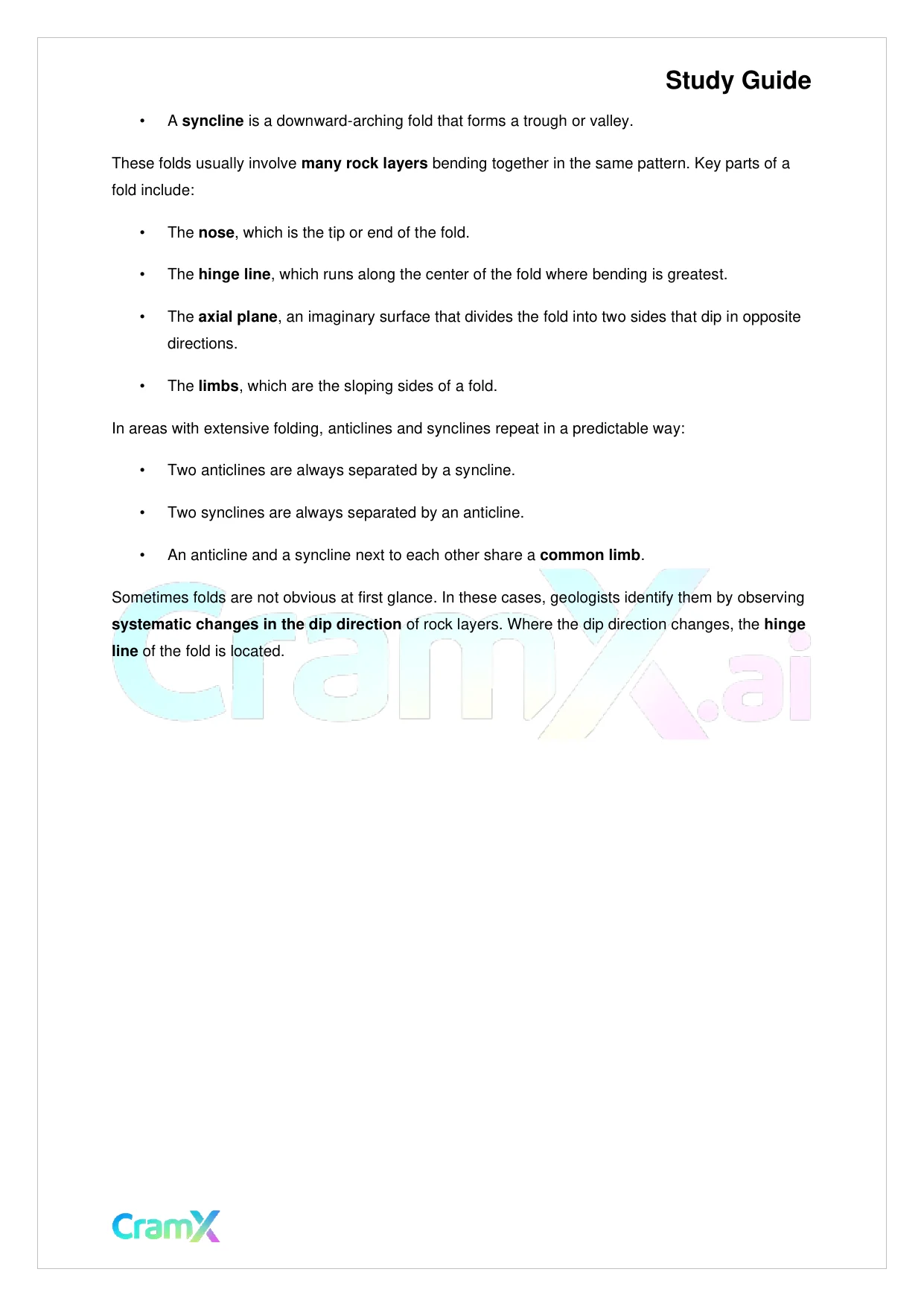

Study Guide•Asynclineis a downward-arching fold that forms a trough or valley.These folds usually involvemany rock layersbending together in the same pattern. Key parts of afold include:•Thenose, which is the tip or end of the fold.•Thehinge line, which runs along the center of the fold where bending is greatest.•Theaxial plane, an imaginary surface that divides the fold into two sides that dip in oppositedirections.•Thelimbs, which are the sloping sides of a fold.In areas with extensive folding, anticlines and synclines repeat in a predictable way:•Two anticlines are always separated by a syncline.•Two synclines are always separated by an anticline.•An anticline and a syncline next to each other share acommon limb.Sometimes folds are not obvious at first glance. In these cases, geologists identify them by observingsystematic changes in the dip directionof rock layers. Where the dip direction changes, thehingelineof the fold is located.

Geology - Geologic Structures - Page 6 preview image

Loading page ...

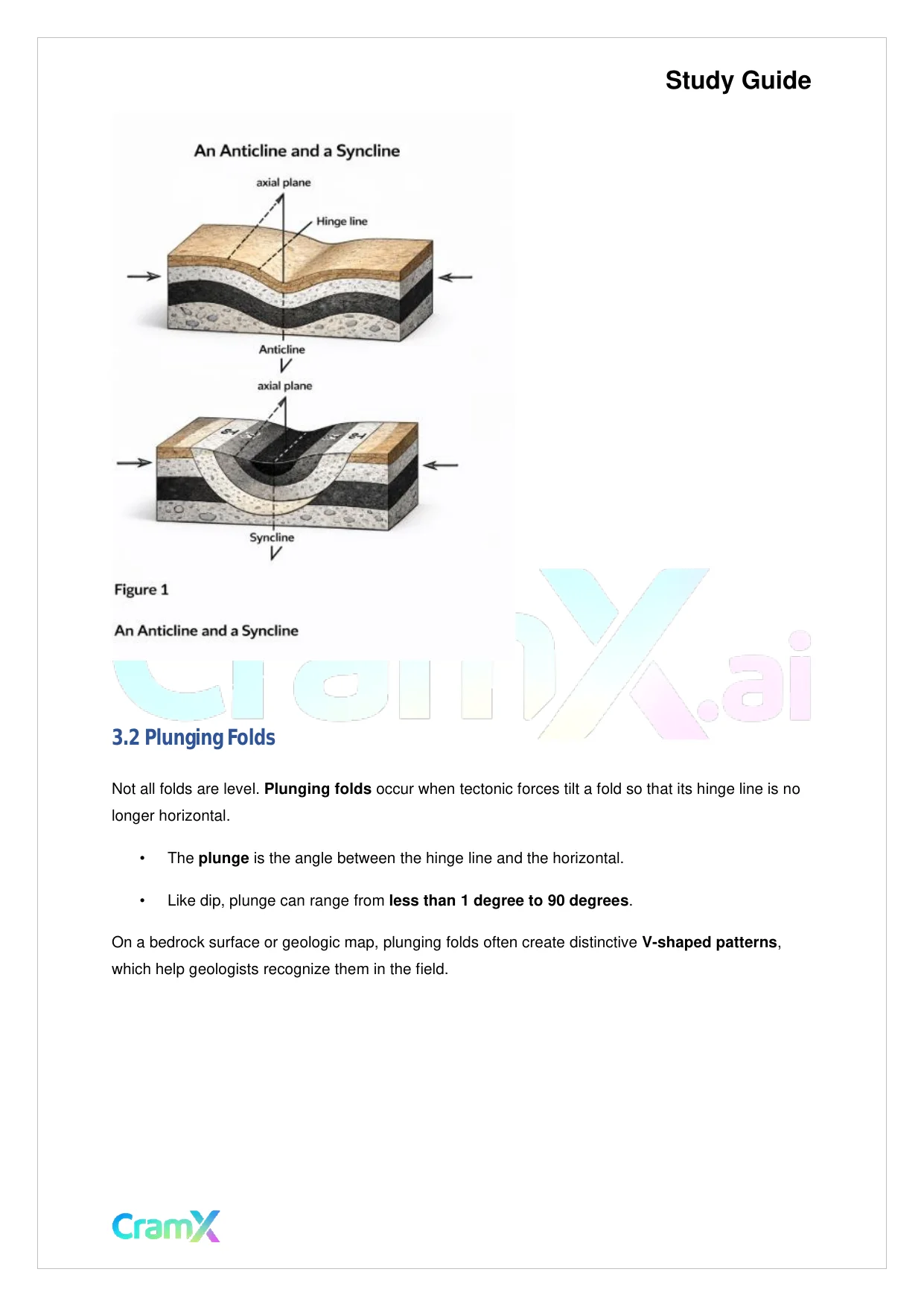

Study Guide3.2 PlungingFoldsNot all folds are level.Plunging foldsoccur when tectonic forces tilt a fold so that its hinge line is nolonger horizontal.•Theplungeis the angle between the hinge line and the horizontal.•Like dip, plunge can range fromless than 1 degree to 90 degrees.On a bedrock surface or geologic map, plunging folds often create distinctiveV-shaped patterns,which help geologists recognize them in the field.
