Build and troubleshooting Integration Challenge
- Information Technology
- 10 pages
- Shared June 2025
Networking Practice Exam: Configura y soluciona redes con routers y VLANs. Incluye direccionamiento IP detallado, subredes, interfaces y pruebas de conectividad para integración de sistemas.
Preview 3 of 10 pages
See the first 3 pages exactly as they appear in the document.

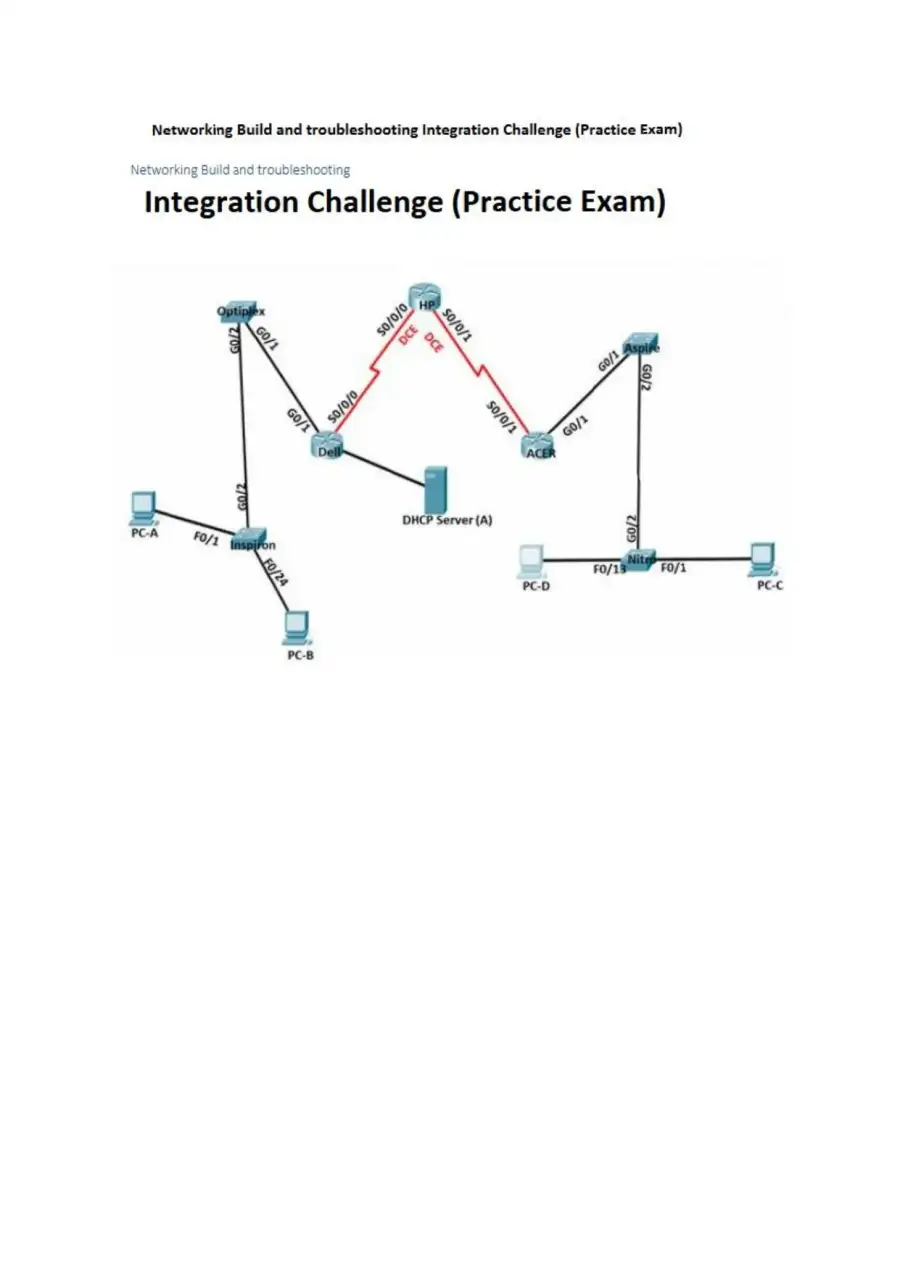

Page 1 Read page 1 as text
Networking Build and troubleshooting Integration Challenge (Practice Exam) Networking Build and troub eshooting Integration Challenge (Practice Exam) PCC PC B

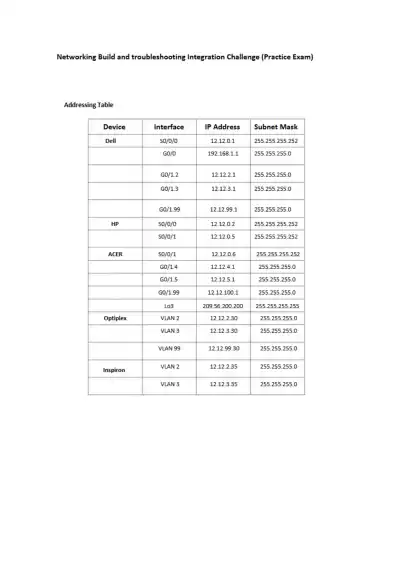

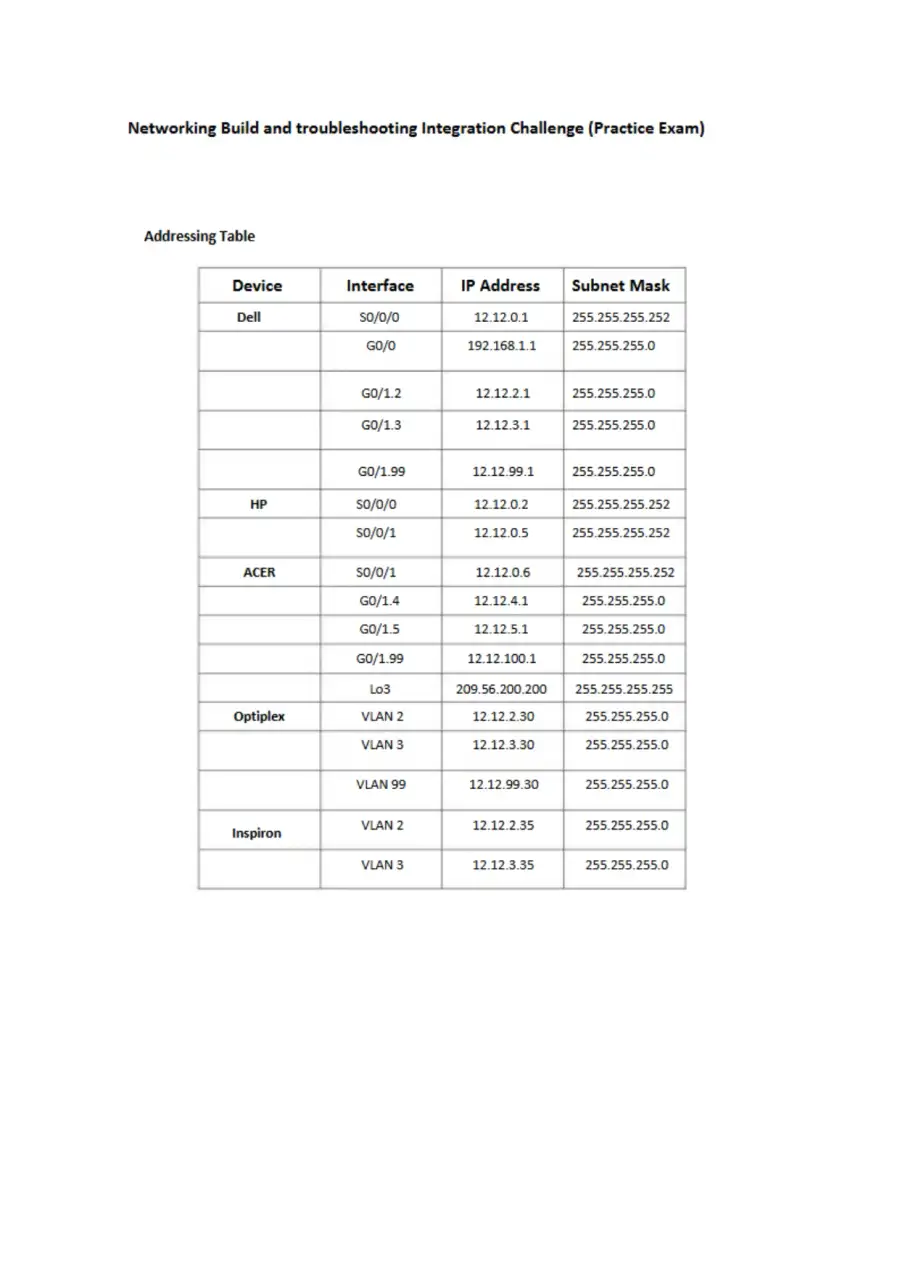

Page 2 Read page 2 as text
Networking Build and troubleshooting Integration Challenge (Practice Exam) Addressing Table Device Interface IP Address Subnet Mask Dell so/o/o 12.12.0.1 255.255.255.252 G0/0 192.168.1.1 255.255.255.0 GO/1.2 12.12.2.1 255.255.255.0 GO/1.3 12.12.3.1 255.255.255.0 GO/1.99 12.12.99.1 255.255.255.0 HP SO/O/O 12.12.0.2 255.255.255.252 S0/0/1 12.12.0.5 255.255.255.252 ACER S0/0/1 12.12.0.6 255.255.255.252 GO/1.4 12.12.4.1 255.255.255.0 GO/1.5 12.12.5.1 255.255.255.0 GO/1.99 12.12.100.1 255.255.255.0 Lo3 209.56.200.200 255.255.255.255 Optiplex VLAN 2 12.12.2.30 255.255.255.0 VLAN 3 12.12.3.30 255.255.255.0 VLAN 99 12.12.99.30 255.255.255.0 Inspiron VLAN 2 12.12.2.35 255.255.255.0 VLAN 3 12.12.3.35 255.255 255.0

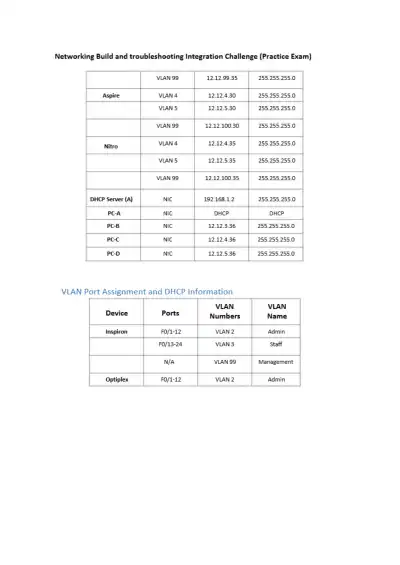

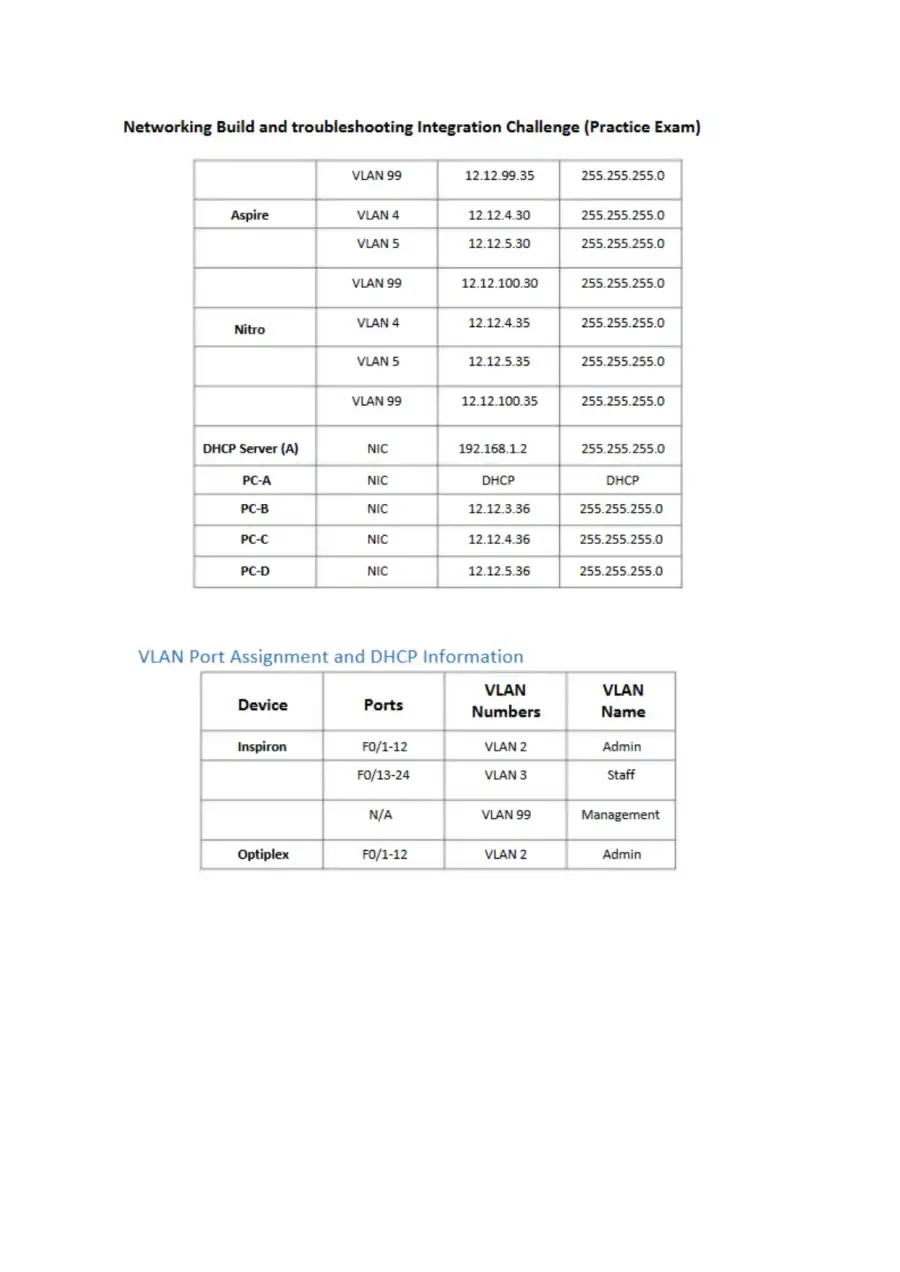

Page 3 Read page 3 as text
Networking Build and troubleshooting Integration Challenge (Practice Exam) VLAN 99 12.12.99.35 255.255.255.0 Aspire VLAN 4 12.12.4.30 255.255.255.0 VLAN 5 12.12.5.30 255.255.255.0 VLAN 99 12.12.100.30 255.255.255.0 Nitro VLAN 4 12.12.4.35 255.255.255.0 VLAN 5 12.12.5.35 255.255.255.0 VLAN 99 12.12.100.35 255. 255.255.0 DHCP Server (A) NIC 192.163.1.2 255.255.255.0 PC-A NIC DHCP DHCP PC-B NIC 12.12.3.36 255.255.255.0 PC-C NIC 12.12.4.36 255.255.255.0 1 PC-D 1 NIC 12.12.5.36 255.255.255.0 VLAN Port Assignment and DHCP Information Device Ports VLAN Numbers VLAN Name Inspiron F0/1-12 VLAN 2 Admin F0/13-24 VLAN 3 Staff N/A VLAN 99 Management Optiplex F0/1-12 VLAN 2 Admin
7 more pages in the full document
