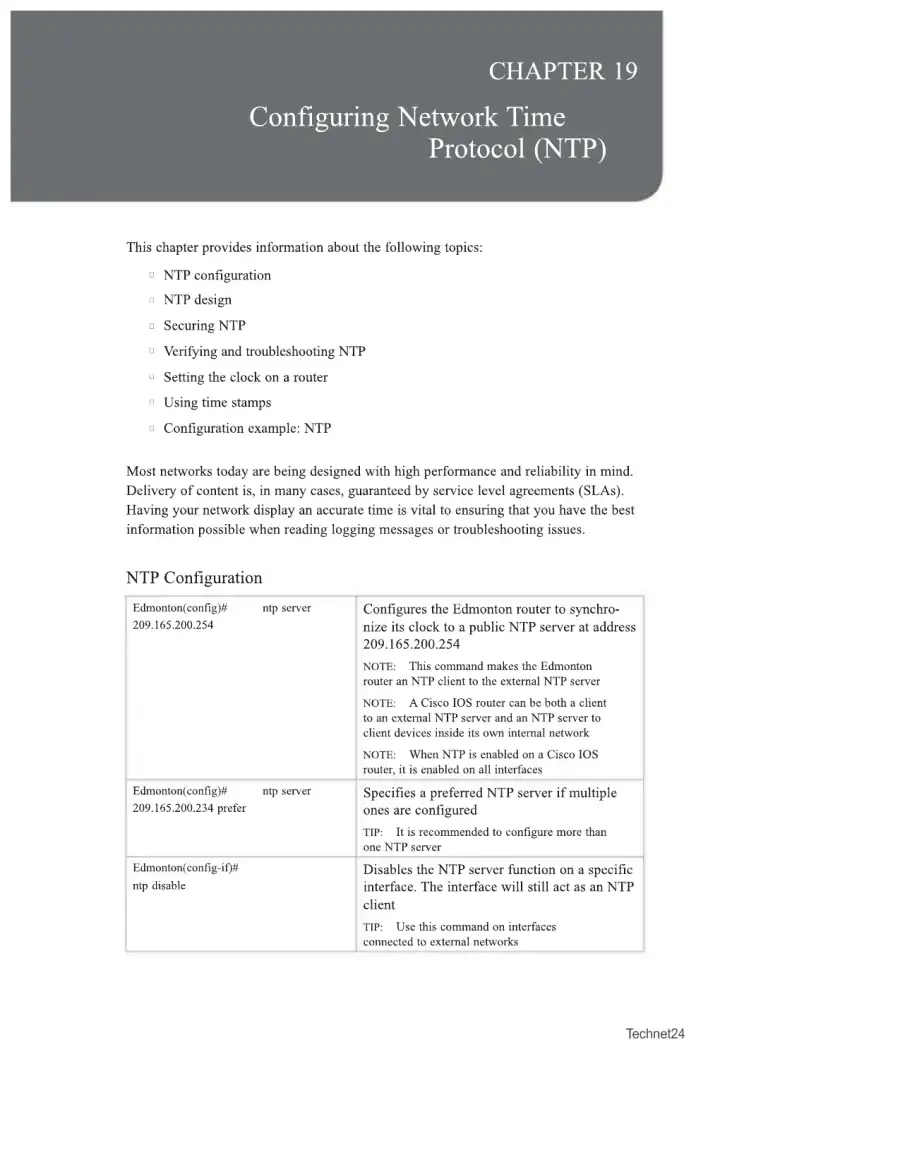

    CHAPTER 19 Configuring Network Time Protocol (NTP) This chapter provides information about the following topics: D NTP configuration n NTP design □ Securing NTP D Verifying and troubleshooting NTP 1 Setting the clock on a router n Using time stamps □ Configuration example: NTP Most networks today are being designed with high performance and reliability in mind. Delivery of content is, in many cases, guaranteed by service level agreements (SLAs). Having your network display an accurate time is vital to ensuring that you have the best information possible when reading logging messages or troubleshooting issues. NTP Configuration Edmonton(config)# ntp server 209.165.200.254 Configures the Edmonton router to synchro- nize its clock to a public NTP server at address 209.165.200.254 NOTE: This command makes the Edmonton router an NTP client to the external NTP server NOTE: A Cisco IOS router can be both a client to an external NTP server and an NTP server to client devices inside its own internal network NOTE: When NTP is enabled on a Cisco IOS router, it is enabled on all interfaces Edmonton(config)# ntp server 209.165.200.234 prefer Specifies a preferred NTP server if multiple ones are configured TIP: It is recommended to configure more than one NTP server Edmonton(config-if)# ntp disable Disables the NTP server function on a specific interface. The interface will still act as an NTP client TIP: Use this command on interfaces connected to external networks Technet24

  2. Page 2
    Read page 2 as text

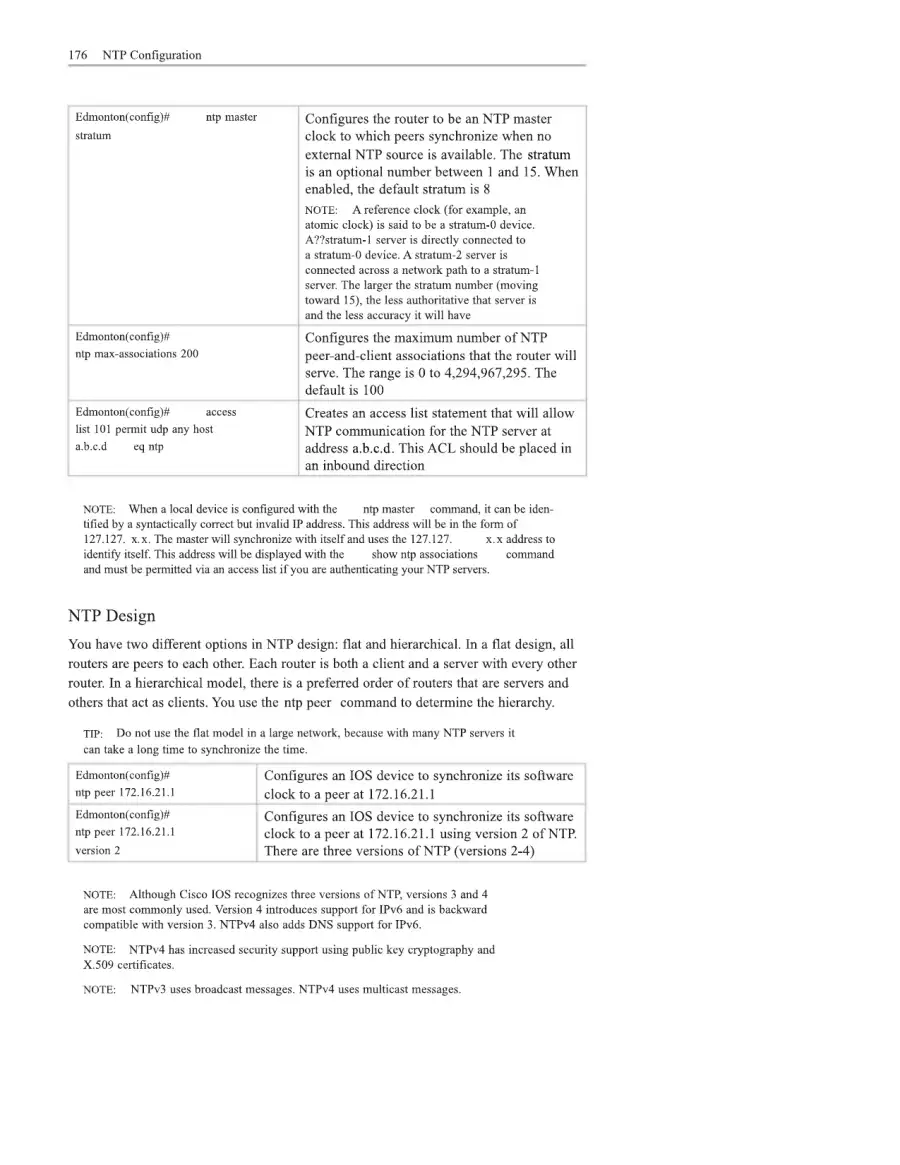

    176 NTP Configuration Edmonton( config)# ntp master stratum Configures the router to be an NTP master clock to which peers synchronize when no external NTP source is available. The stratum is an optional number between 1 and 15. When enabled, the default stratum is 8 NOTE: A reference clock (for example, an atomic clock) is said to be a stratum-0 device. A??stratum-1 server is directly connected to a stratum-0 device. A stratum-2 server is connected across a network path to a stratum-1 server. The larger the stratum number (moving toward 15), the less authoritative that server is and the less accuracy it will have Edmonton(config)# ntp max-associations 200 Configures the maximum number of NTP peer-and-client associations that the router will serve. The range is 0 to 4,294,967,295. The default is 100 Edmonton(config)# access list 101 permit udp any host a.b.c.d eq ntp Creates an access list statement that will allow NTP communication for the NTP server at address a.b.c.d. This ACL should be placed in an inbound direction NOTE: When a local device is configured with the ntp master command, it can be iden- tified by a syntactically correct but invalid IP address. This address will be in the form of 127.127. x.x. The master will synchronize with itself and uses the 127.127. x.x address to identify itself. This address will be displayed with the show ntp associations command and must be permitted via an access list if you are authenticating your NTP servers. NTP Design You have two different options in NTP design: flat and hierarchical. In a flat design, all routers are peers to each other. Each router is both a client and a server with every other router. In a hierarchical model, there is a preferred order of routers that are servers and others that act as clients. You use the ntp peer command to determine the hierarchy. TIP: Do not use the flat model in a large network, because with many NTP servers it can take a long time to synchronize the time. Edmonton(config)# ntp peer 172.16.21.1 Configures an IOS device to synchronize its software clock to a peer at 172.16.21.1 Edmonton(config)# ntp peer 172.16.21.1 version 2 Configures an IOS device to synchronize its software clock to a peer at 172.16.21.1 using version 2 of NTP. There are three versions of NTP (versions 2-4) NOTE: Although Cisco IOS recognizes three versions of NTP, versions 3 and 4 are most commonly used. Version 4 introduces support for IPv6 and is backward compatible with version 3. NTPv4 also adds DNS support for IPv6. NOTE: NTPv4 has increased security support using public key cryptography and X.509 certificates. NOTE: NTPv3 uses broadcast messages. NTPv4 uses multicast messages.

  3. Page 3
    Read page 3 as text

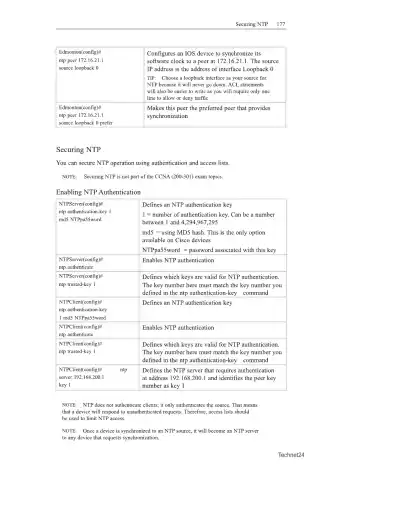

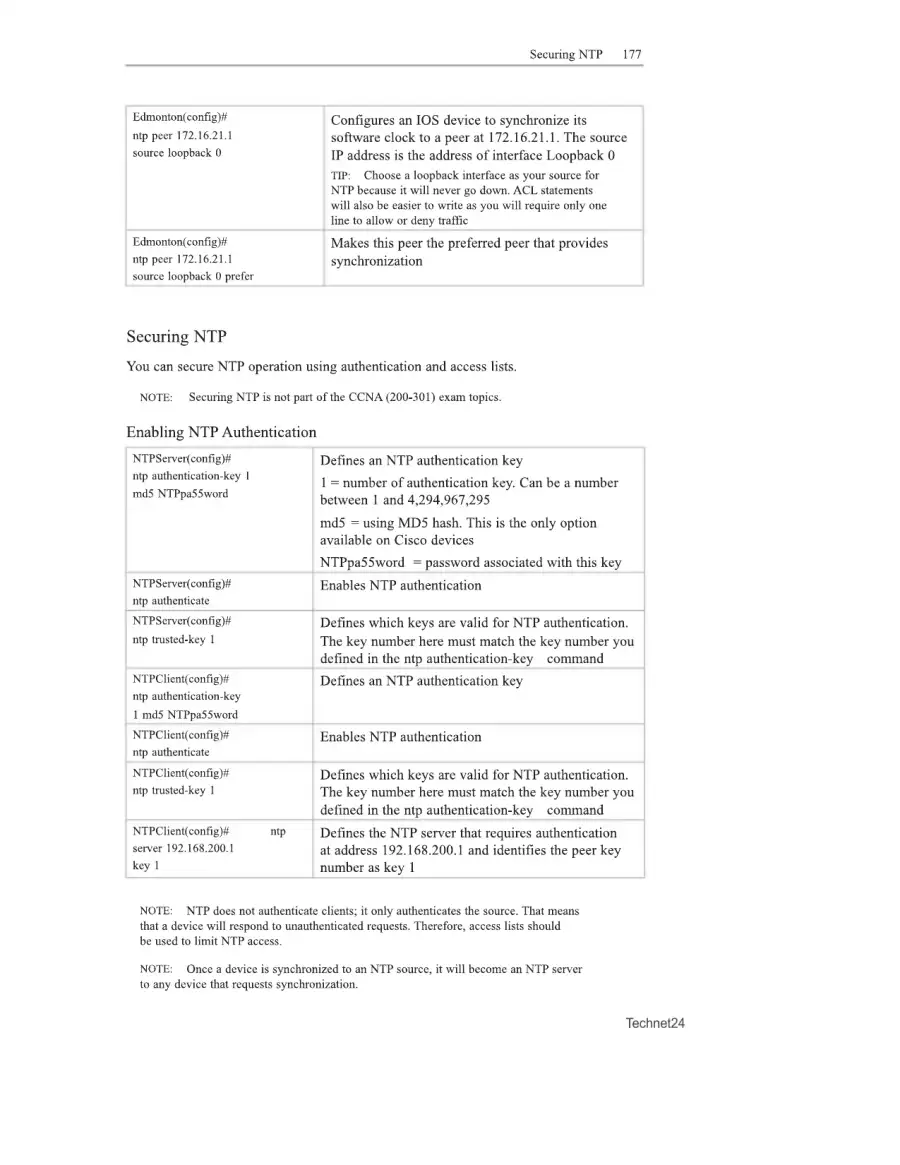

    Securing NTP 177 Edmonton(config)# ntp peer 172.16.21.1 source loopback 0 Configures an IOS device to synchronize its software clock to a peer at 172.16.21.1. The source IP address is the address of interface Loopback 0 TIP: Choose a loopback interface as your source for NTP because it will never go down. ACL statements will also be easier to write as you will require only one line to allow or deny traffic Edmonton(config)# ntp peer 172.16.21.1 source loopback 0 prefer Makes this peer the preferred peer that provides synchronization Securing NTP You can secure NTP operation using authentication and access lists. NOTE: Securing NTP is not part of the CCNA (200-301) exam topics. Enabling NTP Authentication NTPServer(config)# ntp authentication-key 1 md5 NTPpa55word Defines an NTP authentication key 1 = number of authentication key. Can be a number between 1 and 4,294,967,295 md5 = using MD5 hash. This is the only option available on Cisco devices NTPpa55word = password associated with this key NTPServer(config)# ntp authenticate Enables NTP authentication NTPServer(config)# ntp trusted-key 1 Defines which keys are valid for NTP authentication. The key number here must match the key number you defined in the ntp authentication-key command NTPClient(config)# ntp authentication-key 1 md5 NTPpa55word Defines an NTP authentication key NTPClient(config)# ntp authenticate Enables NTP authentication NTPClient(config)# ntp trusted-key 1 Defines which keys are valid for NTP authentication. The key number here must match the key number you defined in the ntp authentication-key command NTPClient(config)# ntp server 192.168.200.1 key 1 Defines the NTP server that requires authentication at address 192.168.200.1 and identifies the peer key number as key 1 NOTE: NTP does not authenticate clients; it only authenticates the source. That means that a device will respond to unauthenticated requests. Therefore, access lists should be used to limit NTP access. NOTE: Once a device is synchronized to an NTP source, it will become an NTP server to any device that requests synchronization. Technet24

  4. Page 4
    Read page 4 as text

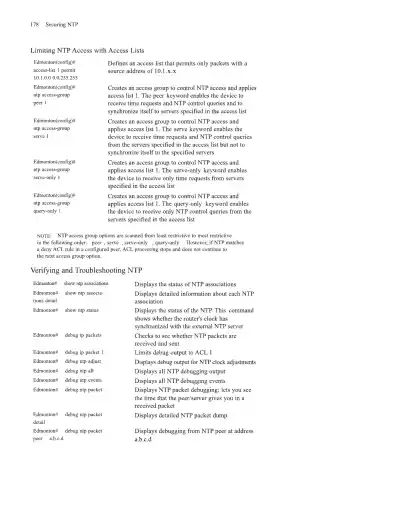

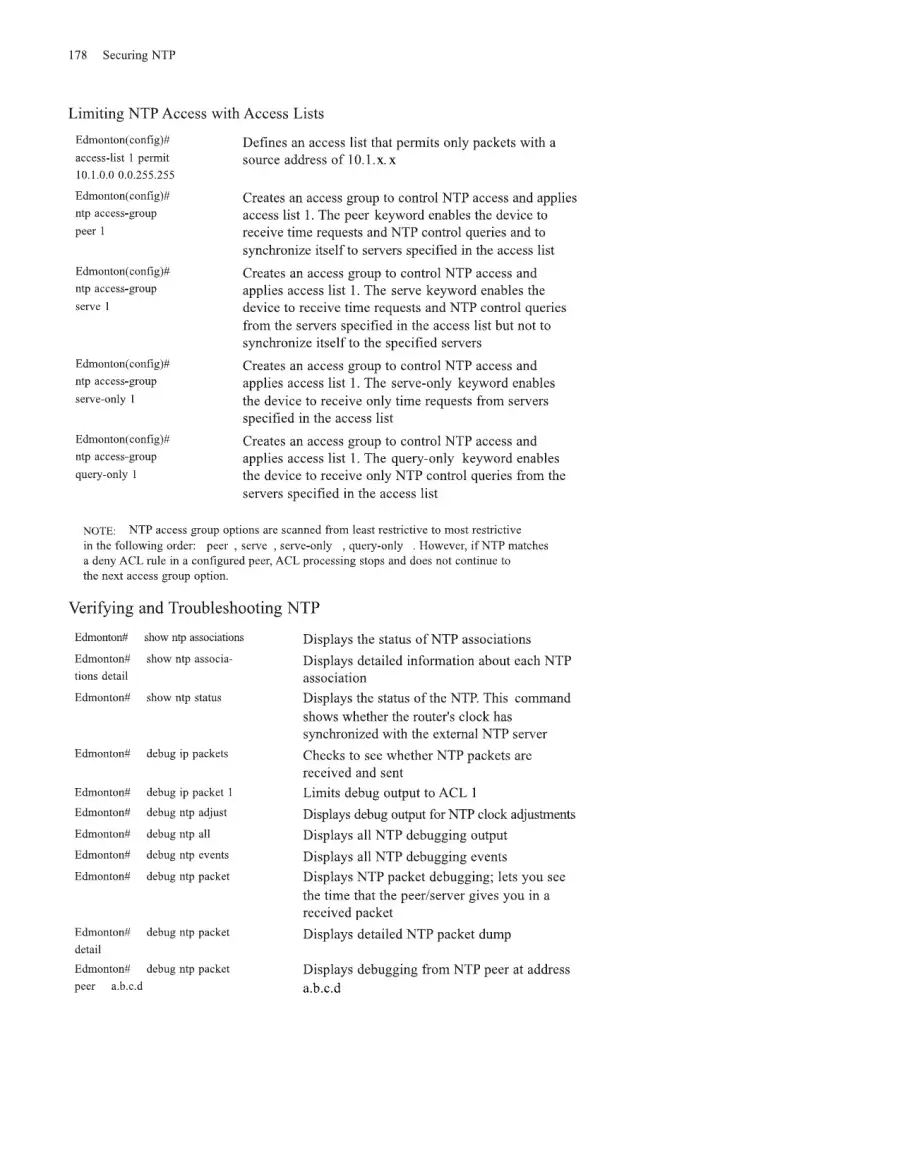

    178 Securing NTP Limiting NTP Access with Access Lists Edmonton(config)# access-list 1 permit 10.1.0.0 0.0.255.255 Edmonton(config)# ntp access-group peer 1 Edmonton(config)# ntp access-group serve 1 Defines an access list that permits only packets with a source address of 10.1.x. x Creates an access group to control NTP access and applies access list 1. The peer keyword enables the device to receive time requests and NTP control queries and to synchronize itself to servers specified in the access list Creates an access group to control NTP access and applies access list 1. The serve keyword enables the device to receive time requests and NTP control queries from the servers specified in the access list but not to synchronize itself to the specified servers Creates an access group to control NTP access and applies access list 1. The serve-only keyword enables the device to receive only time requests from servers specified in the access list Creates an access group to control NTP access and applies access list 1. The query-only keyword enables the device to receive only NTP control queries from the servers specified in the access list Edmonton(config)# ntp access-group serve-only 1 Edmonton(config)# ntp access-group query-only 1 NOTE: NTP access group options are scanned from least restrictive to most restrictive in the following order: peer , serve , serve-only , query-only . However, if NTP matches a deny ACL rule in a configured peer, ACL processing stops and does not continue to the next access group option. Verifying and Troubleshooting NTP Edmonton# show ntp associations Edmonton# show ntp associa- tions detail Edmonton# show ntp status Displays the status of NTP associations Displays detailed information about each NTP association Displays the status of the NTP. This command shows whether the router's clock has synchronized with the external NTP server Checks to see whether NTP packets are received and sent Limits debug output to ACL 1 Displays debug output for NTP clock adjustments Displays all NTP debugging output Displays all NTP debugging events Displays NTP packet debugging; lets you see the time that the peer/server gives you in a received packet Displays detailed NTP packet dump Displays debugging from NTP peer at address a.b.c.d Edmonton# debug ip packets Edmonton# debug ip packet 1 Edmonton# debug ntp adjust Edmonton# debug ntp all Edmonton# debug ntp events Edmonton# debug ntp packet Edmonton# debug ntp packet detail Edmonton# debug ntp packet peer a.b.c.d
