Lab Create a Home Wireless Network

This site provides interactive IT labs for students to practice real-world networking tasks like setting up wireless networks, configuring routers, and connecting devices—ideal for CompTIA Network+ prep and IT career training.

Preview 1 of 2 pages

See the first page exactly as it appears in the document.

  1. Page 1
    Read page 1 as text

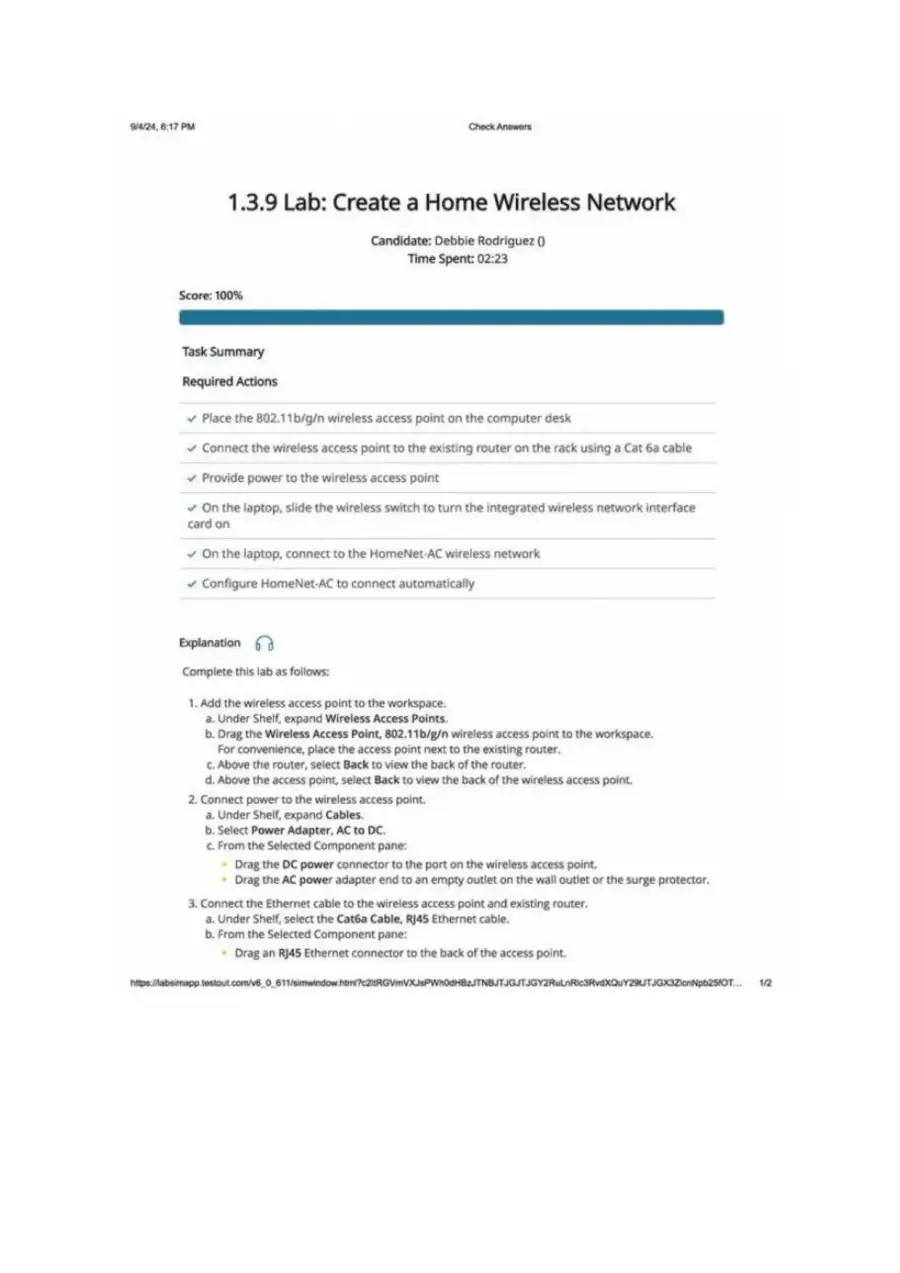

    W 2 4 . 6:17 PM CfiM* Artswrtrt# 1.3.9 Lab: Create a Home Wireless Network Candidate: Debbie Rodriguez () Time Spent: 02:23 Score: 100% Task Summary Required Actions *s Place the 802.11b/g/n wireless access point on the computer desk v- Connect the wireless access point to the existing router o n the rack using a Cat 6a cable Provide power to the w reless access point ** On the laptop, slide the wireless switch t o turn the integrated wireless network interface card o n On the laptop, connect to the HomeNet AC wireless network ■ f Configure HomeNet-AC to connect automatically Explanation Complete this lab as follows: 1. Add the w-reless access point co the workspace. a. Under Shelf, expand Wireless Access Points b. Drag the Wireless Access Point. 802.1tb/g/n wireless access point to the workspace. For convenience, plate the access point next to the existing router C. Above the router, select Back to view the back of the router. d. Above the access point, select Back to view the back of the wireless access point. 2. Connect power to the wireless access point. a. Under Shelf, expand Cables. b. Select Power Adapter, AC to DC. c. From the Selected Component parte: Dr g the DC power connector to the port on the wireless access point. Drag the AC power adapter end to an empty outlet o n the wall outlet or the surge protector. 3. Connect the Ethernet cabe to the wireless access point and existing router. a. Under Shelf, select the Cat6a Cable. RJ45 Ethernet cable b. From the Selected Component pane: Drag an Rj45 Ethernet connector to the back of the access point. tittos 'IjbSfrjpp iBSloutctmVB 0 BII.'B/rtiwindOw Mmr'/t2ltftGVmVXJ4PWTi<Mf1&2JTNBJTJGJTJGY2RuLnR.ic3RrtXOiY29tJTJGX3ZKnNpt>2SfOT. .. 1/2

1 more page in the full document
