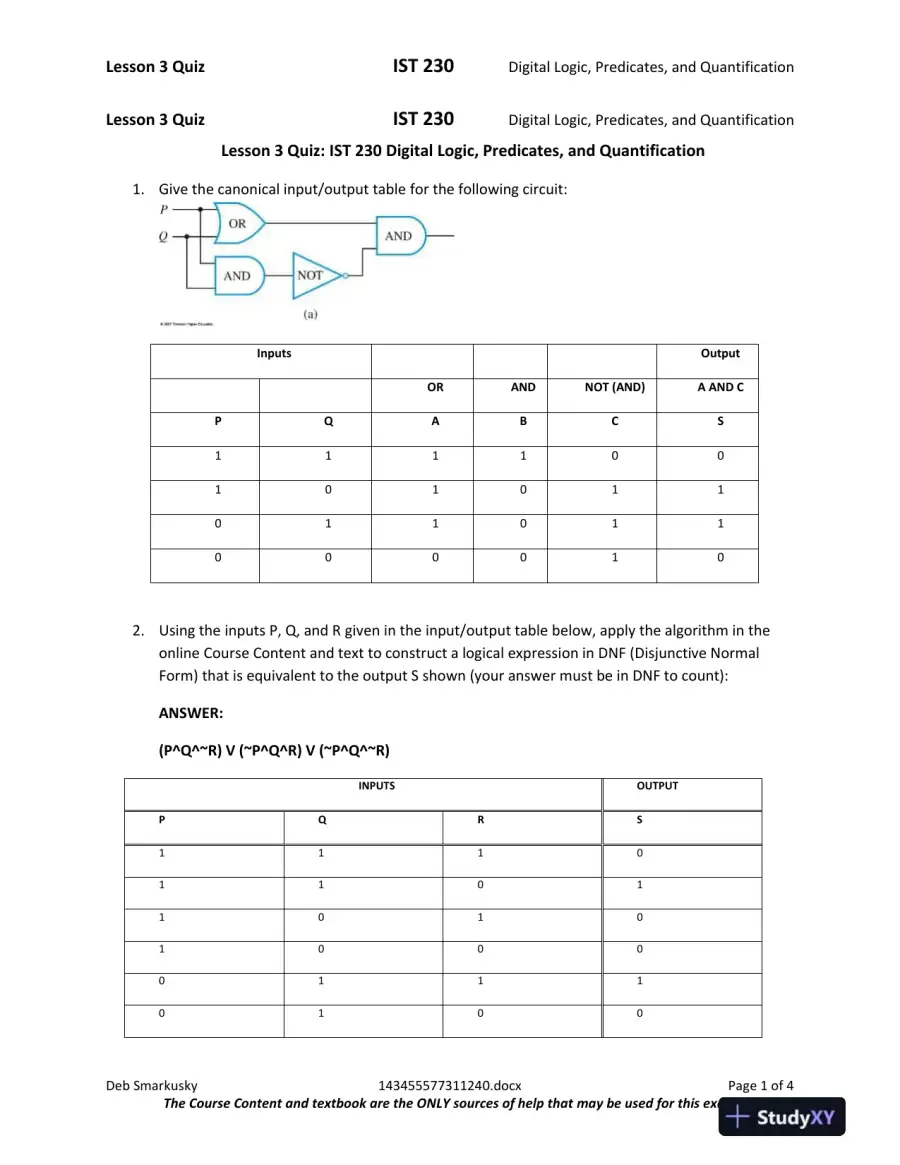

    Lesson 3 Quiz IST 230 Digital Logic, Predicates, and Quantification Deb Smarkusky 143455577311240.docx Page 1 of 4 The Course Content and textbook are the ONLY sources of help that may be used for this exam Lesson 3 Quiz IST 230 Digital Logic, Predicates, and Quantification Lesson 3 Quiz: IST 230 Digital Logic, Predicates, and Quantification 1. Give the canonical input/output table for the following circuit: Inputs Output OR AND NOT (AND) A AND C P Q A B C S 1 1 1 1 0 0 1 0 1 0 1 1 0 1 1 0 1 1 0 0 0 0 1 0 2. U sing the inputs P, Q, and R given in the input/output table below , apply the algorithm in the online Course Content and text to c onstruct a logical expression in DNF (Disjunctive Normal Form) that is equivalent to the output S shown (your answer must be in DNF to count ) : ANSWER: (P^Q^~R) V (~P^Q^R) V (~P^Q^~R) INPUTS OUTPUT P Q R S 1 1 1 0 1 1 0 1 1 0 1 0 1 0 0 0 0 1 1 1 0 1 0 0
