NETW360 Week 2 iLab: RF Behavior Calculations

Preview 2 of 6 pages

See the first 2 pages exactly as they appear in the document.

Page 1
Read page 1 as text

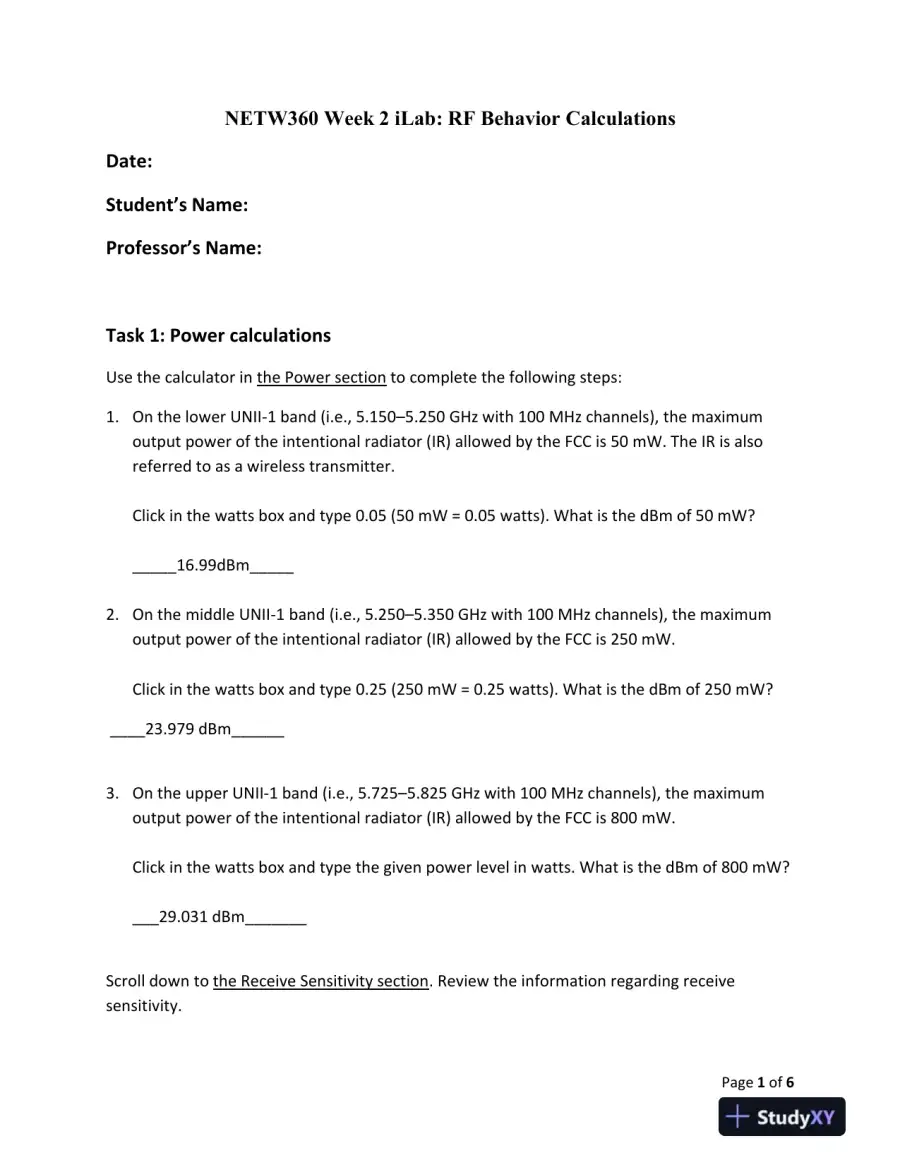

Page 1 of 6 NETW360 Week 2 iLab: RF Behavior Calculations Date: Student’s Name: Professor ’s Name: Task 1 : Power c alculations Use the calculator in the Power section to complete the following steps : 1. On the lower UNII - 1 band (i.e . , 5.150 – 5.250 GHz with 100 MHz channels ), the maximum output power of the i ntentional r adiato r (IR) allowed by the FCC is 50 mW. The IR is also refe r r ed to as a wireless transmitter. C lick in the w atts box and type 0.05 (50 mW = 0.05 w atts). What is the dBm of 50 mW? _____ 16.99dBm _____ 2. On the middle UNII - 1 band ( i.e . , 5.250 – 5.3 50 GHz with 100 MHz channels ), the maximum output power of the i ntentional r adiator (IR) allowed by the FCC is 2 50 mW. C lick in the w atts box and type 0.2 5 ( 250 mW = 0.2 5 w atts). What is the dBm of 2 50 mW? ____ 23.979 dBm ______ 3. On the upper UNII - 1 band ( i.e . , 5.725 – 5.825 GHz with 100 MHz channels ), the maximum output power of the i ntentional r adiator (IR) allowed by the FCC is 800 mW. C lick in the w atts box and type the given power level in w atts. What is the dBm of 800 mW? ___ 29.031 dBm __ _____ Scroll down to the Receive Sensitivity section . Review the information regarding receive sensitivity.
Page 2
