Understanding EKG Rhythms and Pacemaker Care NCLEX

NCLEX High Yield EKG Lecture: Master normal sinus rhythm, bradycardia, tachycardia, A-fib, V-fib, SVT, digoxin, anticoagulants, pacemakers & more! Perfect for nursing board prep. Simplified, high-yield, and test-focused.

Preview 4 of 13 pages

See the first 4 pages exactly as they appear in the document.

  1. Page 1

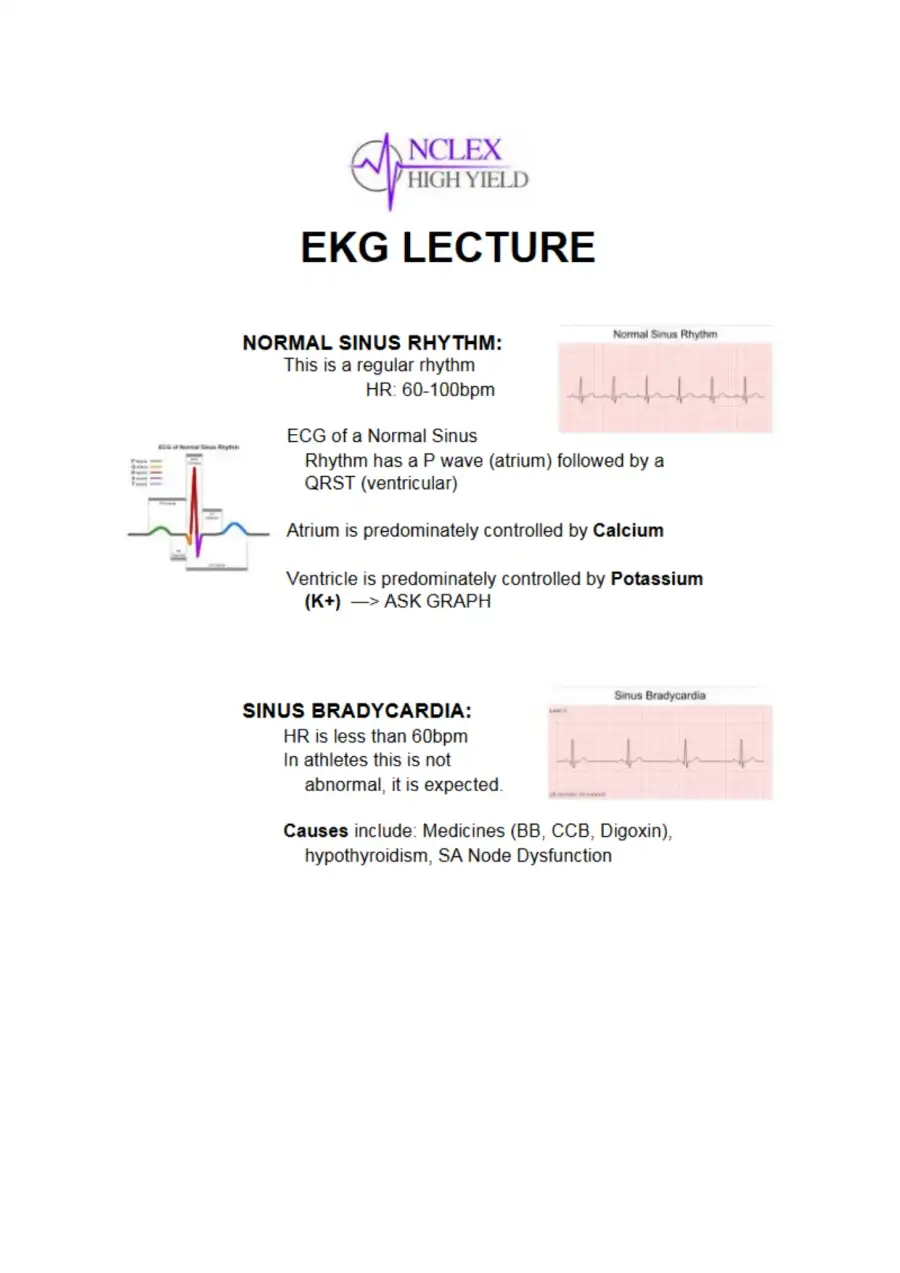

    Read page 1 as text

    NCLEX HIGH YIELD EKG LECTURE NORMAL SINUS RHYTHM: This is a regular rhythm HR: 60-100bpm ECG of a Normal Sinus Rhythm has a P wave (atrium) followed by a QRST (ventricular) — Atrium is predominately controlled by Calcium Ventricle is predominately controlled by Potassium (K+) —> ASK GRAPH Smus Bradycardia SINUS BRADYCARDIA: HR is less than 60bpm In athletes this is not abnormal, it is expected. Causes include: Medicines (BB, COB, Digoxin), hypothyroidism, SA Node Dysfunction

  2. Page 2

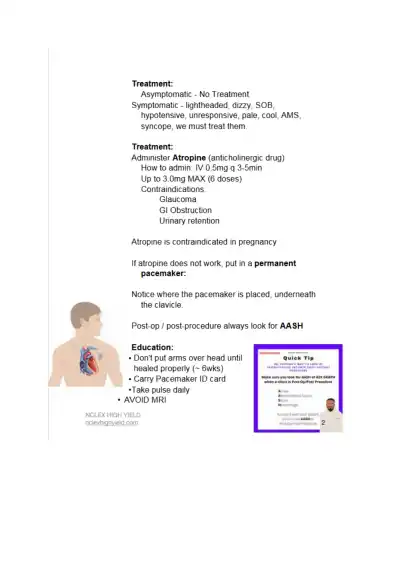

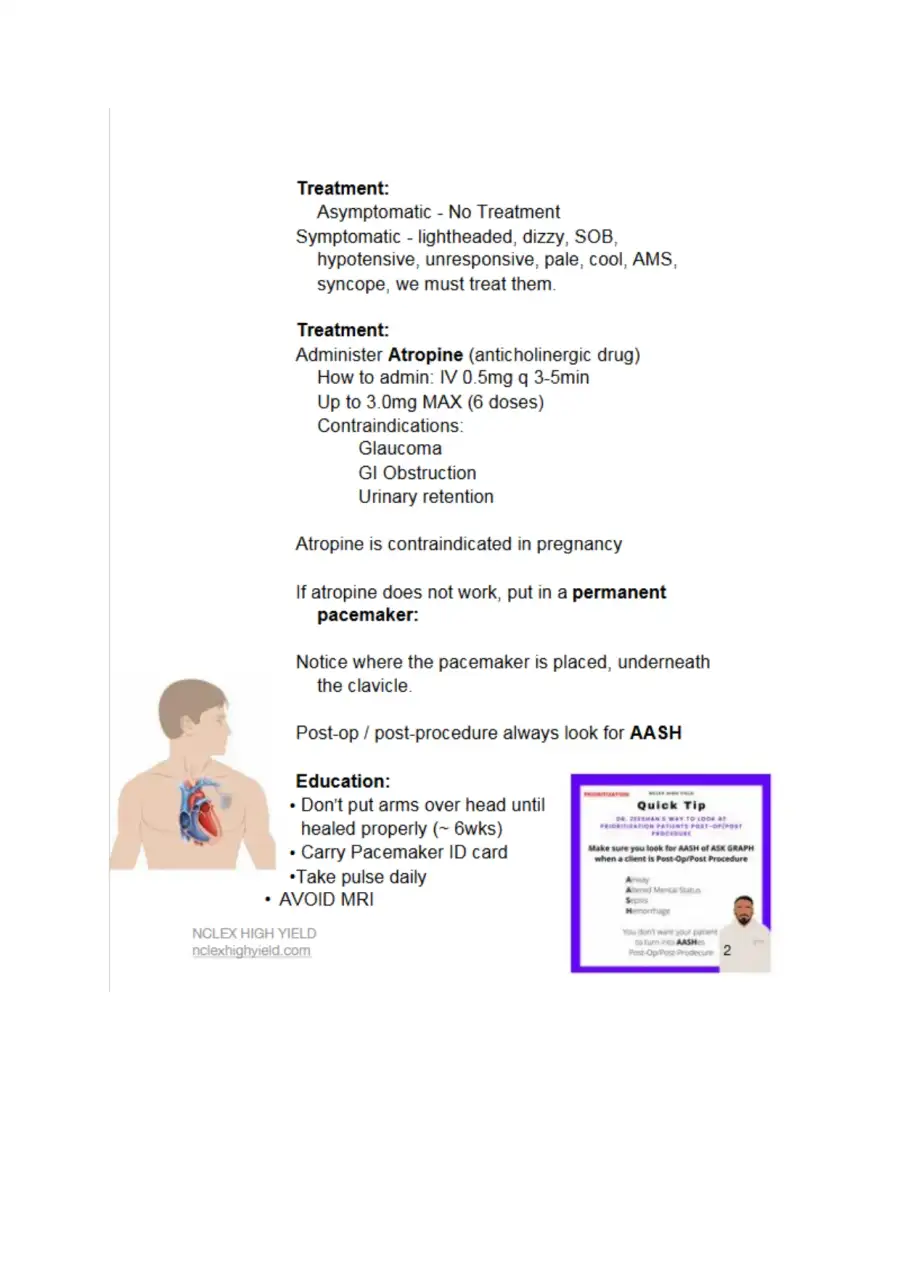

    Read page 2 as text

    Treatment: Asymptomatic - No Treatment Symptomatic - lightheaded, dizzy, SOB, hypotensive, unresponsive, pale, cool, AMS, syncope, we must treat them. Treatment: Administer Atropine (anticholinergic drug) How to admin: IV 0.5mg q 3-5min Up to 3 Omg MAX (6 doses) Contraindications: Glaucoma Gl Obstruction Urinary retention Atropine is contraindicated in pregnancy If atropine does not work, put in a permanent pacemaker: Notice where the pacemaker is placed, underneath the clavicle. Post-op / post-procedure always look for AASH Education: - Don't put arms over head until healed properly (~ 6wks) • Carry Pacemaker ID card •Take pulse daily ■ AVOID MRI NCLEX HIGH YIELD nclexliighyielcl.com

  3. Page 3

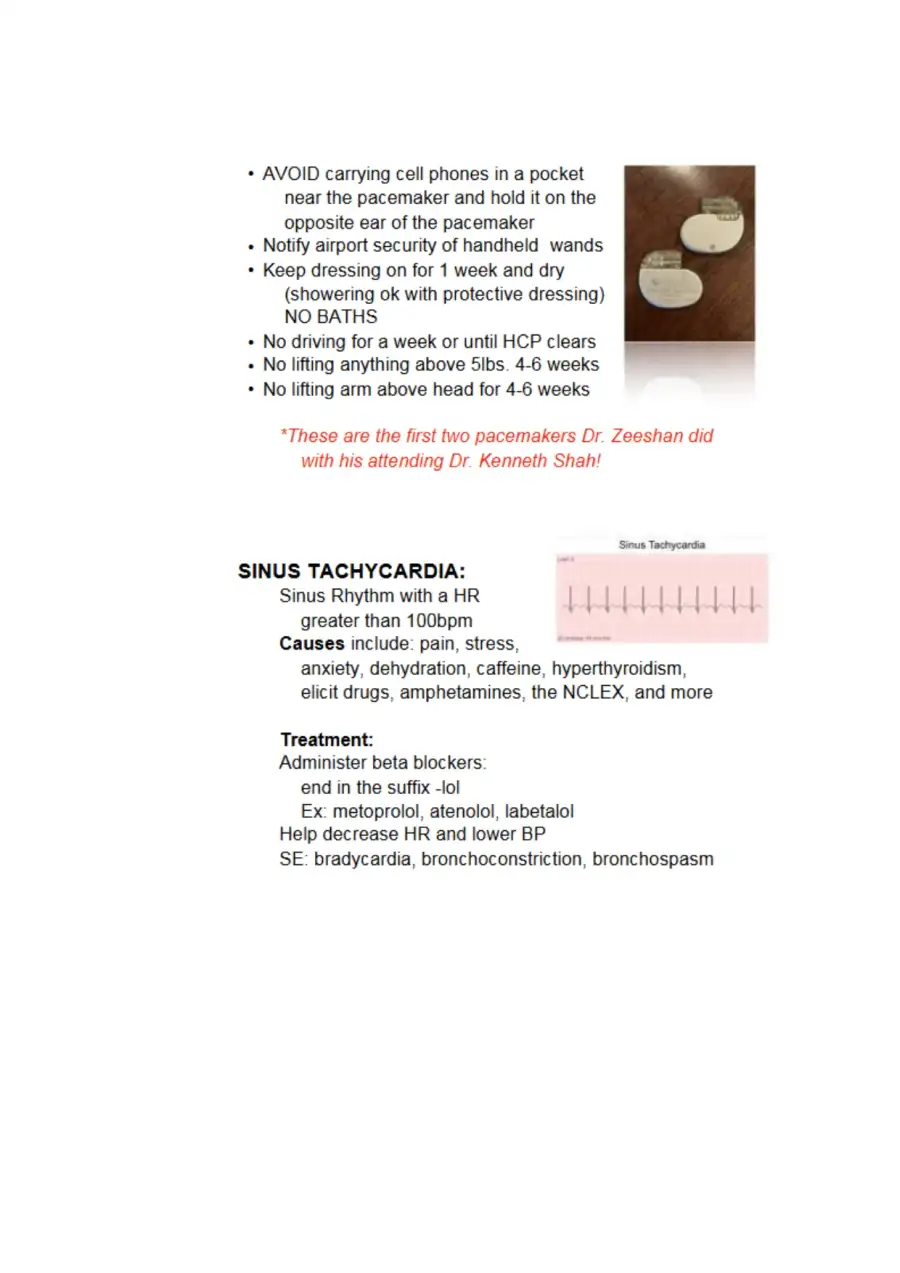

    Read page 3 as text

    ■ AVOID carrying cell phones in a pocket near the pacemaker and hold it on the opposite ear of the pacemaker ■ Notify airport security of handheld wands • Keep dressing on for 1 week and dry (showering ok with protective dressing) NO BATHS ■ No driving for a week or until HCP clears • No lifting anything above 5lbs. 4-6 weeks ■ No lifting arm above head for 4-6 weeks *These are the first two pacemakers Dr. Zeeshan did with his attending Dr. Kenneth Shah! Shut Tactiycardia SINUS TACHYCARDIA: Sinus Rhythm with a HR greater than 100bpm Causes include: pain, stress, anxiety, dehydration, caffeine, hyperthyroidism, elicit drugs, amphetamines, the NCLEX, and more Treatment: Administer beta blockers: end in the suffix -lol Ex: metoprolol, atenolol, labetalol Help decrease HR and lower BP SE: bradycardia, bronchoconstriction, bronchospasm

  4. Page 4

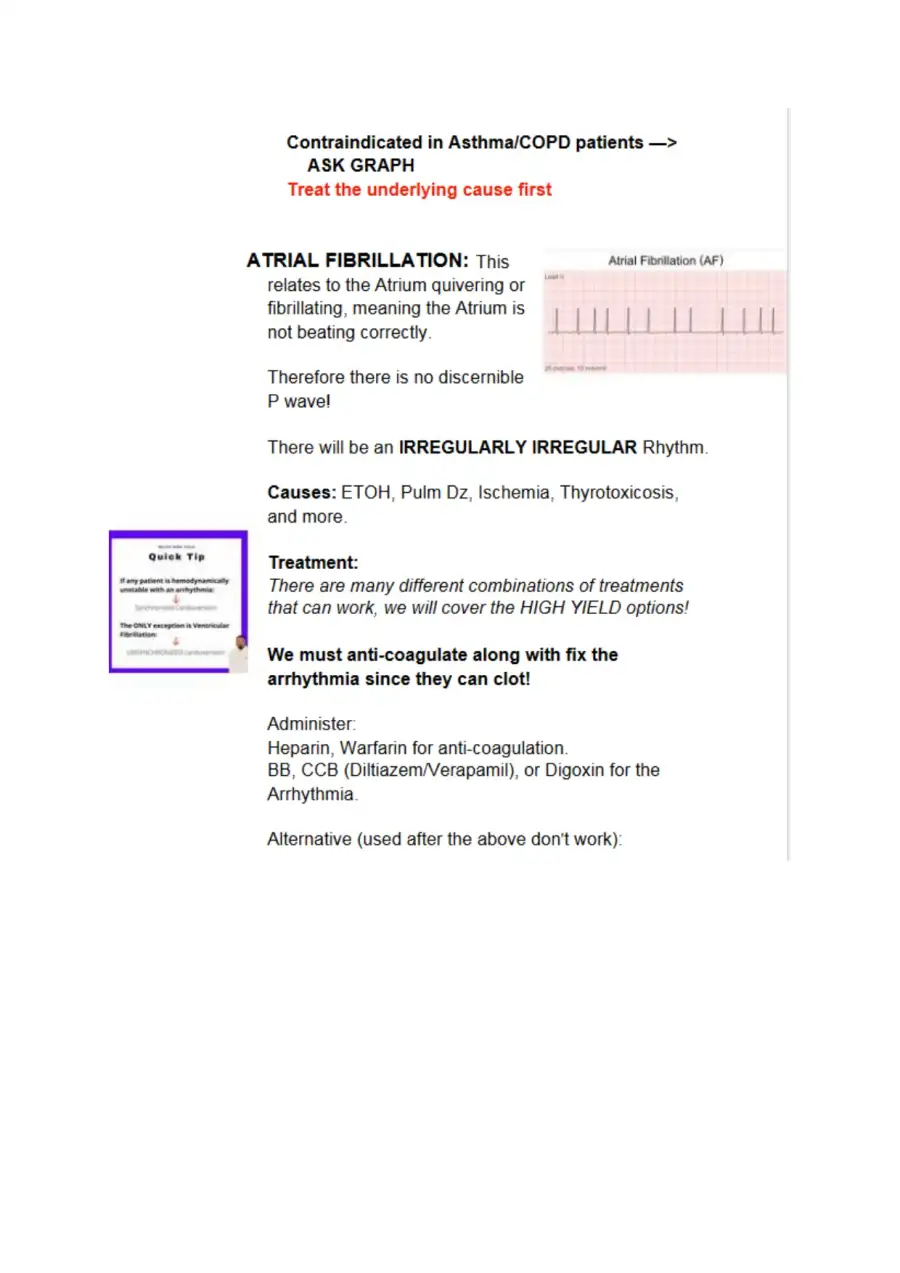

    Read page 4 as text

    Contraindicated in Asthma/COPD patients —> ASK GRAPH Treat the underlying cause first ATRIAL FIBRILLATION: This relates to the Atrium quivering or fibrillating , meaning the Atrium iis not beating correctly. Therefore there is no discernible Atrial Fibrillation (AF) L11LI 1 it 1 P wave! There will be an IRREGULARLY IRREGULAR Rhythm Causes: ETOH, Pulm Dz, Ischemia, Thyrotoxicosis, and more. Treatment: There are many different combinations of treatments that can work, we will cover the HIGH YIELD options! We must anti-coagulate along with fix the arrhythmia since they can clot! Administer: Heparin, Warfarin for anti-coagulation. BB : CCB (Diltiazem/Verapamil), or Digoxin for the Arrhythmia. Alternative (used after the above don't work):
