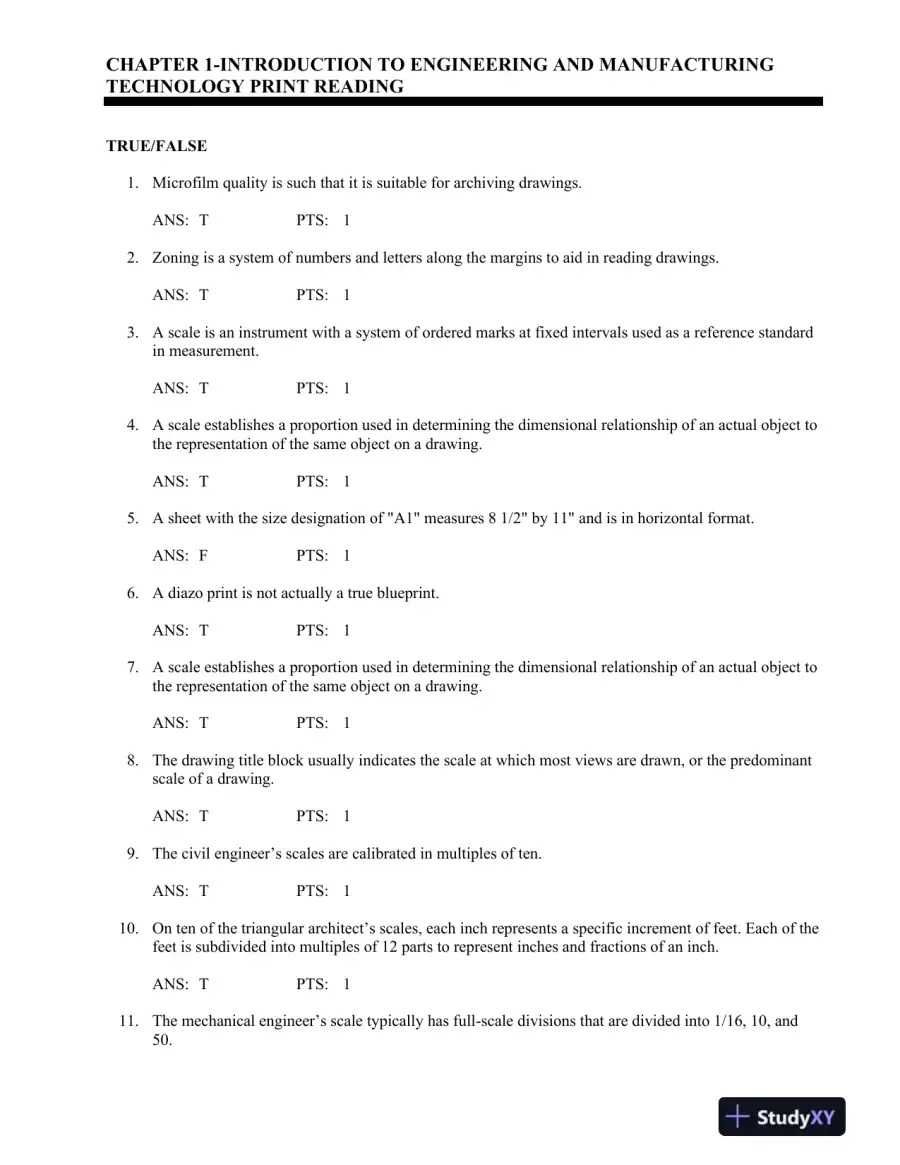

CHAPTER 1 - INTRODUCTION TO ENGINEERING AND MANUFACTURING TECHNOLOGY PRINT READING TRUE/FALSE 1. Microfilm quality is such that it is suitable for archiving drawings. ANS: T PTS: 1 2. Zoning is a system of numbers and letters along the margins to aid in reading drawings. ANS: T PTS: 1 3. A scale is an instrument with a system of ordered marks at fixed intervals used as a reference standard in measurement. ANS: T PTS: 1 4. A scale establishes a proportion used in determining the dimensional relationship of an actual object to the representation of the same object on a drawing. ANS: T PTS: 1 5. A sheet with the size designation of "A1" measures 8 1/2" by 11" and is in horizontal format. ANS: F PTS: 1 6. A diazo print is not actually a true blueprint. ANS: T PTS: 1 7. A scale establishes a proportion used in determining the dimensional relationship of an actual object to the representation of the same object on a drawing. ANS: T PTS: 1 8. The drawing title block usually indicates the scale at which most views are drawn, or the predominant scale of a drawing. ANS: T PTS: 1 9. The civil engineer’ s scales are calibrated in multiples of ten. ANS: T PTS: 1 10. On ten of the triangular architect’s scales, each inch represents a specific increment of feet. Each of the feet is subdivided into multiples of 12 parts to represent inches and fractions of an inch. ANS: T PTS: 1 11. The mechanical engineer’s scale typically has full - scale divisions that are divided into 1/16, 10, and 50.
Page 2 Page 3 Read page 3 as text

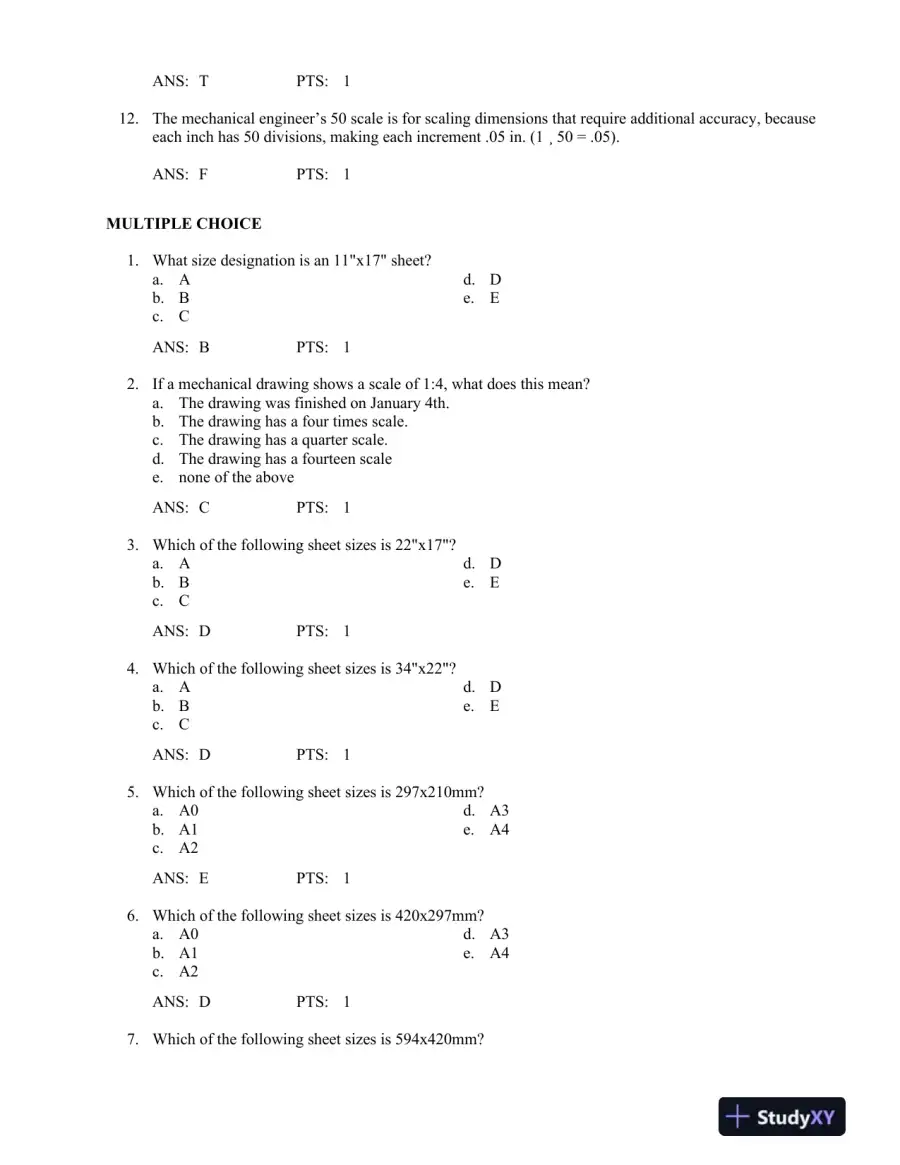

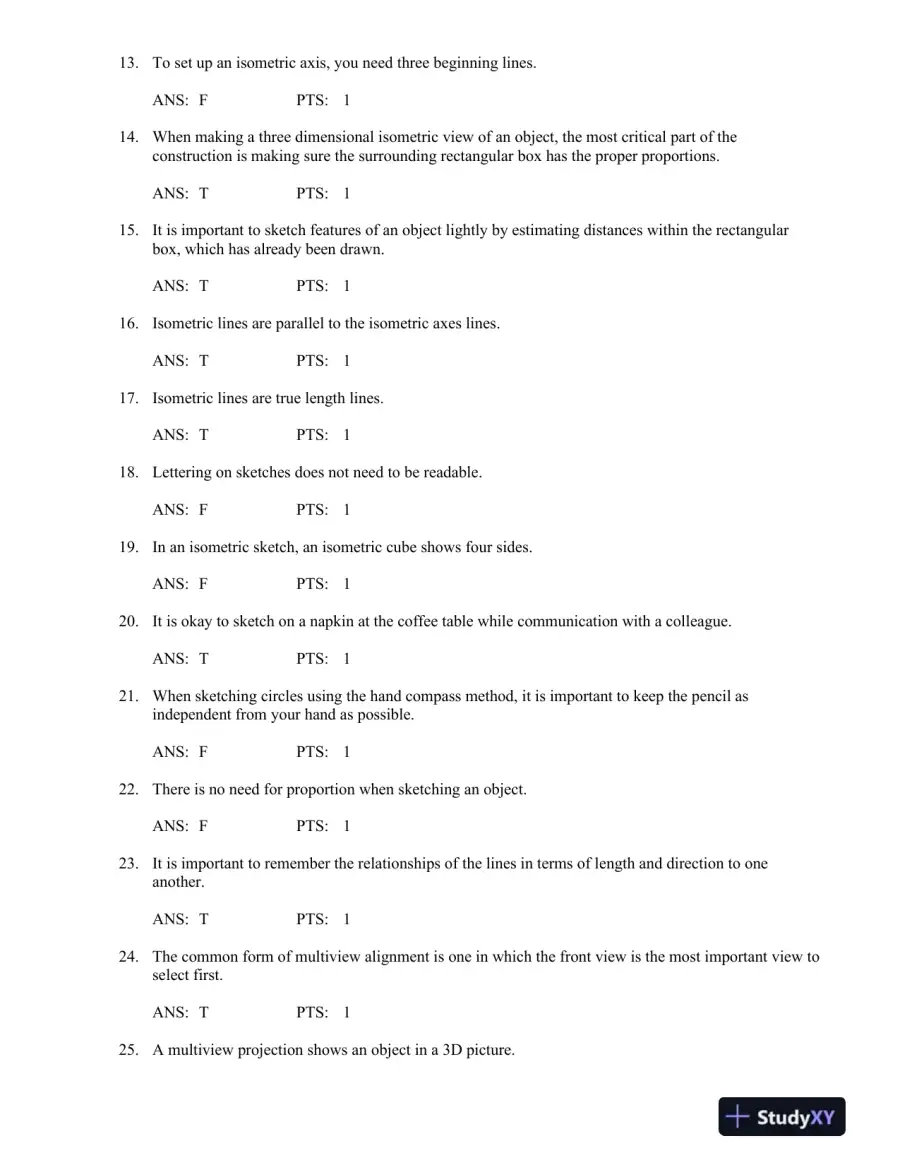

ANS: T PTS: 1 12. The mechanical engineer’s 50 scale is for scaling dimensions that require additional accuracy, because each inch has 50 divisions, making each increment .05 in. (1 ¸ 50 = .05). ANS: F PTS: 1 MULTIPLE CHOICE 1. What size designation is an 11"x17" sheet? a. A d. D b. B e. E c. C ANS: B PTS: 1 2. If a mechanical drawing shows a scale of 1:4, what does this mean? a. The drawing was finished on January 4th. b. The drawing has a four times scale. c. The drawing has a quarter scale. d. The drawing has a fourteen scale e. none of the above ANS: C PTS: 1 3. Which of the following sheet sizes is 22"x17"? a. A d. D b. B e. E c. C ANS: D PTS: 1 4. Which of the following sheet sizes is 34"x22"? a. A d. D b. B e. E c. C ANS: D PTS: 1 5. Which of the following sheet sizes is 297x210mm? a. A0 d. A3 b. A1 e. A4 c. A2 ANS: E PTS: 1 6. Which of the following sheet sizes is 420x297mm? a. A0 d. A3 b. A1 e. A4 c. A2 ANS: D PTS: 1 7. Which of the following sheet sizes is 594x420mm?
Page 4 Read page 4 as text

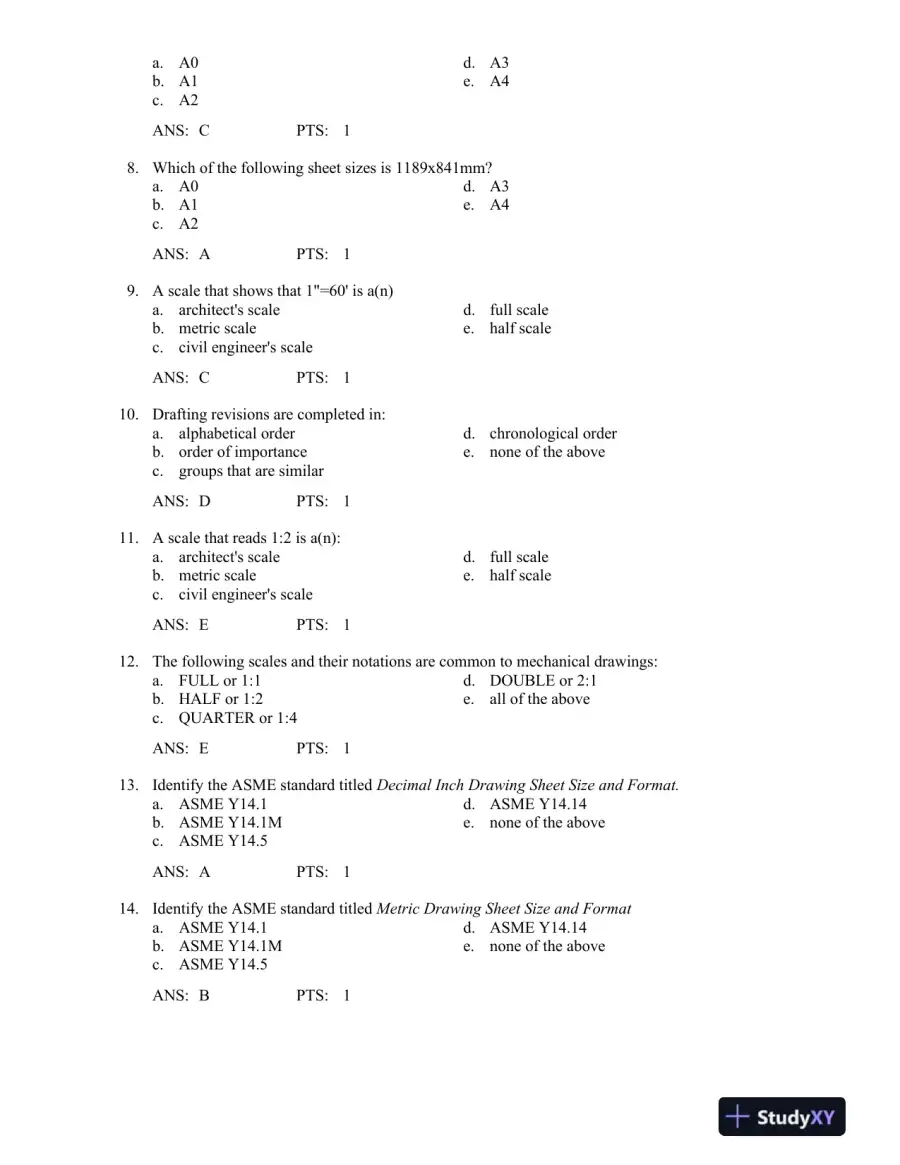

a. A0 d. A3 b. A1 e. A4 c. A2 ANS: C PTS: 1 8. Which of the following sheet sizes is 1189x841mm? a. A0 d. A3 b. A1 e. A4 c. A2 ANS: A PTS: 1 9. A scale that shows that 1"=60' is a(n) a. architect's scale d. full scale b. metric scale e. half scale c. civil engineer's scale ANS: C PTS: 1 10. Drafting revisions are completed in: a. alphabetical order d. chronological order b. order of importance e. none of the above c. groups that are similar ANS: D PTS: 1 11. A scale that reads 1:2 is a(n): a. architect's scale d. full scale b. metric scale e. half scale c. civil engineer's scale ANS: E PTS: 1 12. The following scales and their notations are common to mechanical drawings: a. FULL or 1:1 d. DOUBLE or 2:1 b. HALF or 1:2 e. all of the above c. QUARTER or 1:4 ANS: E PTS: 1 13. Identify the ASME standard titled Decimal Inch Drawing Sheet Size and Format. a. ASME Y14.1 d. ASME Y14.14 b. ASME Y14.1M e. none of the above c. ASME Y14.5 ANS: A PTS: 1 14. Identify the ASME standard titled Metric Drawing Sheet Size and Format a. ASME Y14.1 d. ASME Y14.14 b. ASME Y14.1M e. none of the above c. ASME Y14.5 ANS: B PTS: 1
Page 5 Read page 5 as text

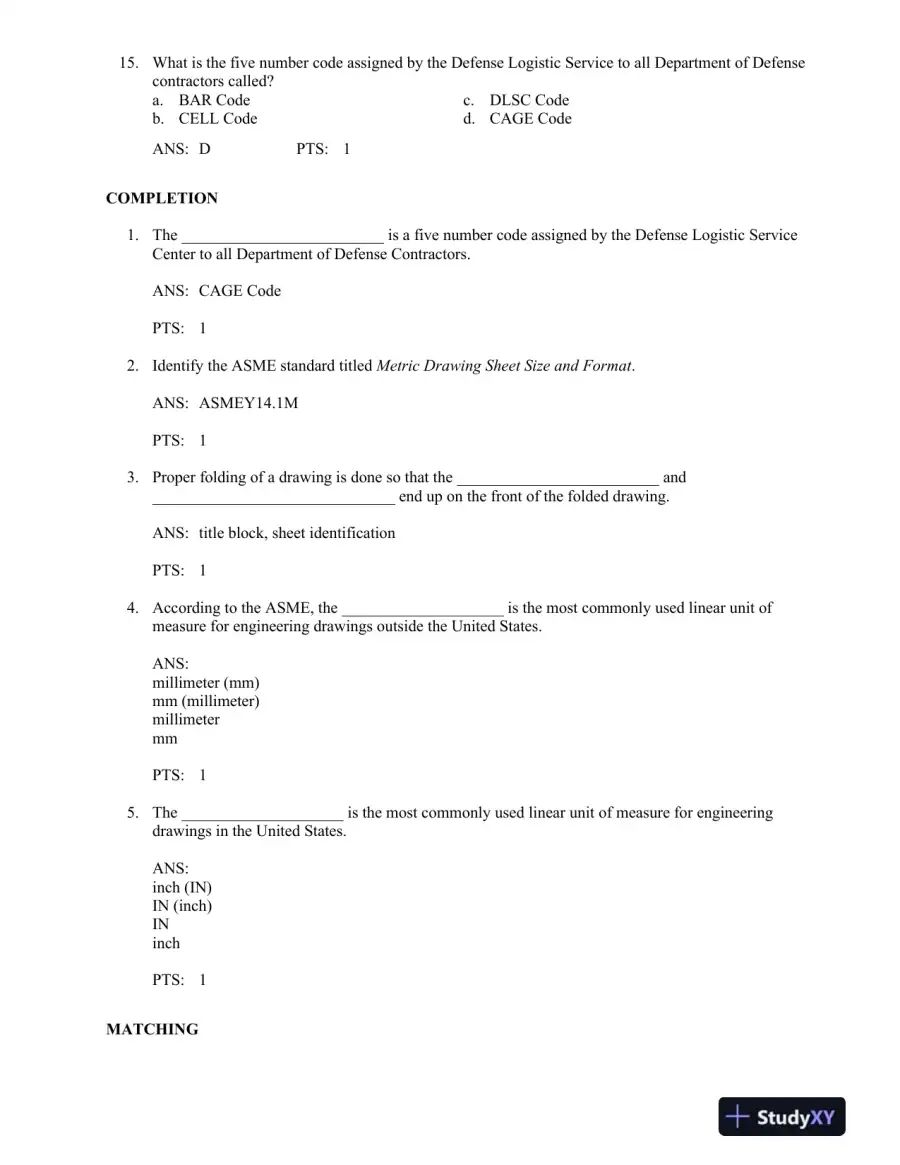

15. What is the five number code assigned by the Defense Logistic Service to all Department of Defense contractors called? a. BAR Code c. DLSC Code b. CELL Code d. CAGE Code ANS: D PTS: 1 COMPLETION 1. The _________________________ is a five number code assigned by the Defense Logistic Service Center to all Department of Defense Contractors. ANS: CAGE Code PTS: 1 2. Identify the ASME standard titled Metric Drawing Sheet Size and Format . ANS: ASMEY14.1M PTS: 1 3. Proper folding of a drawing is done so that the _________________________ and ______________________________ end up on the front of the folded drawing. ANS: title block, sheet identification PTS: 1 4. According to the ASME, the ____________________ is the most commonly used linear unit of measure for engineering drawings outside the United States. ANS: millimeter (mm) mm (millimeter) millimeter mm PTS: 1 5. The ____________________ is the most commonly used linear unit of measure for engineering drawings in the United States. ANS: inch (IN) IN (inch) IN inch PTS: 1 MATCHING
Page 6 Read page 6 as text

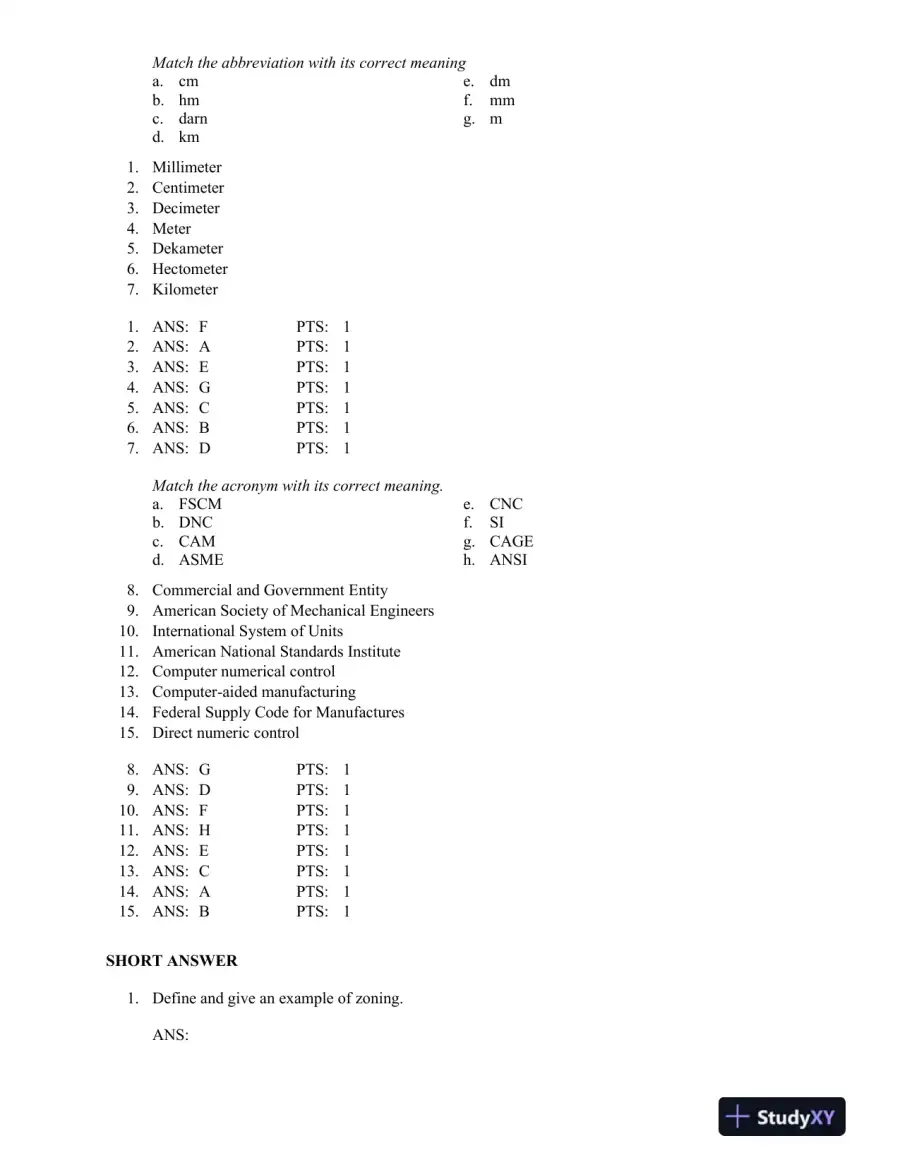

Match the abbreviation with its correct meaning a. cm e. dm b. hm f. mm c. darn g. m d. km 1. Millimeter 2. Centimeter 3. Decimeter 4. Meter 5. Dekameter 6. Hectometer 7. Kilometer 1. ANS: F PTS: 1 2. ANS: A PTS: 1 3. ANS: E PTS: 1 4. ANS: G PTS: 1 5. ANS: C PTS: 1 6. ANS: B PTS: 1 7. ANS: D PTS: 1 Match the acronym with its correct meaning. a. FSCM e. CNC b. DNC f. SI c. CAM g. CAGE d. ASME h. ANSI 8. Commercial and Government Entity 9. American Society of Mechanical Engineers 10. International System of Units 11. American National Standards Institute 12. Computer numerical control 13. Computer - aided manufacturing 14. Federal Supply Code for Manufactures 15. Direct numeric control 8. ANS: G PTS: 1 9. ANS: D PTS: 1 10. ANS: F PTS: 1 11. ANS: H PTS: 1 12. ANS: E PTS: 1 13. ANS: C PTS: 1 14. ANS: A PTS: 1 15. ANS: B PTS: 1 SHORT ANSWER 1. Define and give an example of zoning. ANS:
Page 7 Read page 7 as text

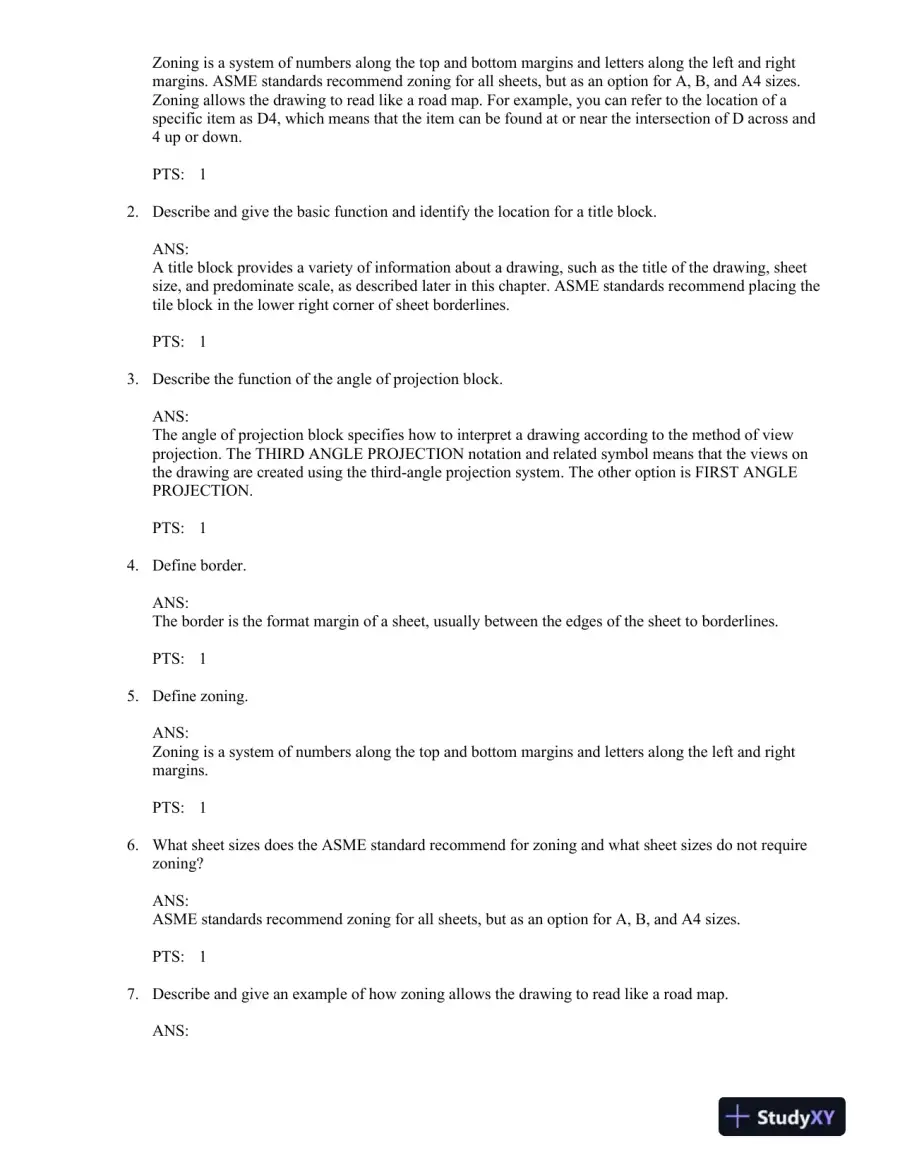

Zoning is a system of numbers along the top and bottom margins and letters along the left and right margins. ASME standards recommend zoning for all sheets, but as an option for A, B, and A4 sizes. Zoning allows the drawing to read like a road map. For example, you can refer to the location of a specific item as D4, which means that the item can be found at or near the intersection of D across and 4 up or down. PTS: 1 2. Describe and give the basic function and identify the location for a title block. ANS: A title block provides a variety of information about a drawing, such as the title of the drawing, sheet size, and predominate scale, as described later in this chapter. ASME standards recommend placing the tile block in the lower right corner of sheet borderlines. PTS: 1 3. Describe the function of the angle of projection block. ANS: The angle of projection block specifies how to interpret a drawing according to the method of view projection. The THIRD ANGLE PROJECTION notation and related symbol means that the views on the drawing are created using the third - angle projection system. The other option is FIRST ANGLE PROJECTION. PTS: 1 4. Define border. ANS: The border is the format margin of a sheet, usually between the edges of the sheet to borderlines. PTS: 1 5. Define zoning. ANS: Zoning is a system of numbers along the top and bottom margins and letters along the left and right margins. PTS: 1 6. What sheet sizes does the ASME standard recommend for zoning and what sheet sizes do not require zoning? ANS: ASME standards recommend zoning for all sheets, but as an option for A, B, and A4 sizes. PTS: 1 7. Describe and give an example of how zoning allows the drawing to read like a road map. ANS:
Page 8 Read page 8 as text

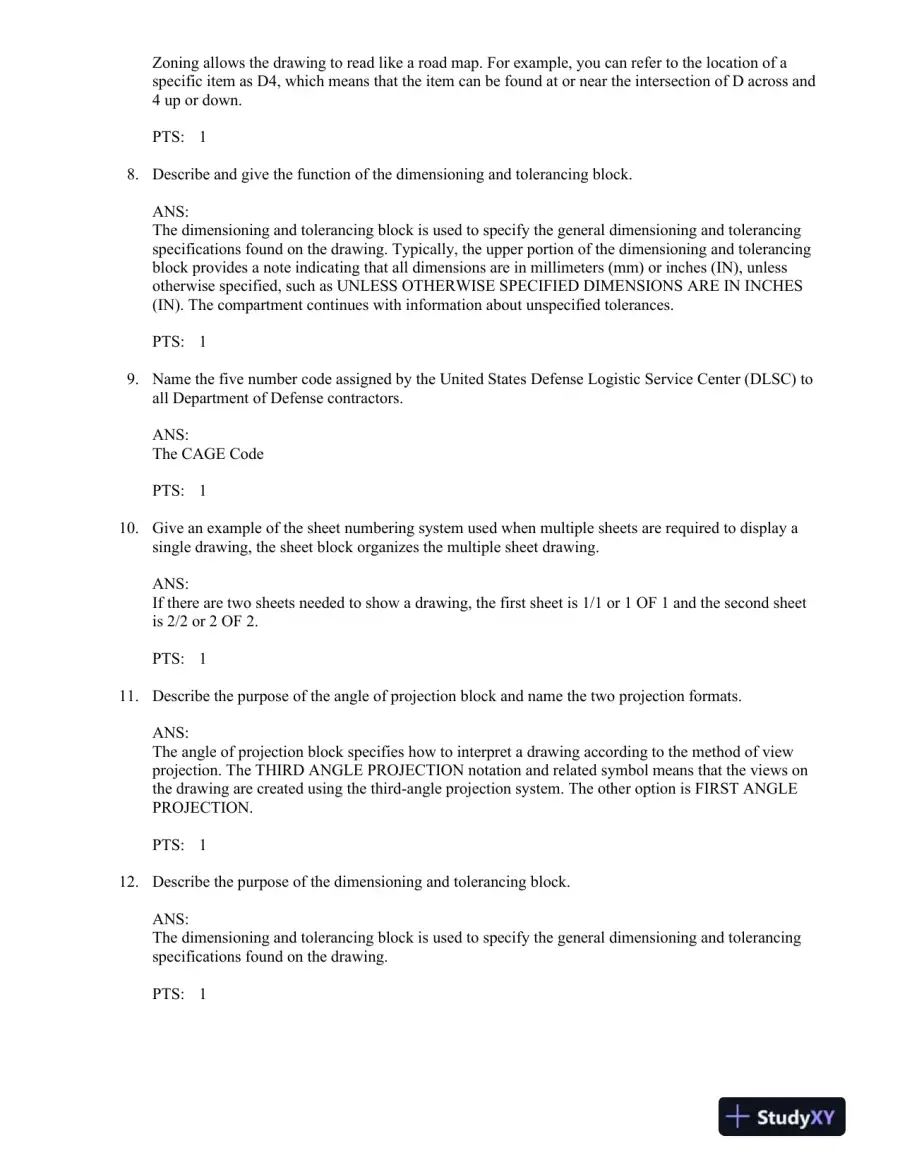

Zoning allows the drawing to read li ke a road map. For example, you can refer to the location of a specific item as D4, which means that the item can be found at or near the intersection of D across and 4 up or down. PTS: 1 8. Describe and give the function of the dimensioning and tolerancing block. ANS: The dimensioning and tolerancing block is used to specify the general dimensioning and tolerancing specifications found on the drawing. Typically, the upper portion of the dimensioning and tolerancing block provides a note indicating that all dimensions are in millimeters (mm) or inches (IN), unless otherwise specified, such as UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES (IN). The compartment continues with information about unspecified tolerances. PTS: 1 9. Name the five number code assigned by the United States Defense Logistic Service Center (DLSC) to all Department of Defense contractors. ANS: The CAGE Code PTS: 1 10. Give an example of the sheet numbering system used when multiple sheets are required to display a single drawing, the sheet block organizes the multiple sheet drawing. ANS: If there are two sheets needed to show a drawing, the first sheet is 1/1 or 1 OF 1 and the second sheet is 2/2 or 2 OF 2. PTS: 1 11. Describe the purpose of the angle of projection block and name the two projection formats. ANS: The angle of projection block specifies how to interpret a drawing according to the method of view projection. The THIRD ANGLE PROJECTION notation and related symbol means that the views on the drawing are created using the third - angle projection system. The other option is FIRST ANGLE PROJECTION. PTS: 1 12. Describe the purpose of the dimensioning and tolerancing block. ANS: The dimensioning and tolerancing block is used to specify the general dimensioning and tolerancing specifications found on the drawing. PTS: 1
Page 9 Read page 9 as text

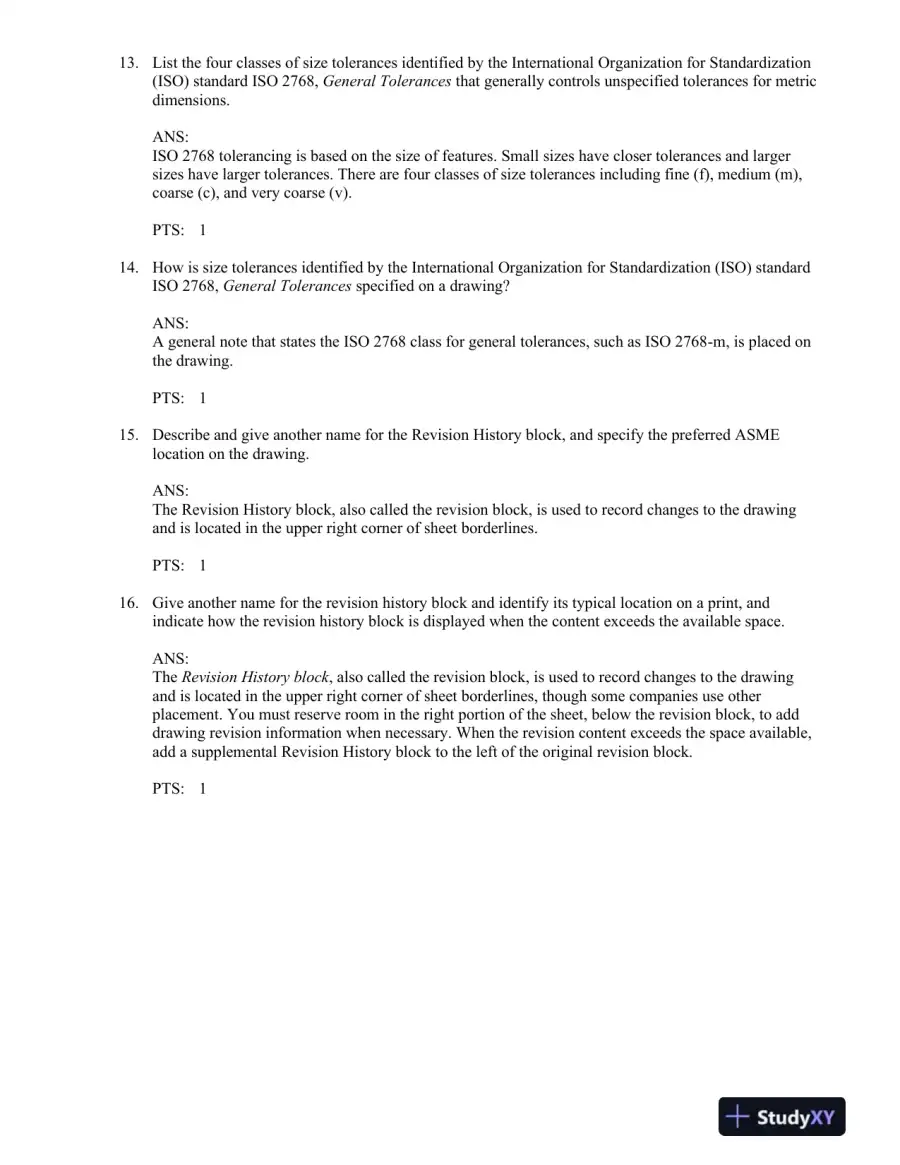

13. List the four classes of size tolerances identified by the International Organization for Standardization (ISO) standard ISO 2768, General Tolerances that generally controls unspecified tolerances for metric dimensions. ANS: ISO 2768 tolerancing is based on the size of features. Small sizes have closer tolerances and larger sizes have larger tolerances. There are four classes of size tolerances including fine (f), medium (m), coarse (c), and very coarse (v). PTS: 1 14. How is size tolerances identified by the International Organization for Standardization (ISO) standard ISO 2768, General Tolerances specified on a drawing? ANS: A general note that states the ISO 2768 class for general tolerances, such as ISO 2768 - m, is placed on the drawing. PTS: 1 15. Describe and give another name for the Revision History block, and specify the preferred ASME location on the drawing. ANS: The Revision History block, also called the revision block, is used to record changes to the drawing and is located in the upper right corner of sheet borderlines. PTS: 1 16. Give another name for the revision history block and identify its typical location on a print, and indicate how the revision history block is displayed when the content exceeds the available space. ANS: The Revision History block , also called the revision block, is used to record changes to the drawing and is located in the upper right corner of sheet borderlines, though some companies use other placement. You must reserve room in the right portion of the sheet, below the revision block, to add drawing revision information when necessary. When the revision content exceeds the space available, add a supplemental Revision History block to the left of the original revision block. PTS: 1
Page 10 Read page 10 as text

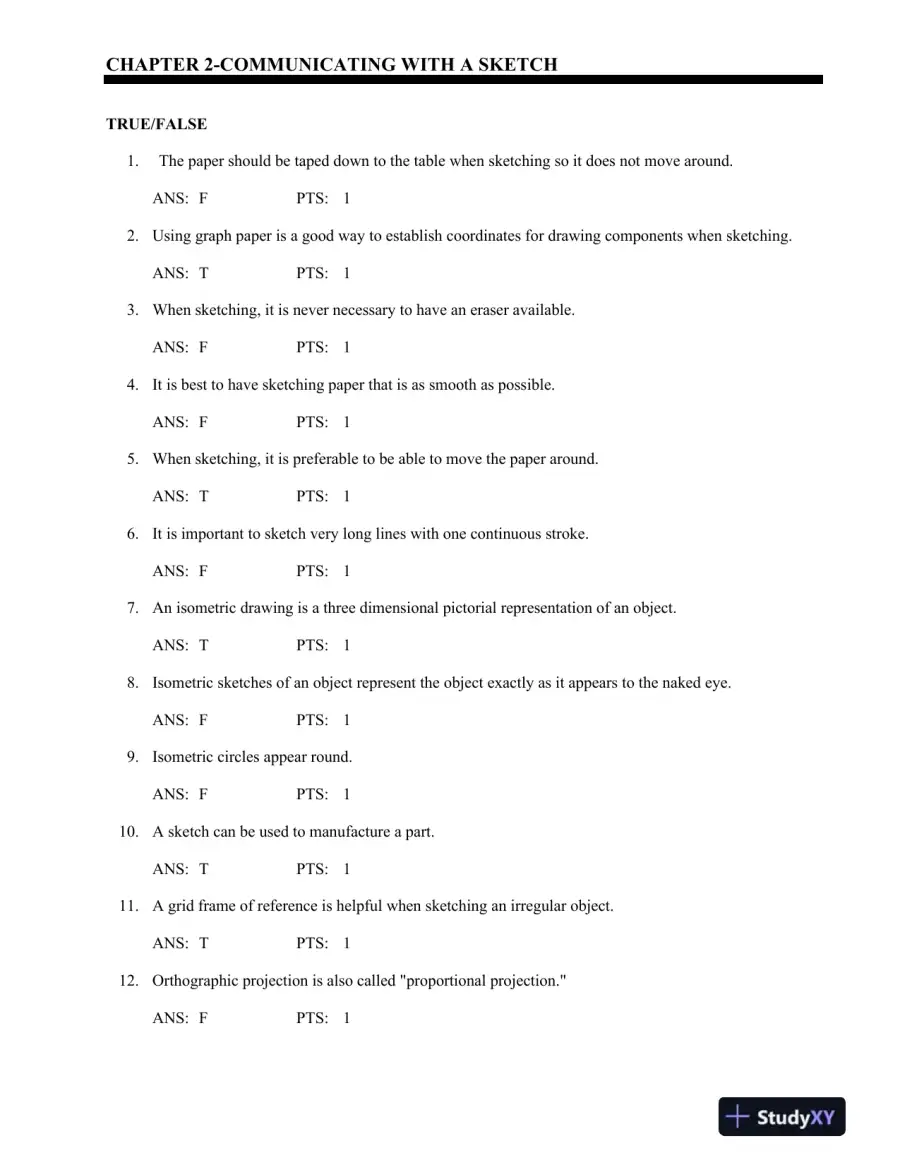

CHAPTER 2 - COMMUNICATING WITH A SKETCH TRUE/FALSE 1. The paper should be taped down to the table when sketching so it does not move around. ANS: F PTS: 1 2. Using graph paper is a good way to establish coordinates for drawing components when sketching. ANS: T PTS: 1 3. When sketching, it is never necessary to have an eraser available. ANS: F PTS: 1 4. It is best to have sketching paper that is as smooth as possible. ANS: F PTS: 1 5. When sketching, it is preferable to be able to move the paper around. ANS: T PTS: 1 6. It is important to sketch very long lines with one continuous stroke. ANS: F PTS: 1 7. An isometric drawing is a three dimensional pictorial representation of an object. ANS: T PTS: 1 8. Isometric sketches of an object represent the object exactly as it appears to the naked eye. ANS: F PTS: 1 9. Isometric circles appear round. ANS: F PTS: 1 10. A sketch can be used to manufacture a part. ANS: T PTS: 1 11. A grid frame of reference is helpful when sketching an irregular object. ANS: T PTS: 1 12. Orthographic projection is also called "proportional projection." ANS: F PTS: 1
Page 11 Read page 11 as text
13. To set up an isometric axis, you need three beginning lines. ANS: F PTS: 1 14. When making a three dimensional isometric view of an object, the most critical part of the construction is making sure the surrounding rectangular box has the proper proportions. ANS: T PTS: 1 15. It is important to sketch features of an object lightly by estimating distances within the rectangular box, which has already been drawn. ANS: T PTS: 1 16. Isometric lines are parallel to the isometric axes lines. ANS: T PTS: 1 17. Isometric lines are true length lines. ANS: T PTS: 1 18. Lettering on sketches does not need to be readable. ANS: F PTS: 1 19. In an isometric sketch, an isometric cube shows four sides. ANS: F PTS: 1 20. It is okay to sketch on a napkin at the coffee table while communication with a colleague. ANS: T PTS: 1 21. When sketching circles using the hand compass method, it is important to keep the pencil as independent from your hand as possible. ANS: F PTS: 1 22. There is no need for proportion when sketching an object. ANS: F PTS: 1 23. It is important to remember the relationships of the lines in terms of length and direction to one another. ANS: T PTS: 1 24. The common form of multiview alignment is one in which the front view is the most important view to select first. ANS: T PTS: 1 25. A multiview projection shows an object in a 3D picture.
Page 12 Read page 12 as text

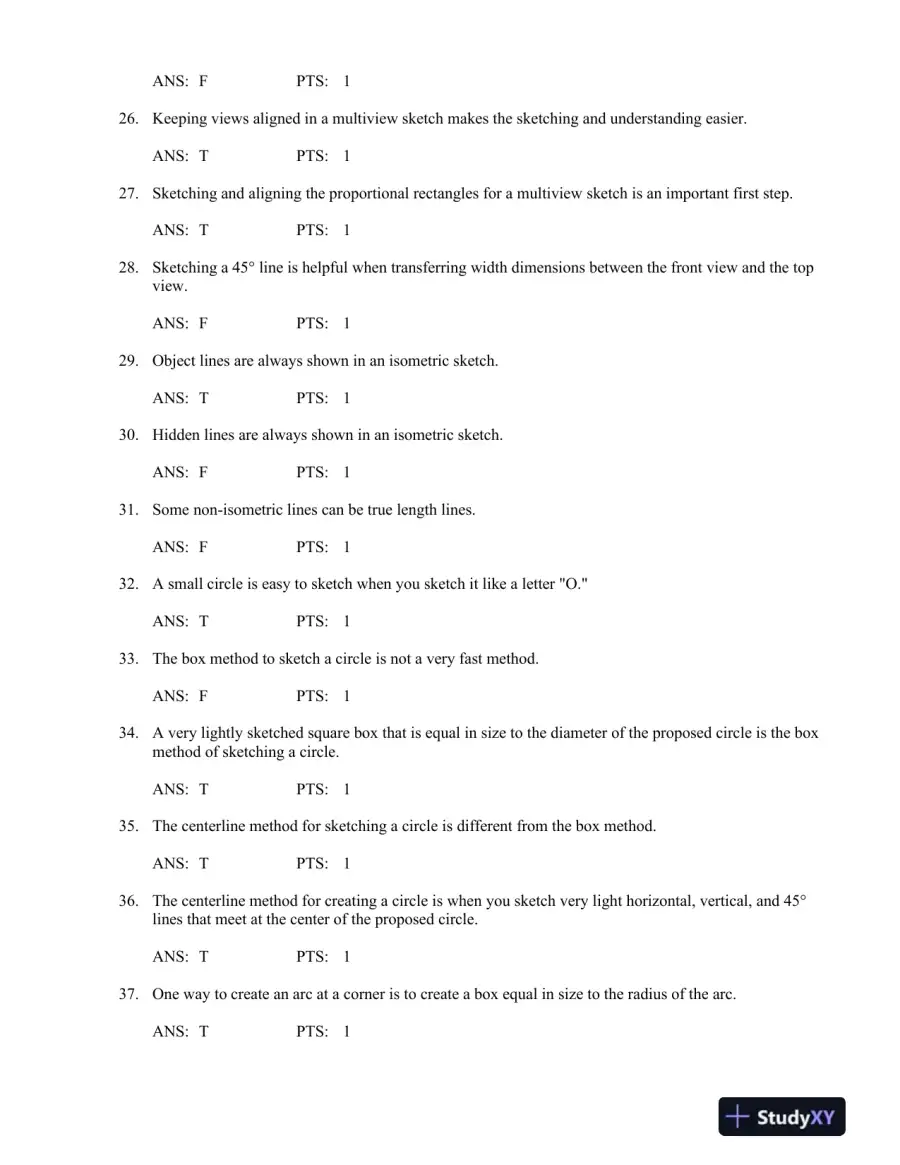

ANS: F PTS: 1 26. Keeping views aligned in a multiview sketch makes the sketching and understanding easier. ANS: T PTS: 1 27. Sketching and aligning the proportional rectangles for a multiview sketch is an important first step. ANS: T PTS: 1 28. Sketching a 45° line is helpful when transferring width dimensions between the front view and the top view. ANS: F PTS: 1 29. Object lines are always shown in an isometric sketch. ANS: T PTS: 1 30. Hidden lines are always shown in an isometric sketch. ANS: F PTS: 1 31. Some non - isometric lines can be true length lines. ANS: F PTS: 1 32. A small circle is easy to sketch when you sketch it like a letter "O." ANS: T PTS: 1 33. The box method to sketch a circle is not a very fast method. ANS: F PTS: 1 34. A very lightly sketched square box that is equal in size to the diameter of the proposed circle is the box method of sketching a circle. ANS: T PTS: 1 35. The centerline method for sketching a circle is different from the box method. ANS: T PTS: 1 36. The centerline method for creating a circle is when you sketch very light horizontal, vertical, and 45° lines that meet at the center of the proposed circle. ANS: T PTS: 1 37. One way to create an arc at a corner is to create a box equal in size to the radius of the arc. ANS: T PTS: 1
Page 13 Read page 13 as text

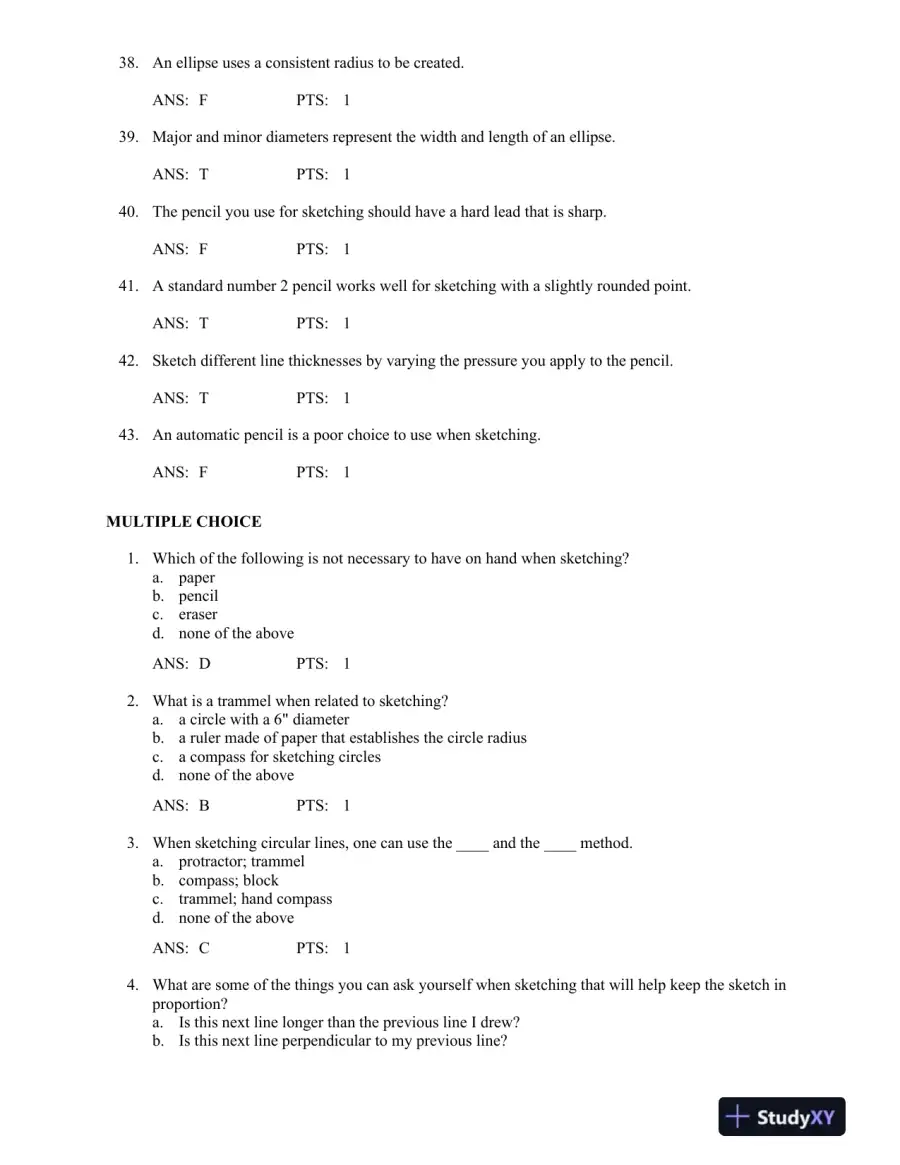

38. An ellipse uses a consistent radius to be created. ANS: F PTS: 1 39. Major and minor diameters represent the width and length of an ellipse. ANS: T PTS: 1 40. The pencil you use for sketching should have a hard lead that is sharp. ANS: F PTS: 1 41. A standard number 2 pencil works well for sketching with a slightly rounded point. ANS: T PTS: 1 42. Sketch different line thicknesses by varying the pressure you apply to the pencil. ANS: T PTS: 1 43. An automatic pencil is a poor choice to use when sketching. ANS: F PTS: 1 MULTIPLE CHOICE 1. Which of the following is not necessary to have on hand when sketching? a. paper b. pencil c. eraser d. none of the above ANS: D PTS: 1 2. What is a trammel when related to sketching? a. a circle with a 6" diameter b. a ruler made of paper that establishes the circle radius c. a compass for sketching circles d. none of the above ANS: B PTS: 1 3. When sketching circular lines, one can use the ____ and the ____ method. a. protractor; trammel b. compass; block c. trammel; hand compass d. none of the above ANS: C PTS: 1 4. What are some of the things you can ask yourself when sketching that will help keep the sketch in proportion? a. Is this next line longer than the previous line I drew? b. Is this next line perpendicular to my previous line?
Page 14 Read page 14 as text

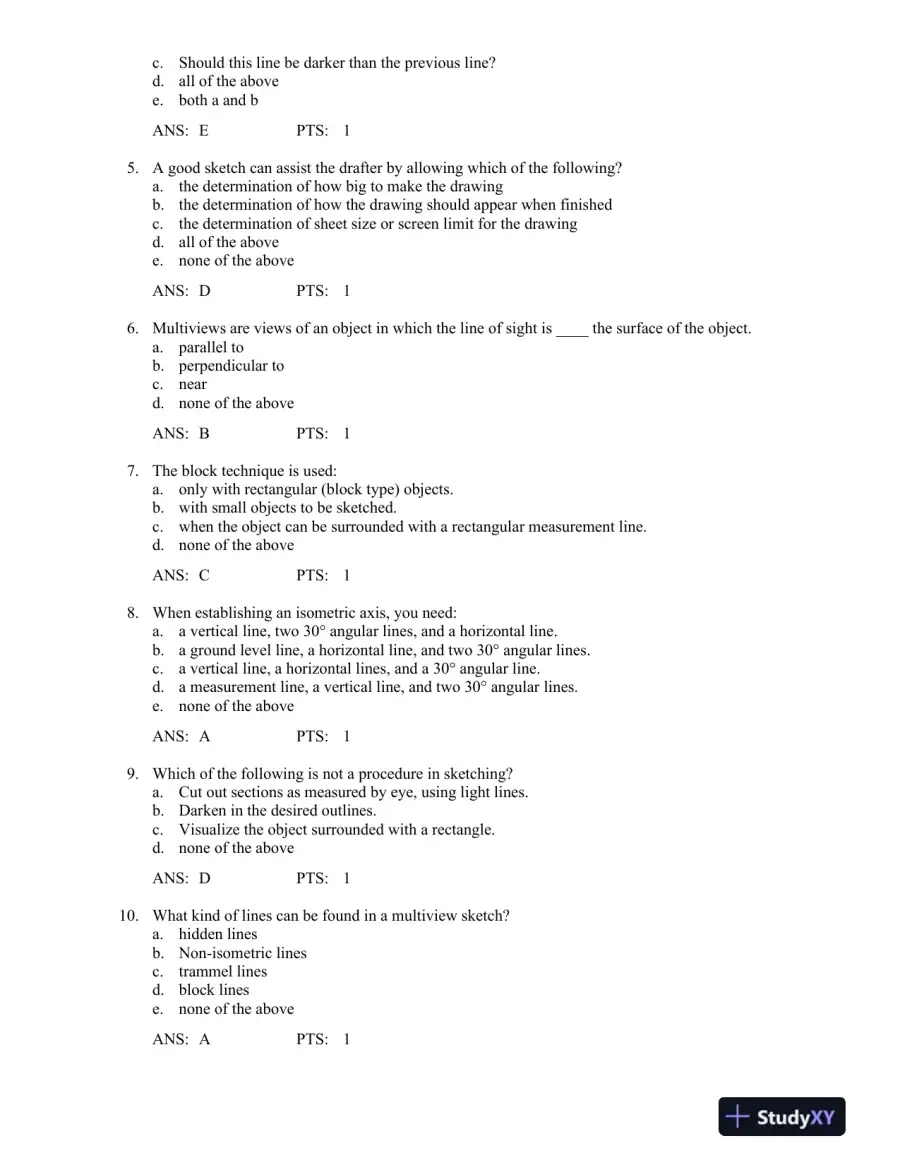

c. Should this line be darker than the previous line? d. all of the above e. both a and b ANS: E PTS: 1 5. A good sketch can assist the drafter by allowing which of the following? a. the determination of how big to make the drawing b. the determination of how the drawing should appear when finished c. the determination of sheet size or screen limit for the drawing d. all of the above e. none of the above ANS: D PTS: 1 6. Multiviews are views of an object in which the line of sight is ____ the surface of the object. a. parallel to b. perpendicular to c. near d. none of the above ANS: B PTS: 1 7. The block technique is used: a. only with rectangular (block type) objects. b. with small objects to be sketched. c. when the object can be surrounded with a rectangular measurement line. d. none of the above ANS: C PTS: 1 8. When establishing an isometric axis, you need: a. a vertical line, two 30° angular lines, and a horizontal line. b. a ground level line, a horizontal line, and two 30° angular lines. c. a vertical line, a horizontal lines, and a 30° angular line. d. a measurement line, a vertical line, and two 30° angular lines. e. none of the above ANS: A PTS: 1 9. Which of the following is not a procedure in sketching? a. Cut out sections as measured by eye, using light lines. b. Darken in the desired outlines. c. Visualize the object surrounded with a rectangle. d. none of the above ANS: D PTS: 1 10. What kind of lines can be found in a multiview sketch? a. hidden lines b. Non - isometric lines c. trammel lines d. block lines e. none of the above ANS: A PTS: 1
Page 15 Read page 15 as text

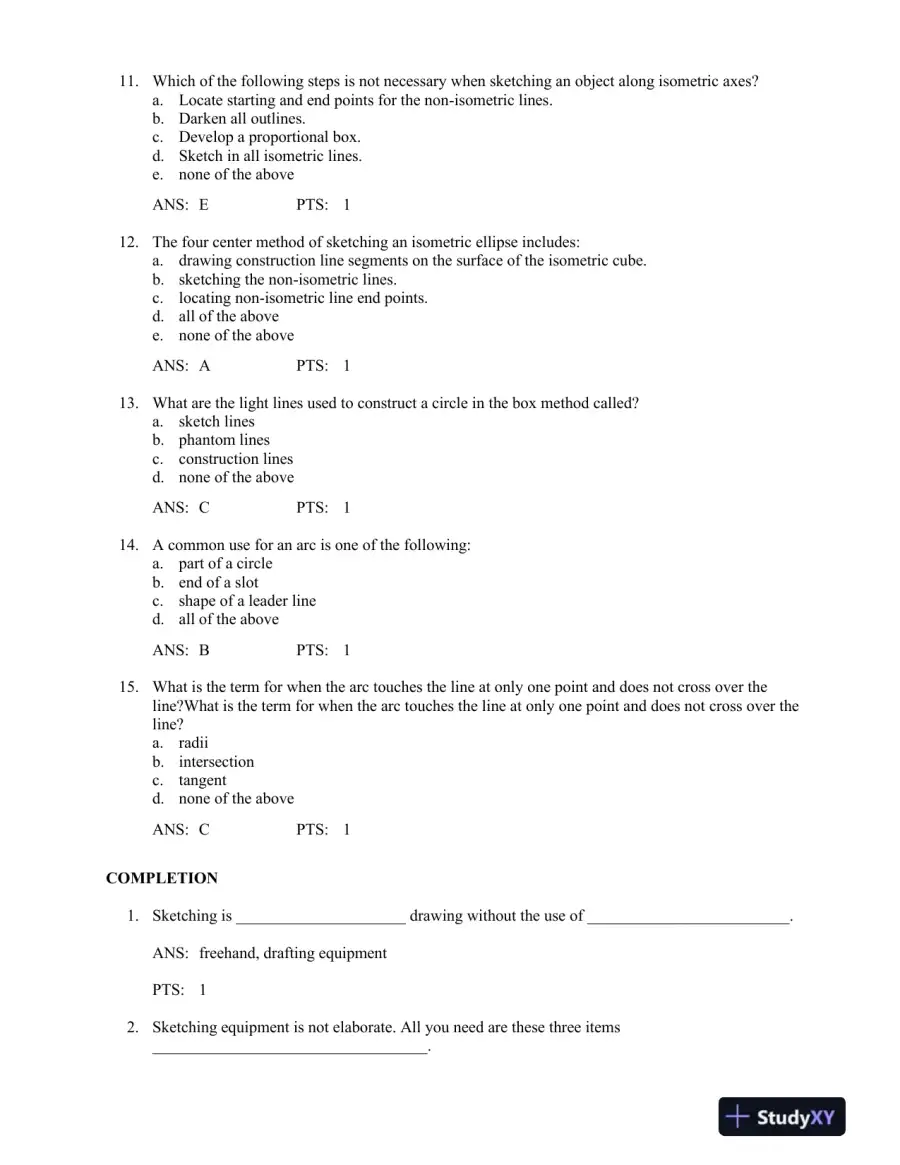

11. Which of the following steps is not necessary when sketching an object along isometric axes? a. Locate starting and end points for the non - isometric lines. b. Darken all outlines. c. Develop a proportional box. d. Sketch in all isometric lines. e. none of the above ANS: E PTS: 1 12. The four center method of sketching an isometric ellipse includes: a. drawing construction line segments on the surface of the isometric cube. b. sketching the non - isometric lines. c. locating non - isometric line end points. d. all of the above e. none of the above ANS: A PTS: 1 13. What are the light lines used to construct a circle in the box method called? a. sketch lines b. phantom lines c. construction lines d. none of the above ANS: C PTS: 1 14. A common u se for an arc is one of the following: a. part of a circle b. end of a slot c. shape of a leader line d. all of the above ANS: B PTS: 1 15. Wh at is the term for when the arc touches the line at only one point and does not cross over the line?What is the term for when the arc touches the line at only one point and does not cross over the line? a. radii b. intersection c. tangent d. none of the above ANS: C PTS: 1 COMPLETION 1. Sketching is _____________________ drawing without the use of _________________________. ANS: freehand, drafting equipment PTS: 1 2. Sketching equipment is not elaborate. All you need are these three items __________________________________.
Page 16 Read page 16 as text

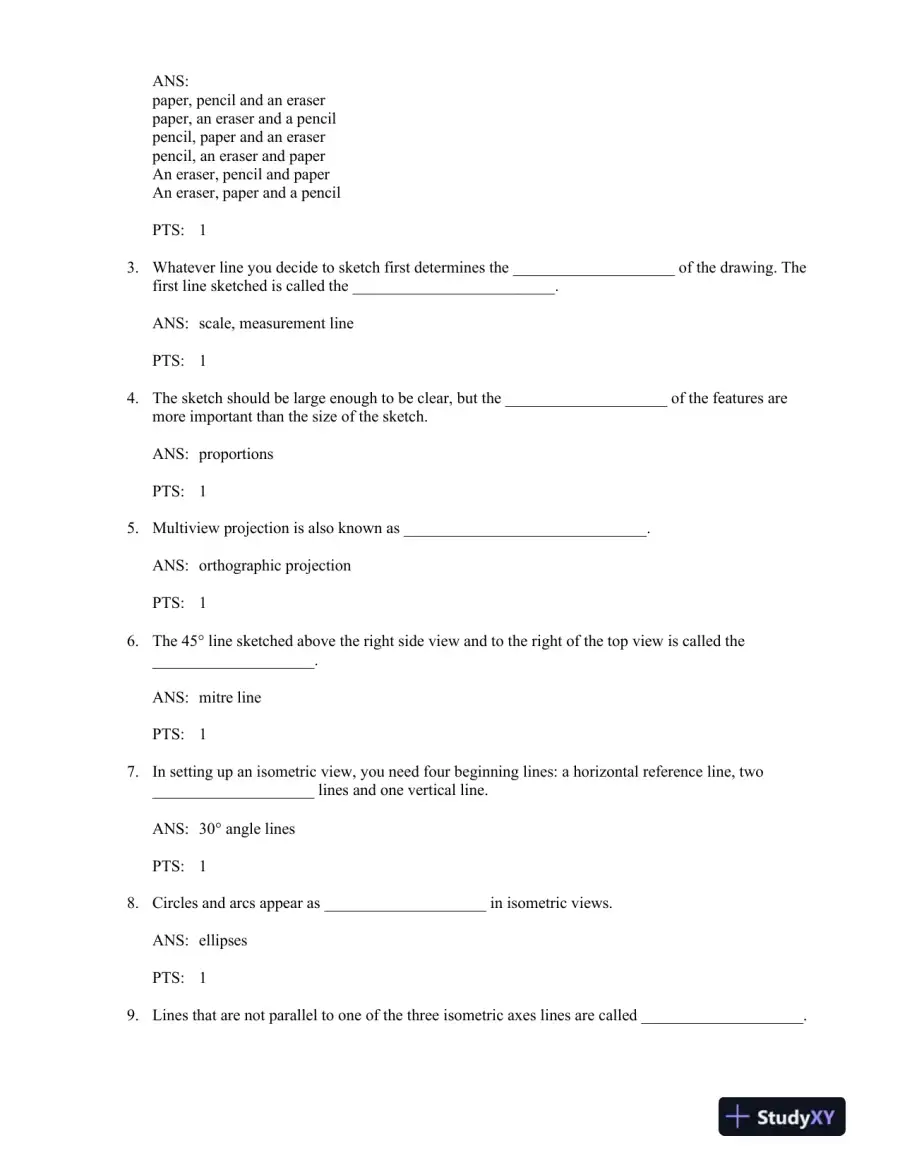

ANS: paper, pencil and an eraser paper, an eraser and a pencil pencil, paper and an eraser pencil, an eraser and paper An eraser, pencil and paper An eraser, paper and a pencil PTS: 1 3. Whatever line you decide to sketch first determines the ____________________ of the drawing. The first line sketched is called the _________________________. ANS: scale, measurement line PTS: 1 4. The sketch should be large enough to be clear, but the ____________________ of the features are more important than the size of the sketch. ANS: proportions PTS: 1 5. Multiview projection is also known as ______________________________. ANS: orthographic projection PTS: 1 6. The 45 line sketched above the right side view and to the right of the top view is called the ____________________. ANS: mitre line PTS: 1 7. In setting up an isometric view, you need four beginning lines: a horizontal reference line, two ____________________ lines and one vertical line. ANS: 30 angle lines PTS: 1 8. Circles and arcs appear as ____________________ in isometric views. ANS: ellipses PTS: 1 9. Lines that are not parallel to one of the three isometric axes lines are called ____________________.
