Analysis of Algorithms: Heapification, Minimum Spanning Tree, Inversions, Sorting, and Random-Select

This paper analyzes key algorithms in computer science, including heapification, minimum spanning trees, and sorting techniques.

Preview 3 of 8 pages

See the first 3 pages exactly as they appear in the document.

  1. Page 1
    Read page 1 as text

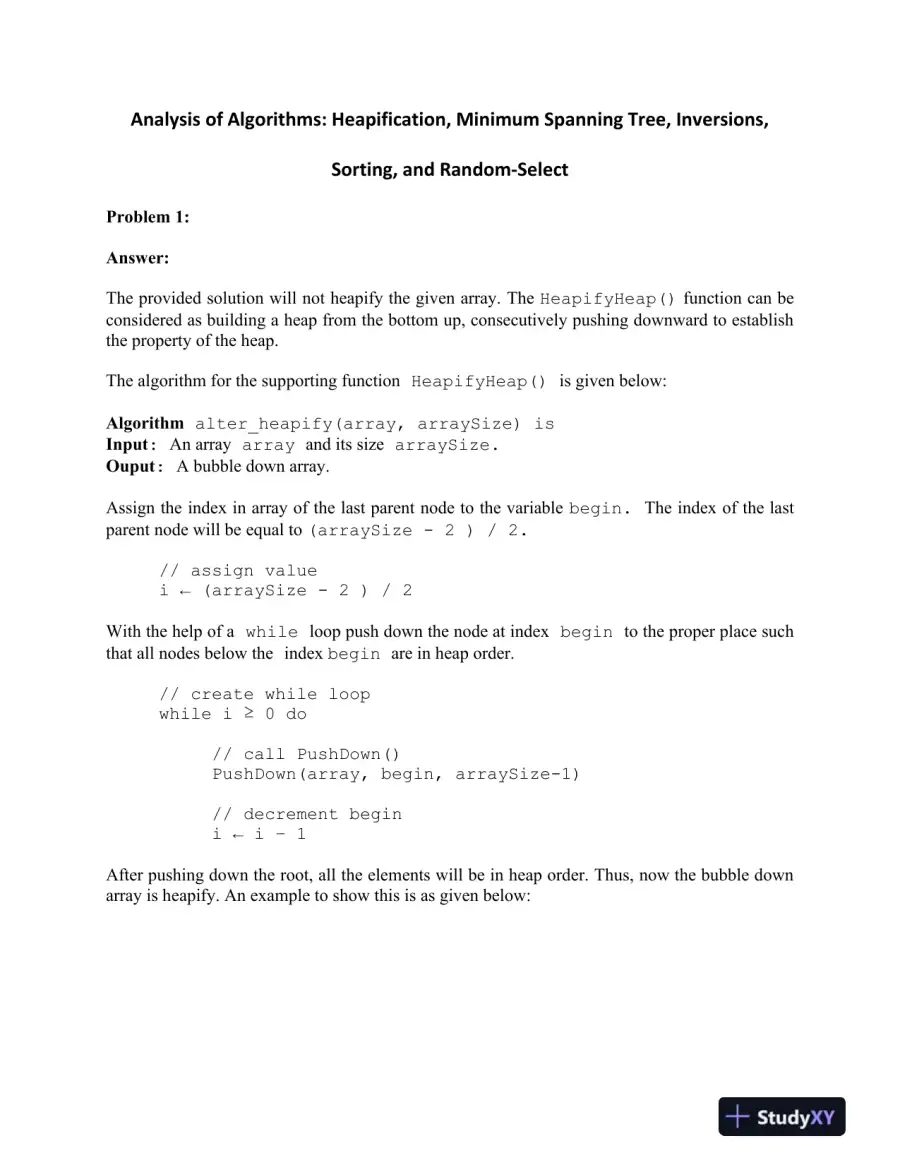

    Analysis of Algorithms: Heapification, Minimum Spanning Tree, Inversions, Sorting, and Random - Select Problem 1: Answer: The provided solution will not heapify the given array. The HeapifyHeap() function can be considered as building a heap from the bottom up, consecutively pushing downward to establish the property of the heap. The algorithm for the supporting function HeapifyHeap() is given below: Algorithm alter_heapify(array, arraySize) is Input : An array array and its size arraySize. Ouput : A bubble down array. Assign the index in array of the last parent node to the variable begin. The index of the last parent node will be equal to (arraySize - 2 ) / 2. // assign value i ← (arraySize - 2 ) / 2 With the help of a while loop push down the node at index begin to the proper place such that all nodes below the index begin are in heap order. // create while loop while i ≥ 0 do // call PushDown() PushDown(array, begin, arraySize - 1) // decrement begin i ← i – 1 After pushing down the root, all the elements will be in heap order. Thus, now the bubble down array is heapify. An example to show this is as given below:

  2. Page 2
  3. Page 3
    Read page 3 as text

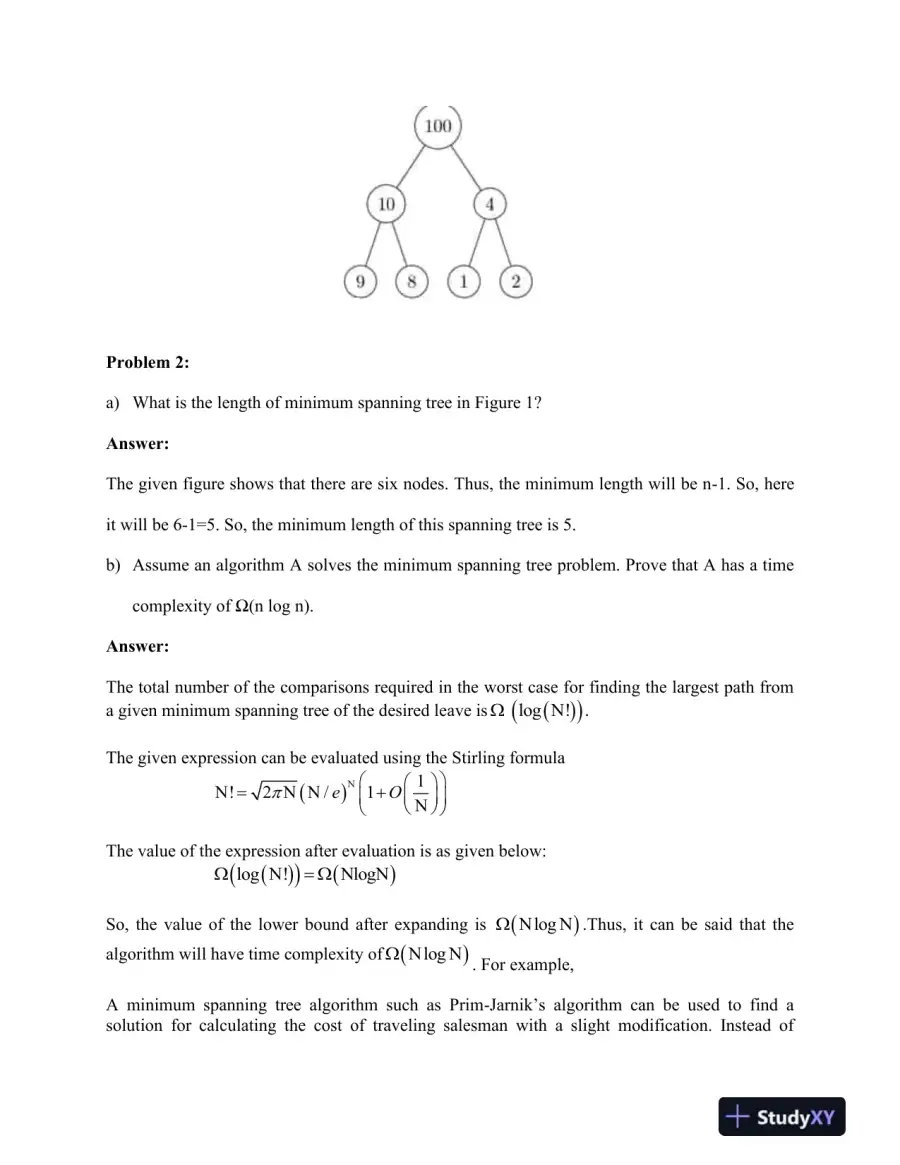

    Problem 2: a) What is the length of minimum spanning tree in Figure 1? Answer: The given figure shows that there are six nodes. Thus, the minimum length will be n - 1. So, here it will be 6 - 1=5. So, the minimum length of this spanning tree is 5. b) Assume an algorithm A solves the minimum spanning tree problem. Prove that A has a time complexity of Ω (n log n). Answer: The total number of the comparisons required in the worst case for finding the largest path from a given minimum spanning tree of the desired leave is ( ) ( ) log N!  . The given expression can be evaluated using the Stirling formula ( ) N 1 N! 2 N N / 1 N e O      = +         The value of the expression after evaluation is as given below: ( ) ( ) ( ) log N! NlogN  =  So, the value of the lower bound after expanding is ( ) Nlog N  . Thus, it can be said that the algorithm will have time complexity of ( ) Nlog N  . For example, A minimum spanning tree algorithm such as Prim - Jarnik’s algorithm can be used to find a solution for calculating the cost of traveling salesman with a slight modification. Instead of

5 more pages in the full document
