Solution Manual For System Dynamics, 3rd Edition

Get accurate solutions for your textbook problems with Solution Manual For System Dynamics, 3rd Edition, your go-to guide for textbook answers.

Preview 16 of 930 pages

See the first 16 pages exactly as they appear in the document.

  1. Page 1
    Read page 1 as text

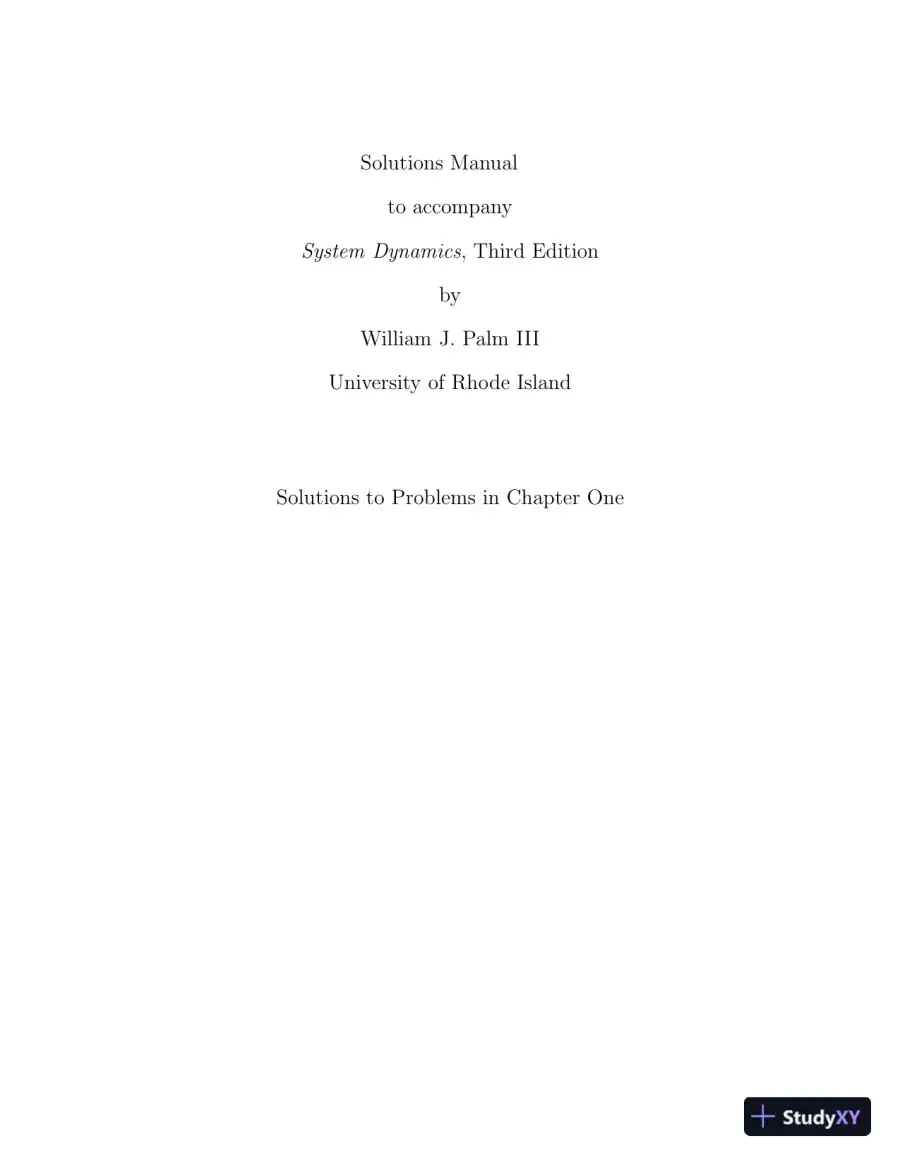

    Solutions Manual to accompany System Dynamics , Third Edition by William J. Palm III University of Rhode Island Solutions to Problems in Chapter One

  2. Page 2
  3. Page 3
    Read page 3 as text

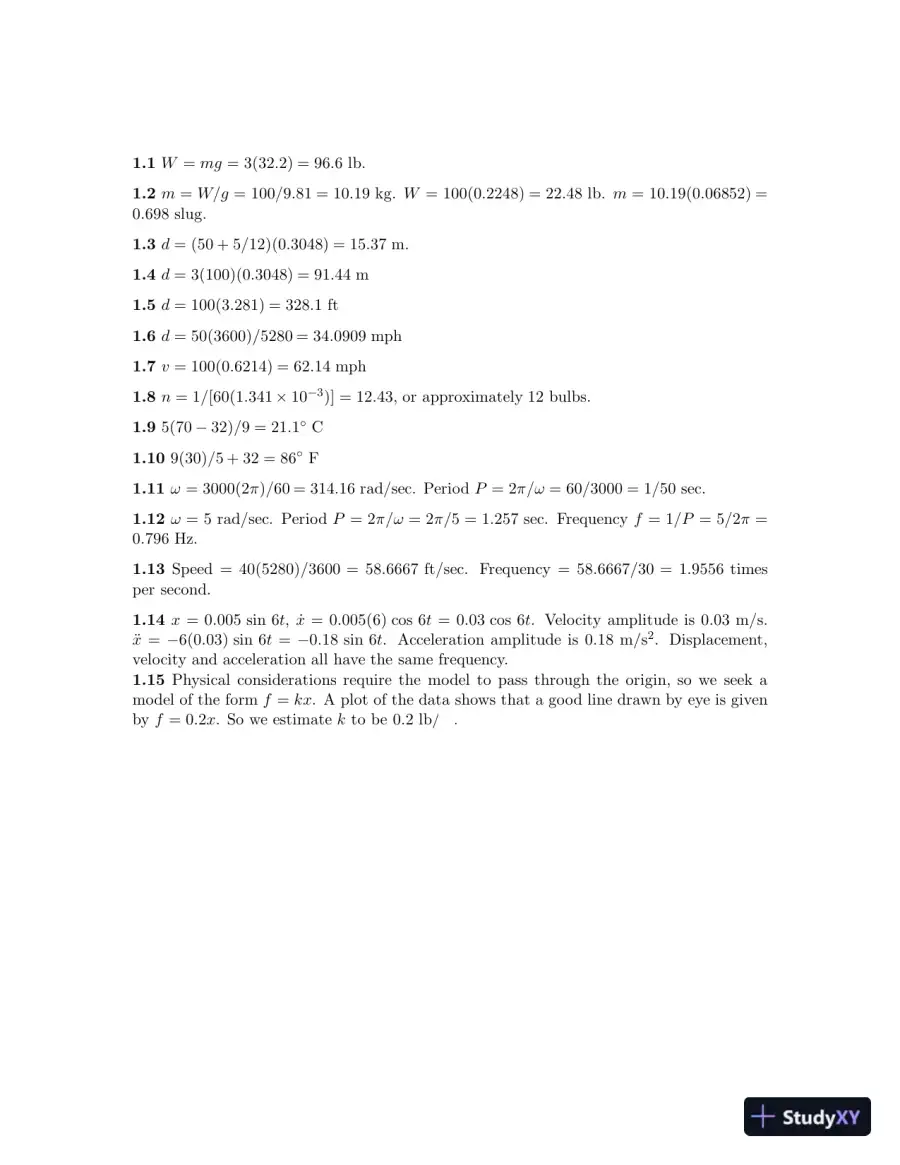

    1.1 W = mg = 3(32 . 2) = 96 . 6 lb. 1.2 m = W/g = 100 / 9 . 81 = 10 . 19 kg. W = 100(0 . 2248) = 22 . 48 lb. m = 10 . 19(0 . 06852) = 0 . 698 slug. 1.3 d = (50 + 5 / 12)(0 . 3048) = 15 . 37 m. 1.4 d = 3(100)(0 . 3048) = 91 . 44 m 1.5 d = 100(3 . 281) = 328 . 1 ft 1.6 d = 50(3600) / 5280 = 34 . 0909 mph 1.7 v = 100(0 . 6214) = 62 . 14 mph 1.8 n = 1 / [60(1 . 341 × 10 − 3 )] = 12 . 43, or approximately 12 bulbs. 1.9 5(70 − 32) / 9 = 21 . 1 ◦ C 1.10 9(30) / 5 + 32 = 86 ◦ F 1.11 ω = 3000(2 π ) / 60 = 314 . 16 rad/sec. Period P = 2 π/ω = 60 / 3000 = 1 / 50 sec. 1.12 ω = 5 rad/sec. Period P = 2 π/ω = 2 π/ 5 = 1 . 257 sec. Frequency f = 1 /P = 5 / 2 π = 0 . 796 Hz. 1.13 Speed = 40(5280) / 3600 = 58 . 6667 ft/sec. Frequency = 58 . 6667 / 30 = 1 . 9556 times per second. 1.14 x = 0 . 005 sin 6 t , ˙ x = 0 . 005(6) cos 6 t = 0 . 03 cos 6 t . Velocity amplitude is 0.03 m/s. ¨ x = − 6(0 . 03) sin 6 t = − 0 . 18 sin 6 t . Acceleration amplitude is 0.18 m/s 2 . Displacement, velocity and acceleration all have the same frequency. 1.15 Physical considerations require the model to pass through the origin, so we seek a model of the form f = kx . A plot of the data shows that a good line drawn by eye is given by f = 0 . 2 x . So we estimate k to be 0.2 lb/ .

  4. Page 4
    Read page 4 as text

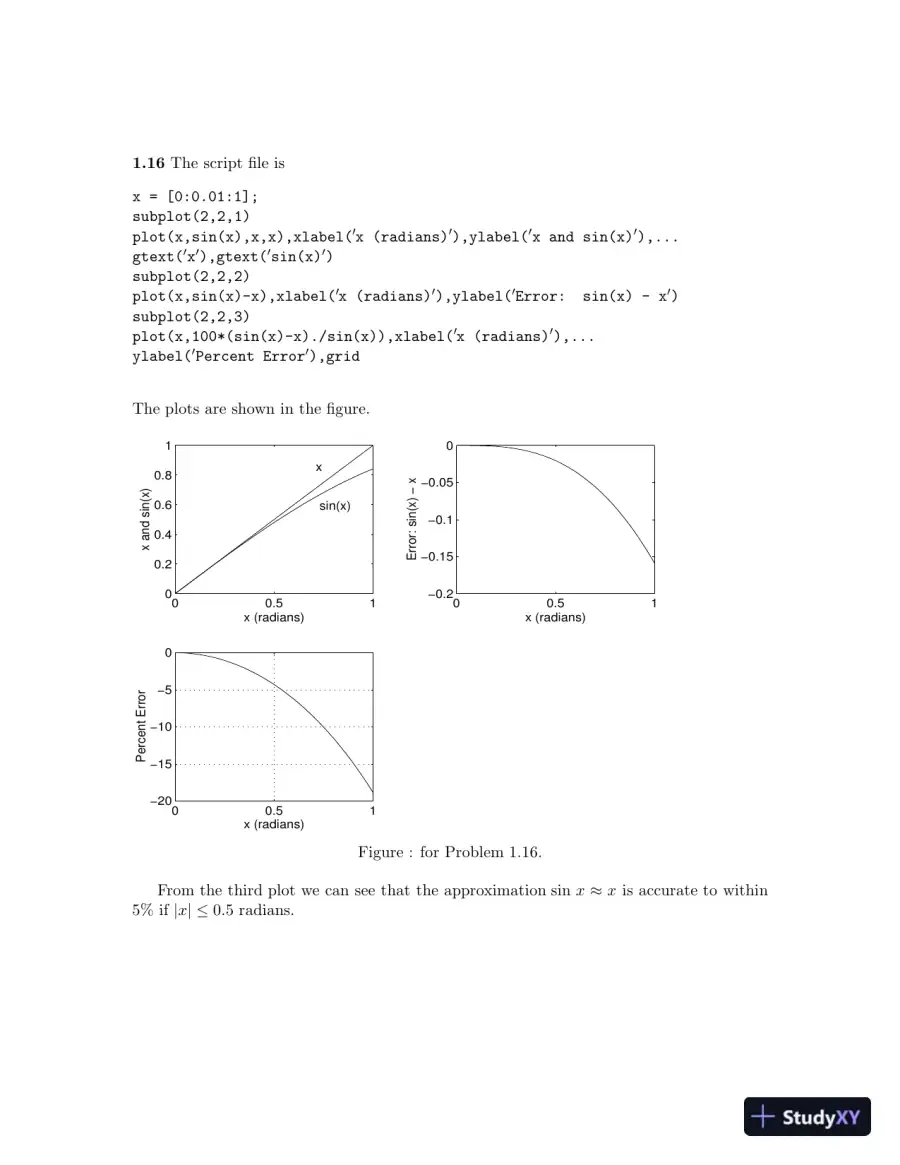

    1.16 The script file is x = [0:0.01:1]; subplot(2,2,1) plot(x,sin(x),x,x),xlabel( ′ x (radians) ′ ),ylabel( ′ x and sin(x) ′ ),... gtext( ′ x ′ ),gtext( ′ sin(x) ′ ) subplot(2,2,2) plot(x,sin(x)-x),xlabel( ′ x (radians) ′ ),ylabel( ′ Error: sin(x) - x ′ ) subplot(2,2,3) plot(x,100*(sin(x)-x)./sin(x)),xlabel( ′ x (radians) ′ ),... ylabel( ′ Percent Error ′ ),grid The plots are shown in the figure. 0 0.5 1 0 0.2 0.4 0.6 0.8 1 x (radians) x and sin(x) x sin(x) 0 0.5 1 −0.2 −0.15 −0.1 −0.05 0 x (radians) Error: sin(x) − x 0 0.5 1 −20 −15 −10 −5 0 x (radians) Percent Error Figure : for Problem 1.16. From the third plot we can see that the approximation sin x ≈ x is accurate to within 5% if | x | ≤ 0 . 5 radians.

  5. Page 5
    Read page 5 as text

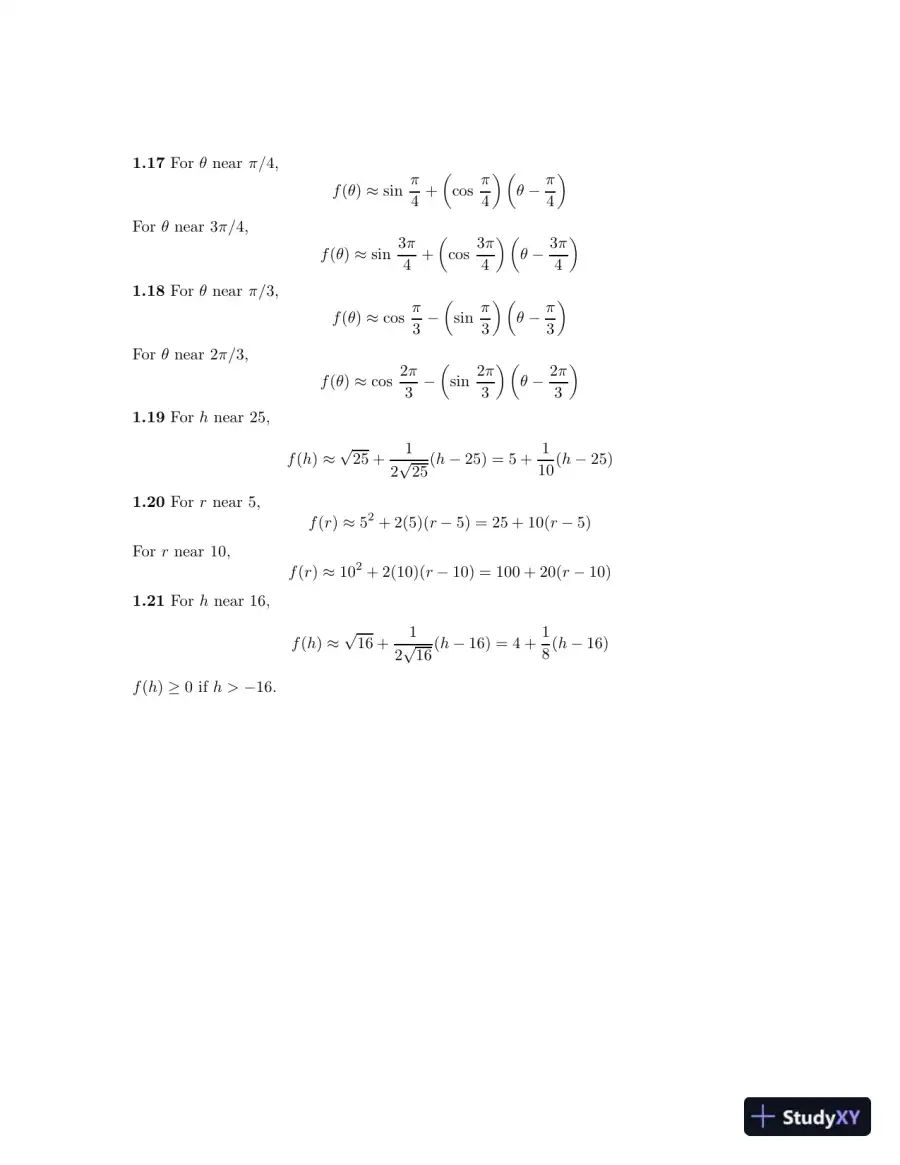

    1.17 For θ near π/ 4, f ( θ ) ≈ sin π 4 + ( cos π 4 ) ( θ − π 4 ) For θ near 3 π/ 4, f ( θ ) ≈ sin 3 π 4 + ( cos 3 π 4 ) ( θ − 3 π 4 ) 1.18 For θ near π/ 3, f ( θ ) ≈ cos π 3 − ( sin π 3 ) ( θ − π 3 ) For θ near 2 π/ 3, f ( θ ) ≈ cos 2 π 3 − ( sin 2 π 3 ) ( θ − 2 π 3 ) 1.19 For h near 25, f ( h ) ≈ √ 25 + 1 2 √ 25 ( h − 25) = 5 + 1 10 ( h − 25) 1.20 For r near 5, f ( r ) ≈ 5 2 + 2(5)( r − 5) = 25 + 10( r − 5) For r near 10, f ( r ) ≈ 10 2 + 2(10)( r − 10) = 100 + 20( r − 10) 1.21 For h near 16, f ( h ) ≈ √ 16 + 1 2 √ 16 ( h − 16) = 4 + 1 8 ( h − 16) f ( h ) ≥ 0 if h > − 16.

  6. Page 6
    Read page 6 as text

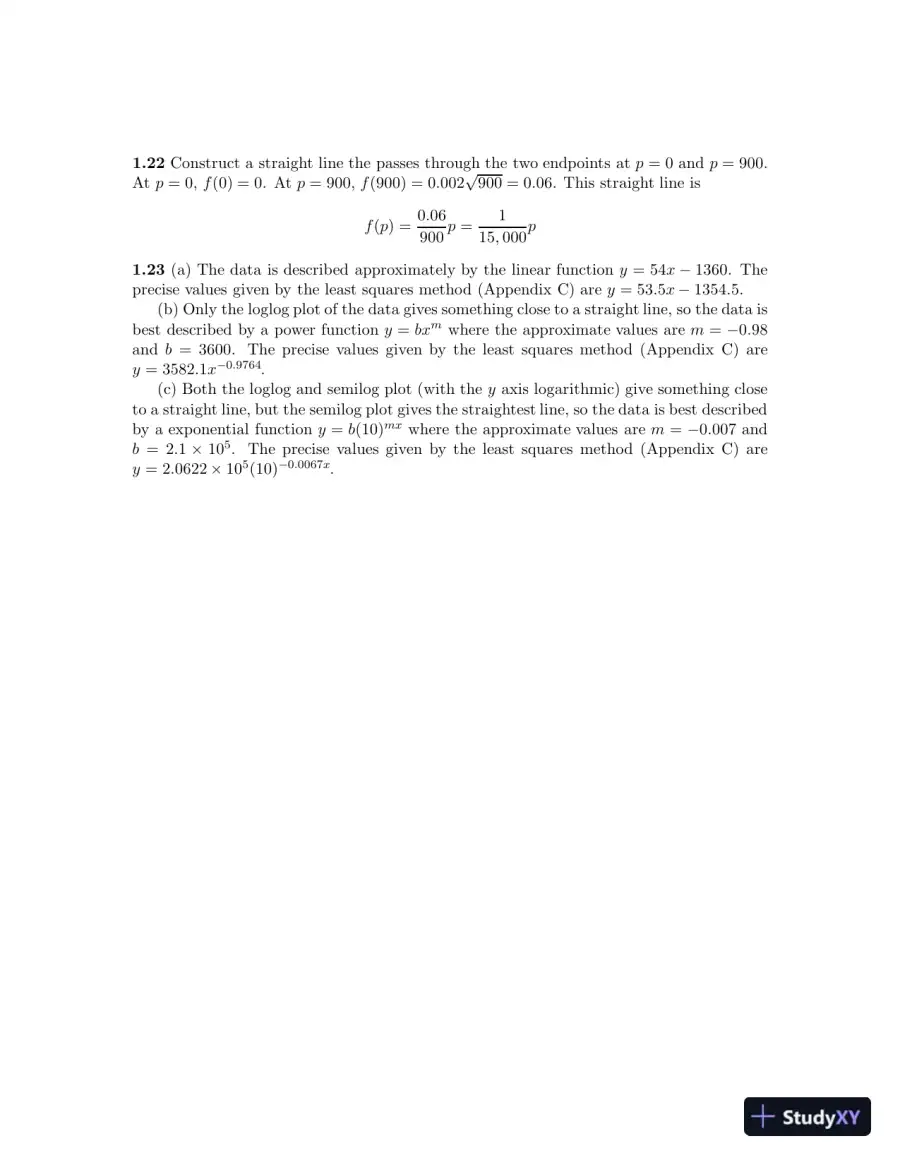

    1.22 Construct a straight line the passes through the two endpoints at p = 0 and p = 900. At p = 0, f (0) = 0. At p = 900, f (900) = 0 . 002 √ 900 = 0 . 06. This straight line is f ( p ) = 0 . 06 900 p = 1 15 , 000 p 1.23 (a) The data is described approximately by the linear function y = 54 x − 1360. The precise values given by the least squares method (Appendix C) are y = 53 . 5 x − 1354 . 5. (b) Only the loglog plot of the data gives something close to a straight line, so the data is best described by a power function y = bx m where the approximate values are m = − 0 . 98 and b = 3600. The precise values given by the least squares method (Appendix C) are y = 3582 . 1 x − 0 . 9764 . (c) Both the loglog and semilog plot (with the y axis logarithmic) give something close to a straight line, but the semilog plot gives the straightest line, so the data is best described by a exponential function y = b (10) mx where the approximate values are m = − 0 . 007 and b = 2 . 1 × 10 5 . The precise values given by the least squares method (Appendix C) are y = 2 . 0622 × 10 5 (10) − 0 . 0067 x .

  7. Page 7
    Read page 7 as text

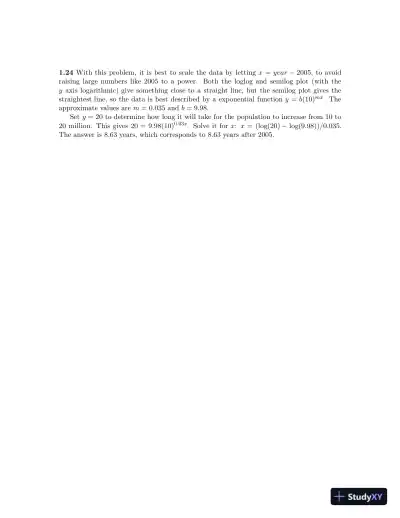

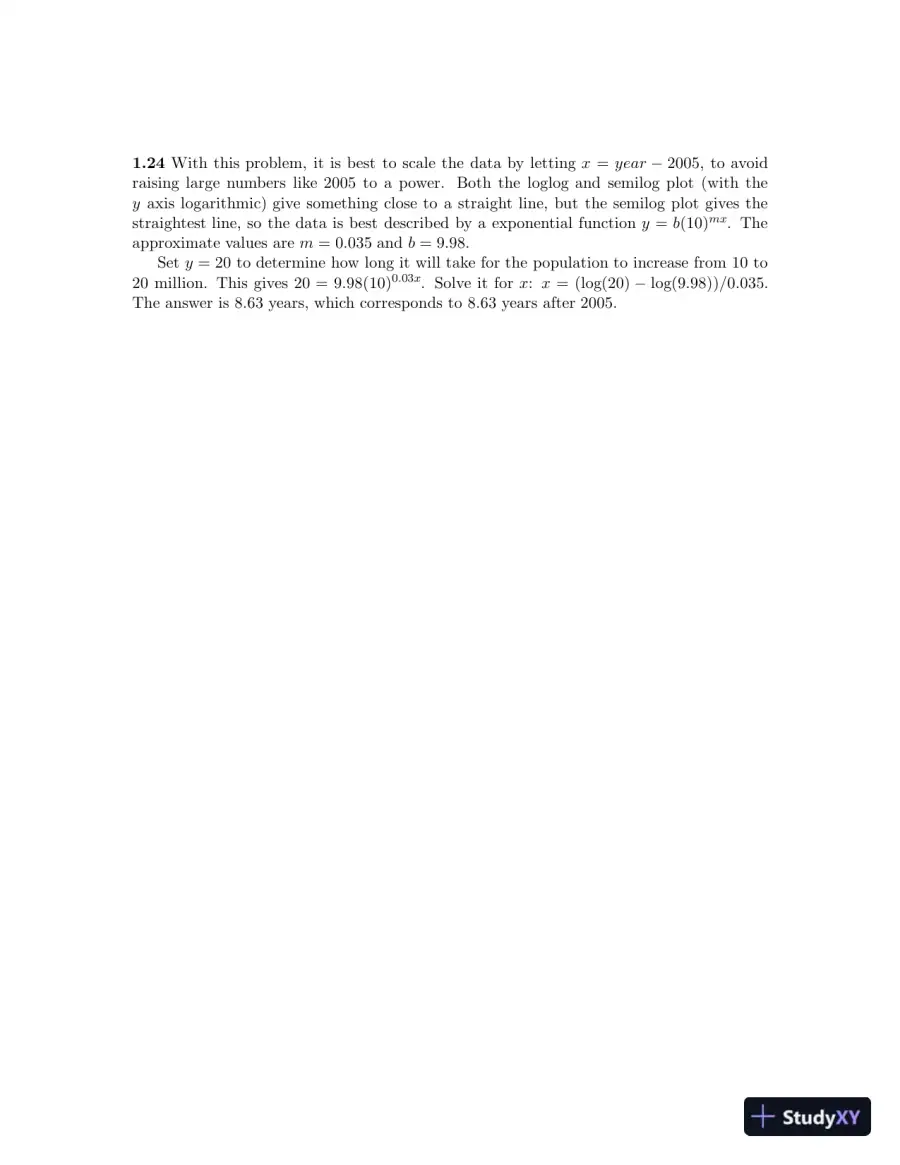

    1.24 With this problem, it is best to scale the data by letting x = year − 2005, to avoid raising large numbers like 2005 to a power. Both the loglog and semilog plot (with the y axis logarithmic) give something close to a straight line, but the semilog plot gives the straightest line, so the data is best described by a exponential function y = b (10) mx . The approximate values are m = 0 . 035 and b = 9 . 98. Set y = 20 to determine how long it will take for the population to increase from 10 to 20 million. This gives 20 = 9 . 98(10) 0 . 03 x . Solve it for x : x = (log(20) − log(9 . 98)) / 0 . 035. The answer is 8.63 years, which corresponds to 8.63 years after 2005.

  8. Page 8
    Read page 8 as text

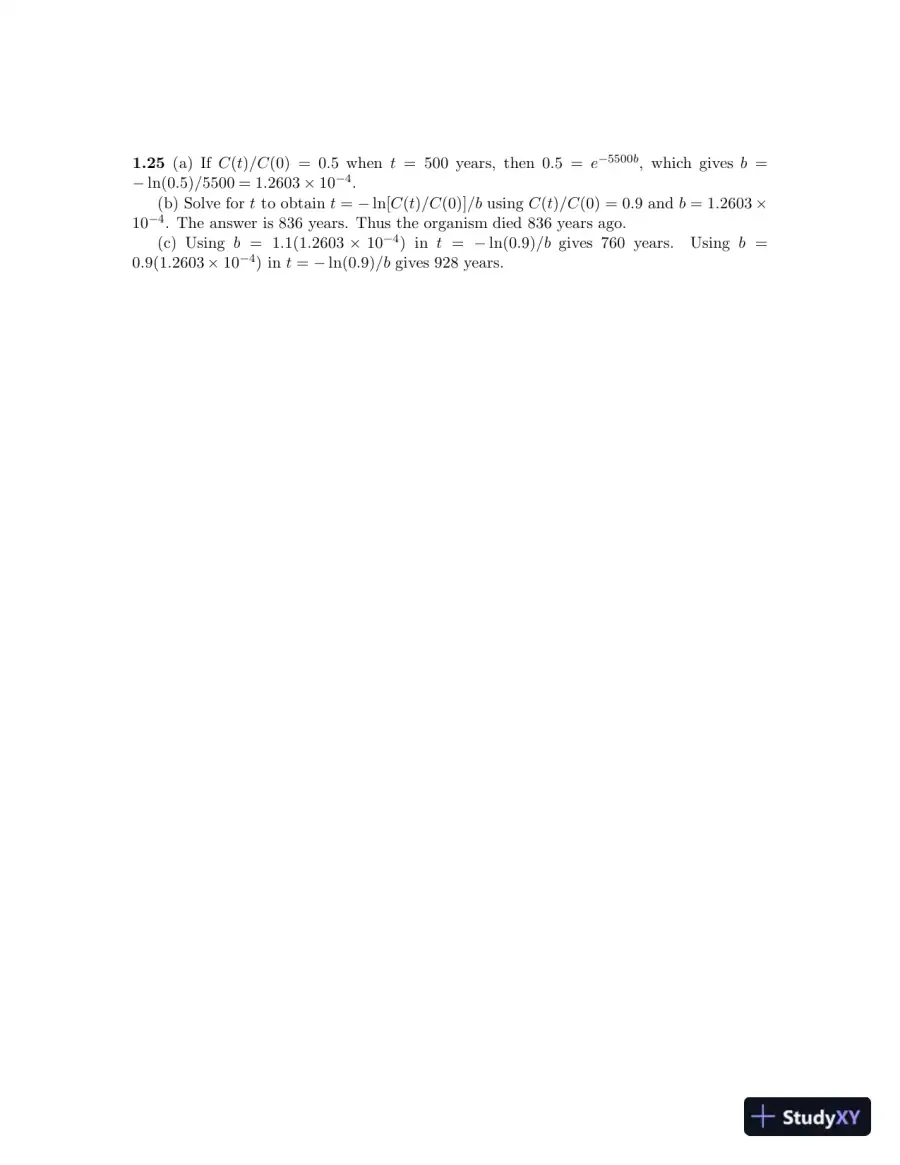

    1.25 (a) If C ( t ) /C (0) = 0 . 5 when t = 500 years, then 0 . 5 = e − 5500 b , which gives b = − ln(0 . 5) / 5500 = 1 . 2603 × 10 − 4 . (b) Solve for t to obtain t = − ln[ C ( t ) /C (0)] /b using C ( t ) /C (0) = 0 . 9 and b = 1 . 2603 × 10 − 4 . The answer is 836 years. Thus the organism died 836 years ago. (c) Using b = 1 . 1(1 . 2603 × 10 − 4 ) in t = − ln(0 . 9) /b gives 760 years. Using b = 0 . 9(1 . 2603 × 10 − 4 ) in t = − ln(0 . 9) /b gives 928 years.

  9. Page 9
    Read page 9 as text

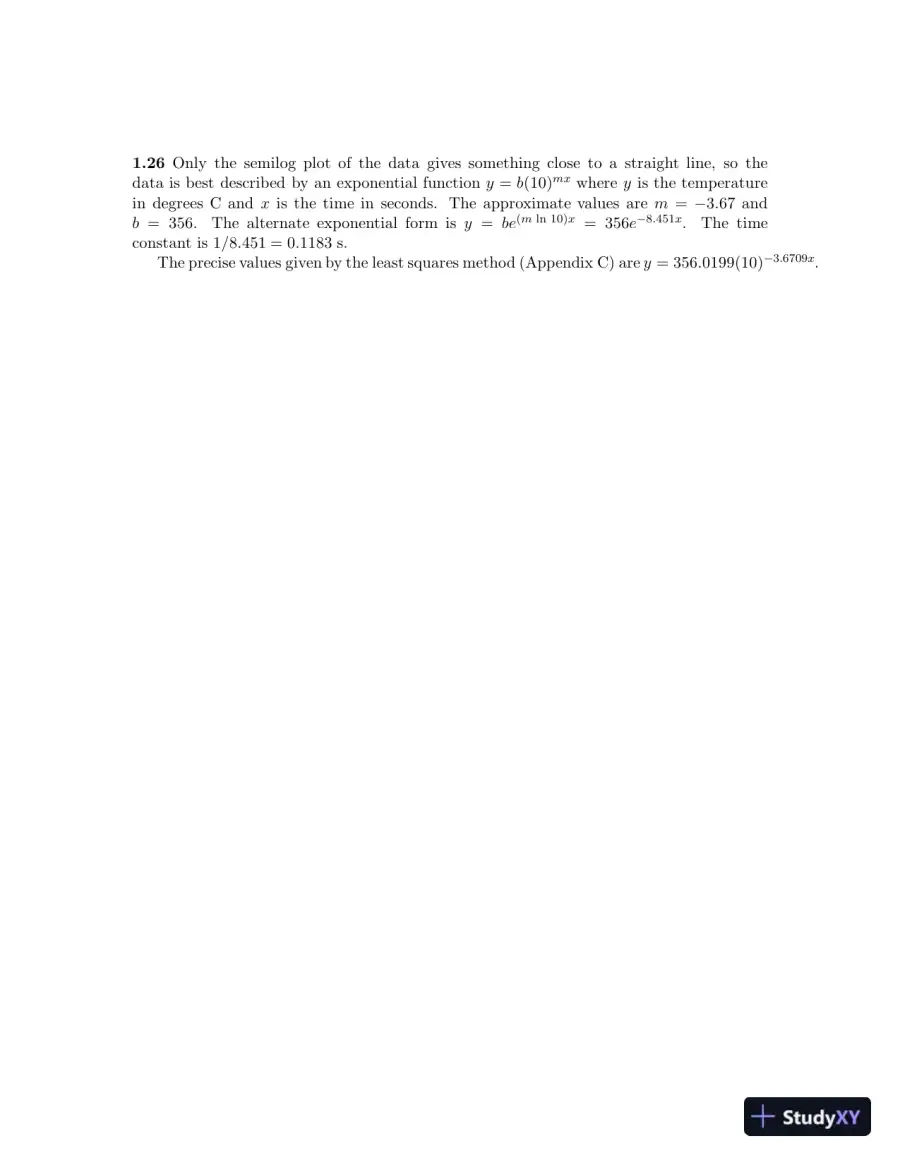

    1.26 Only the semilog plot of the data gives something close to a straight line, so the data is best described by an exponential function y = b (10) mx where y is the temperature in degrees C and x is the time in seconds. The approximate values are m = − 3 . 67 and b = 356. The alternate exponential form is y = be ( m ln 10) x = 356 e − 8 . 451 x . The time constant is 1 / 8 . 451 = 0 . 1183 s. The precise values given by the least squares method (Appendix C) are y = 356 . 0199(10) − 3 . 6709 x .

  10. Page 10
    Read page 10 as text

    1.27 Only the semilog plot of the data gives something close to a straight line, so the data is best described by an exponential function y = b (10) mx where y is the bearing life thousands of hours and x is the temperature in degrees F. The approximate values are m = − 0 . 007 and b = 142. The bearing life at 150 ◦ F is estimated to be y = 142(10) − 0 . 007(150) = 12 . 66, or 12,600 hours. The alternate exponential form is y = be ( m ln 10) x = 142 e − 0 . 0161 x . The time constant is 1 / 0 . 0161 = 62 . 1 or 6 . 21 × 10 4 hr. The precise values given by the least squares method (Appendix C) are y = 141 . 8603(10) − 0 . 0070 x .

  11. Page 11
    Read page 11 as text

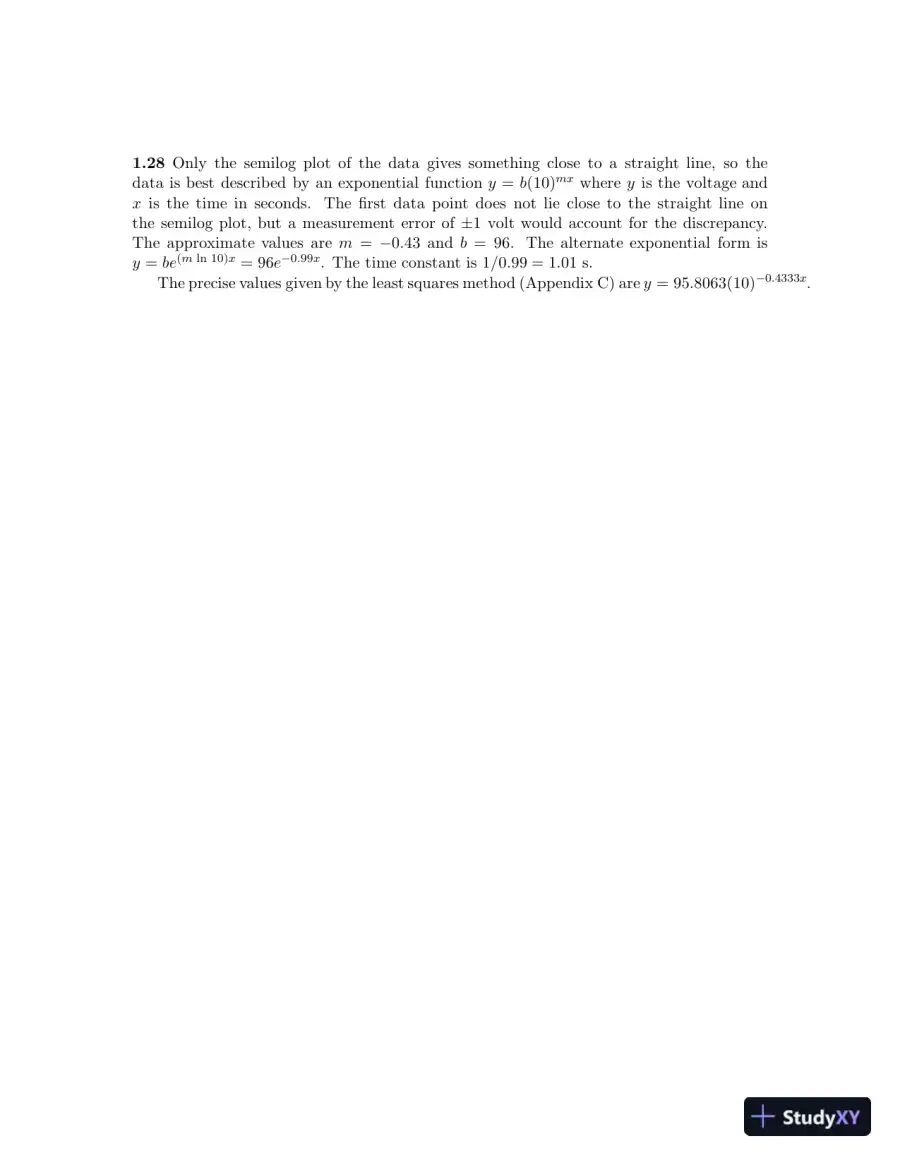

    1.28 Only the semilog plot of the data gives something close to a straight line, so the data is best described by an exponential function y = b (10) mx where y is the voltage and x is the time in seconds. The first data point does not lie close to the straight line on the semilog plot, but a measurement error of ± 1 volt would account for the discrepancy. The approximate values are m = − 0 . 43 and b = 96. The alternate exponential form is y = be ( m ln 10) x = 96 e − 0 . 99 x . The time constant is 1 / 0 . 99 = 1 . 01 s. The precise values given by the least squares method (Appendix C) are y = 95 . 8063(10) − 0 . 4333 x .

  12. Page 12
    Read page 12 as text

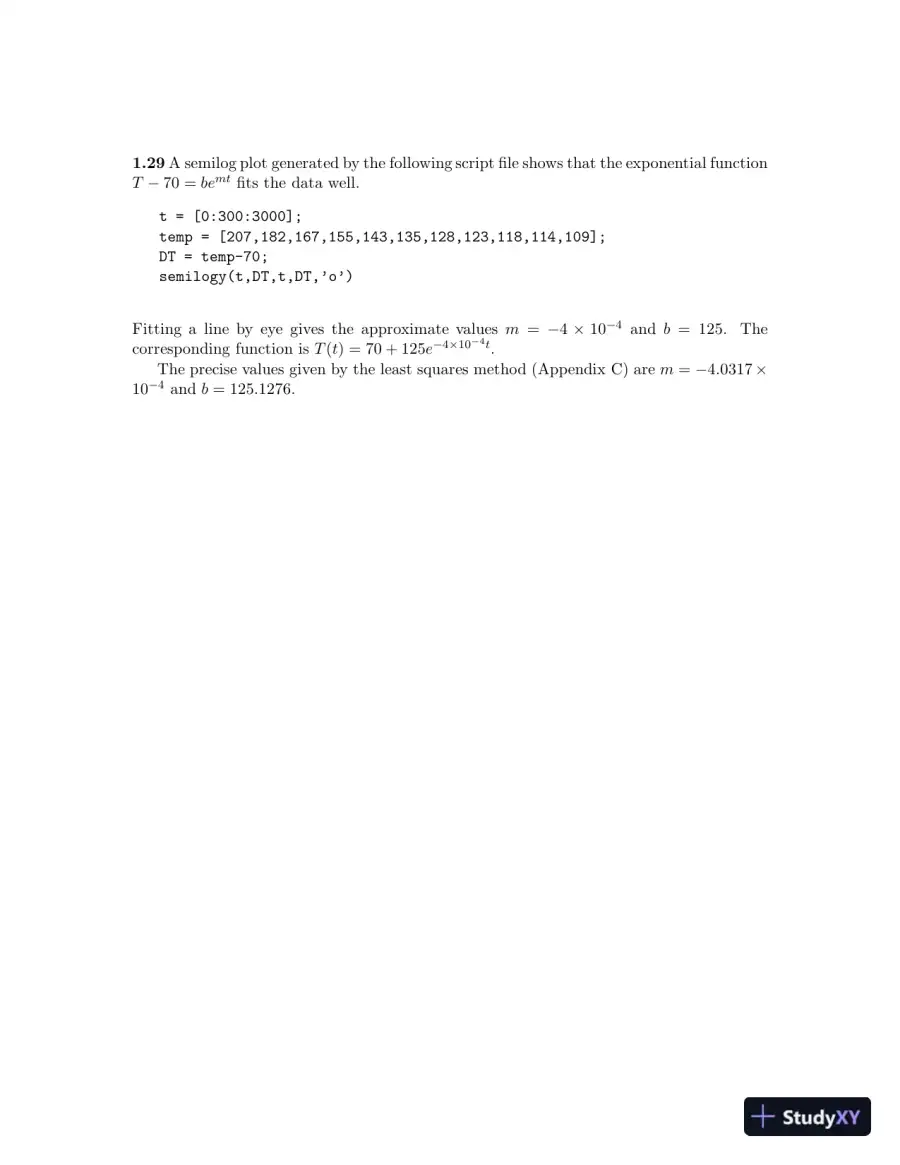

    1.29 A semilog plot generated by the following script file shows that the exponential function T − 70 = be mt fits the data well. t = [0:300:3000]; temp = [207,182,167,155,143,135,128,123,118,114,109]; DT = temp-70; semilogy(t,DT,t,DT,’o’) Fitting a line by eye gives the approximate values m = − 4 × 10 − 4 and b = 125. The corresponding function is T ( t ) = 70 + 125 e − 4 × 10 − 4 t . The precise values given by the least squares method (Appendix C) are m = − 4 . 0317 × 10 − 4 and b = 125 . 1276.

  13. Page 13
    Read page 13 as text

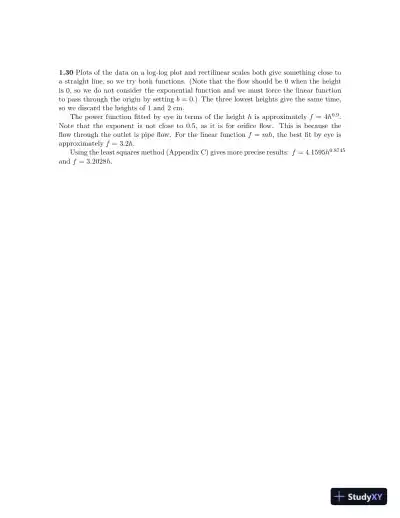

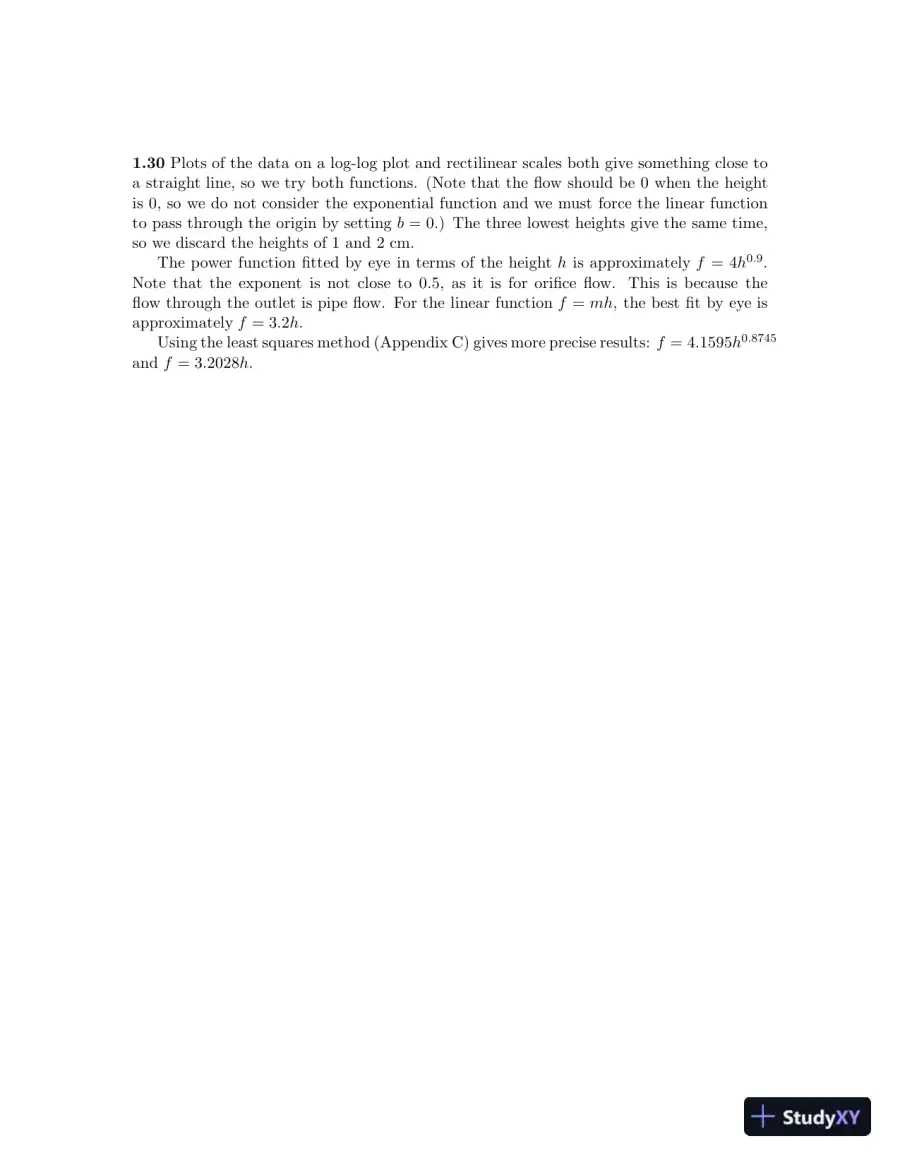

    1.30 Plots of the data on a log-log plot and rectilinear scales both give something close to a straight line, so we try both functions. (Note that the flow should be 0 when the height is 0, so we do not consider the exponential function and we must force the linear function to pass through the origin by setting b = 0.) The three lowest heights give the same time, so we discard the heights of 1 and 2 cm. The power function fitted by eye in terms of the height h is approximately f = 4 h 0 . 9 . Note that the exponent is not close to 0.5, as it is for orifice flow. This is because the flow through the outlet is pipe flow. For the linear function f = mh , the best fit by eye is approximately f = 3 . 2 h . Using the least squares method (Appendix C) gives more precise results: f = 4 . 1595 h 0 . 8745 and f = 3 . 2028 h .

  14. Page 14
    Read page 14 as text

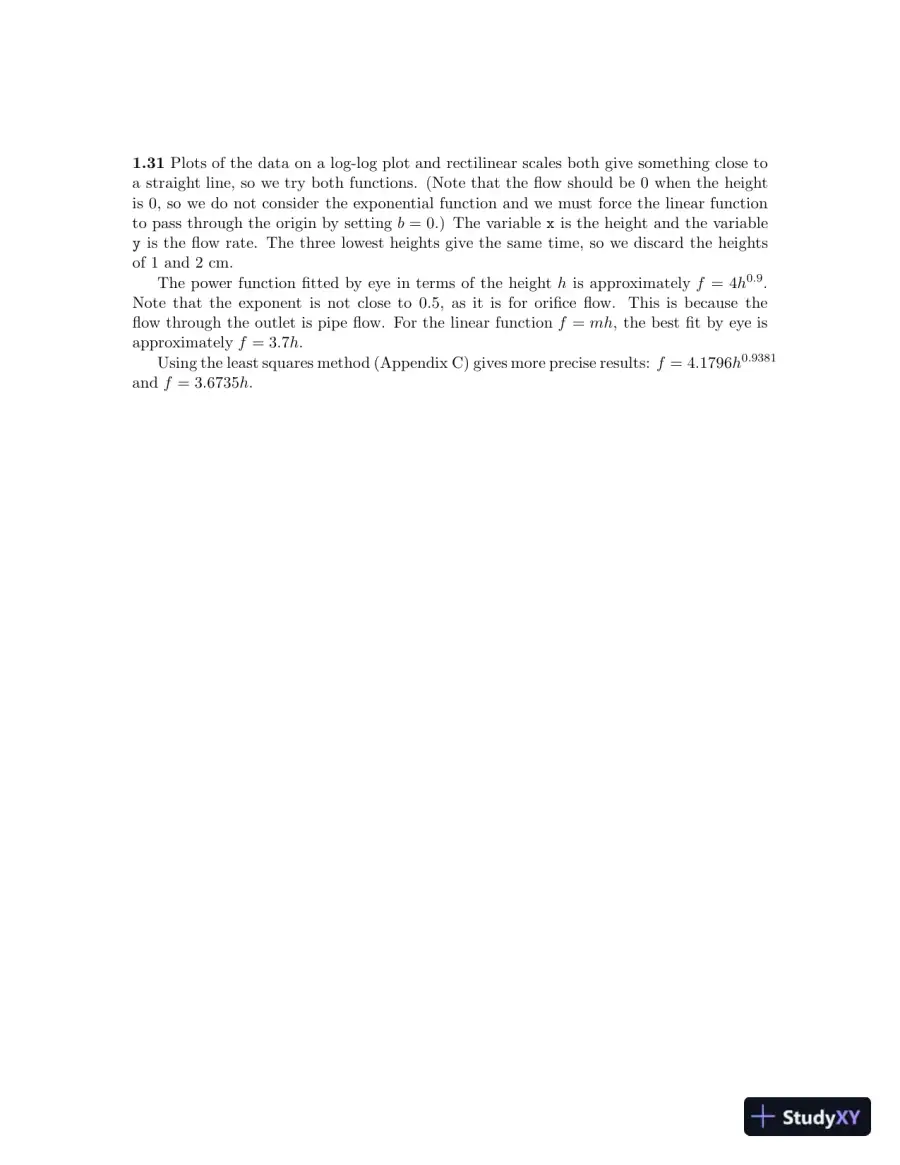

    1.31 Plots of the data on a log-log plot and rectilinear scales both give something close to a straight line, so we try both functions. (Note that the flow should be 0 when the height is 0, so we do not consider the exponential function and we must force the linear function to pass through the origin by setting b = 0.) The variable x is the height and the variable y is the flow rate. The three lowest heights give the same time, so we discard the heights of 1 and 2 cm. The power function fitted by eye in terms of the height h is approximately f = 4 h 0 . 9 . Note that the exponent is not close to 0.5, as it is for orifice flow. This is because the flow through the outlet is pipe flow. For the linear function f = mh , the best fit by eye is approximately f = 3 . 7 h . Using the least squares method (Appendix C) gives more precise results: f = 4 . 1796 h 0 . 9381 and f = 3 . 6735 h .

  15. Page 15
    Read page 15 as text

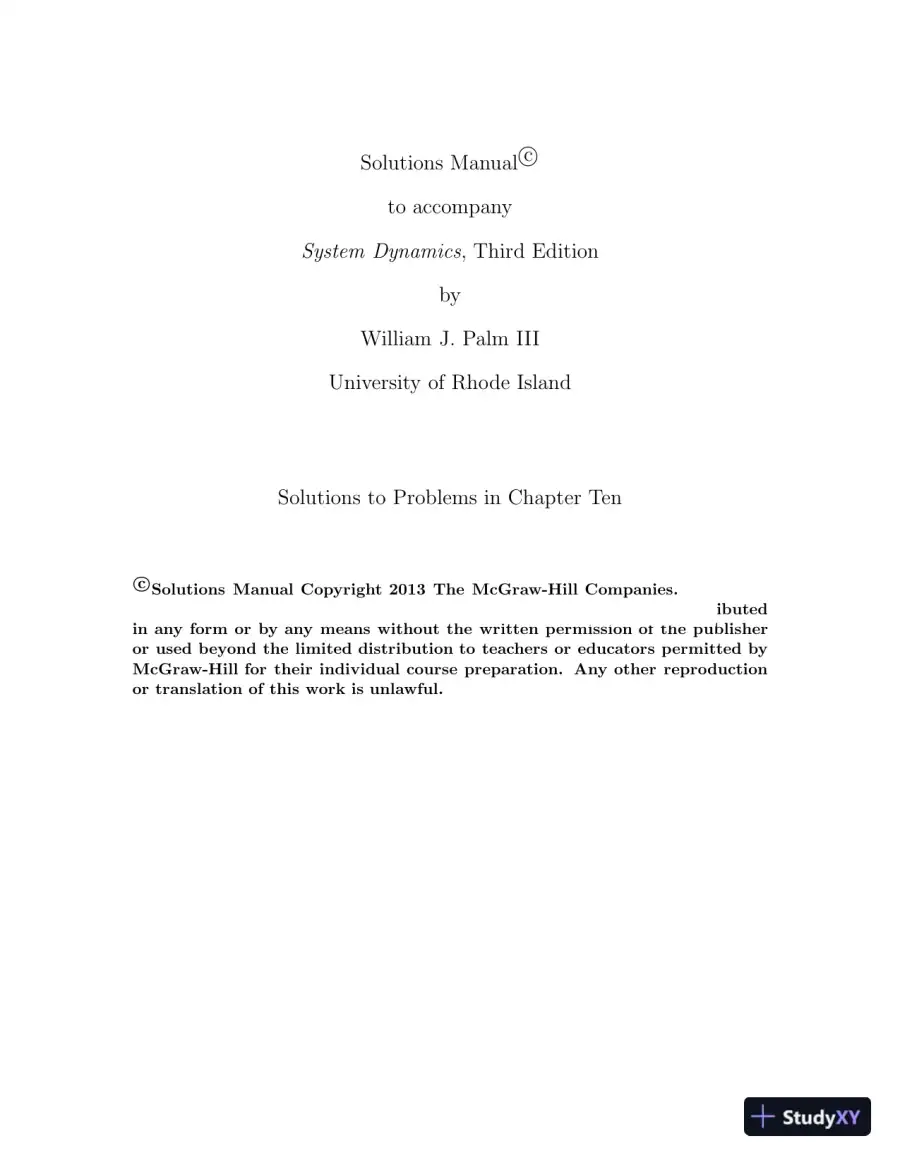

    Solutions Manual c © to accompany System Dynamics , Third Edition by William J. Palm III University of Rhode Island Solutions to Problems in Chapter Ten c © Solutions Manual Copyright 2013 The McGraw-Hill Companies. ibuted in any form or by any means without the written permission of the publisher or used beyond the limited distribution to teachers or educators permitted by McGraw-Hill for their individual course preparation. Any other reproduction or translation of this work is unlawful.

  16. Page 16
    Read page 16 as text

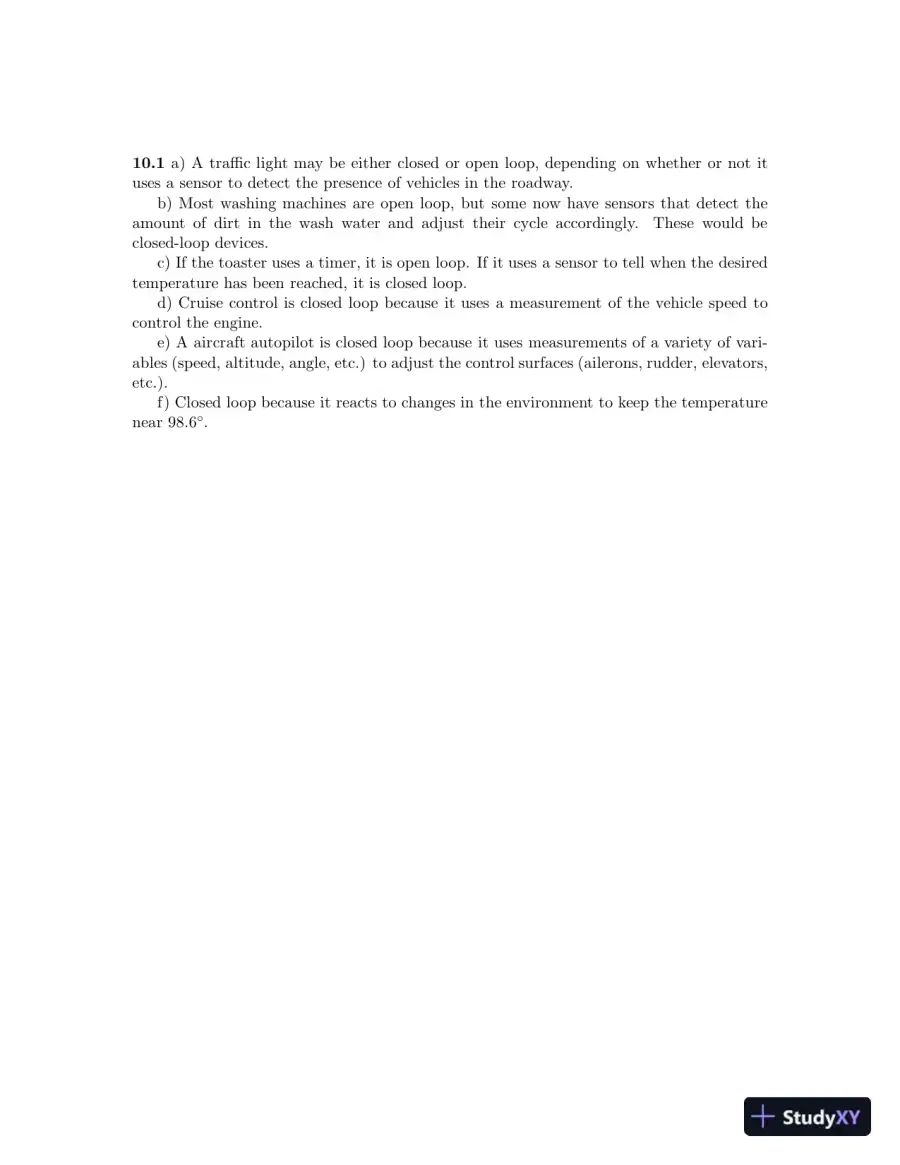

    10.1 a) A traffic light may be either closed or open loop, depending on whether or not it uses a sensor to detect the presence of vehicles in the roadway. b) Most washing machines are open loop, but some now have sensors that detect the amount of dirt in the wash water and adjust their cycle accordingly. These would be closed-loop devices. c) If the toaster uses a timer, it is open loop. If it uses a sensor to tell when the desired temperature has been reached, it is closed loop. d) Cruise control is closed loop because it uses a measurement of the vehicle speed to control the engine. e) A aircraft autopilot is closed loop because it uses measurements of a variety of vari- ables (speed, altitude, angle, etc.) to adjust the control surfaces (ailerons, rudder, elevators, etc.). f) Closed loop because it reacts to changes in the environment to keep the temperature near 98.6 ◦ .

914 more pages in the full document
