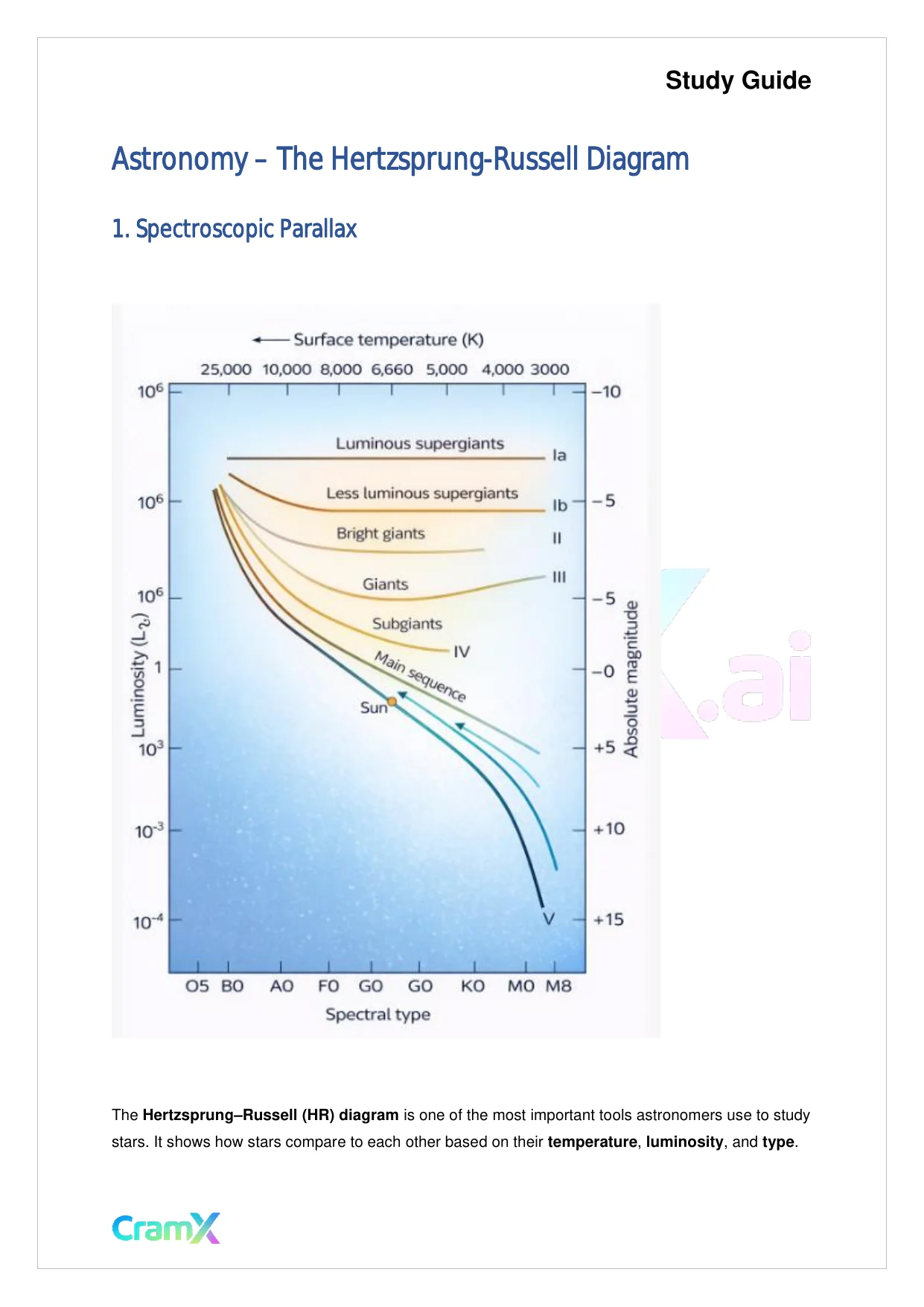

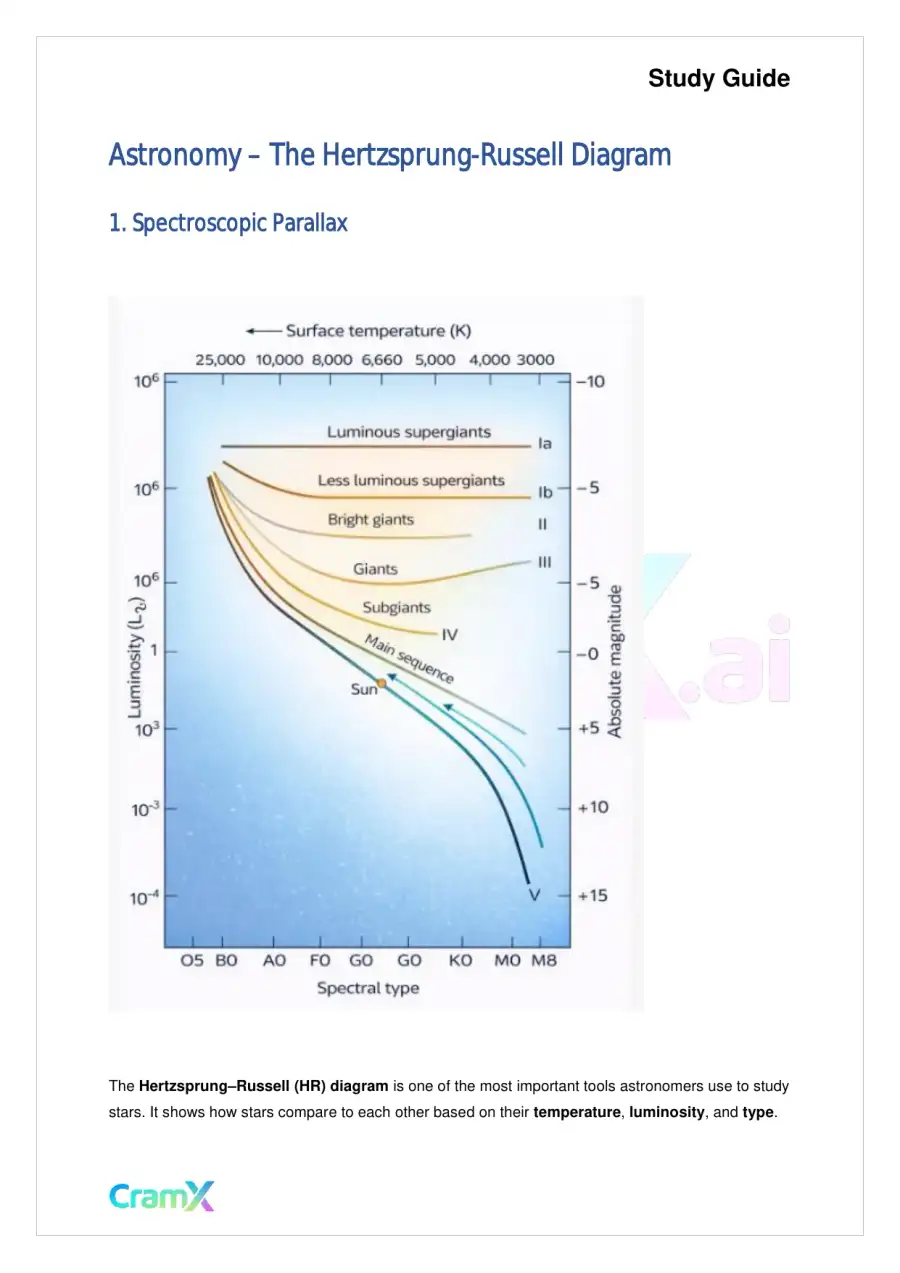

    Study Guide Astronomy – The Hertzsprung - Russell Diagram 1. Spectroscopic Parallax The Hertzsprung – Russell (HR) diagram is one of the most important tools astronomers use to study stars. It shows how stars compare to each other based on their temperature , luminosity , and type .

  2. Page 2
    Read page 2 as text

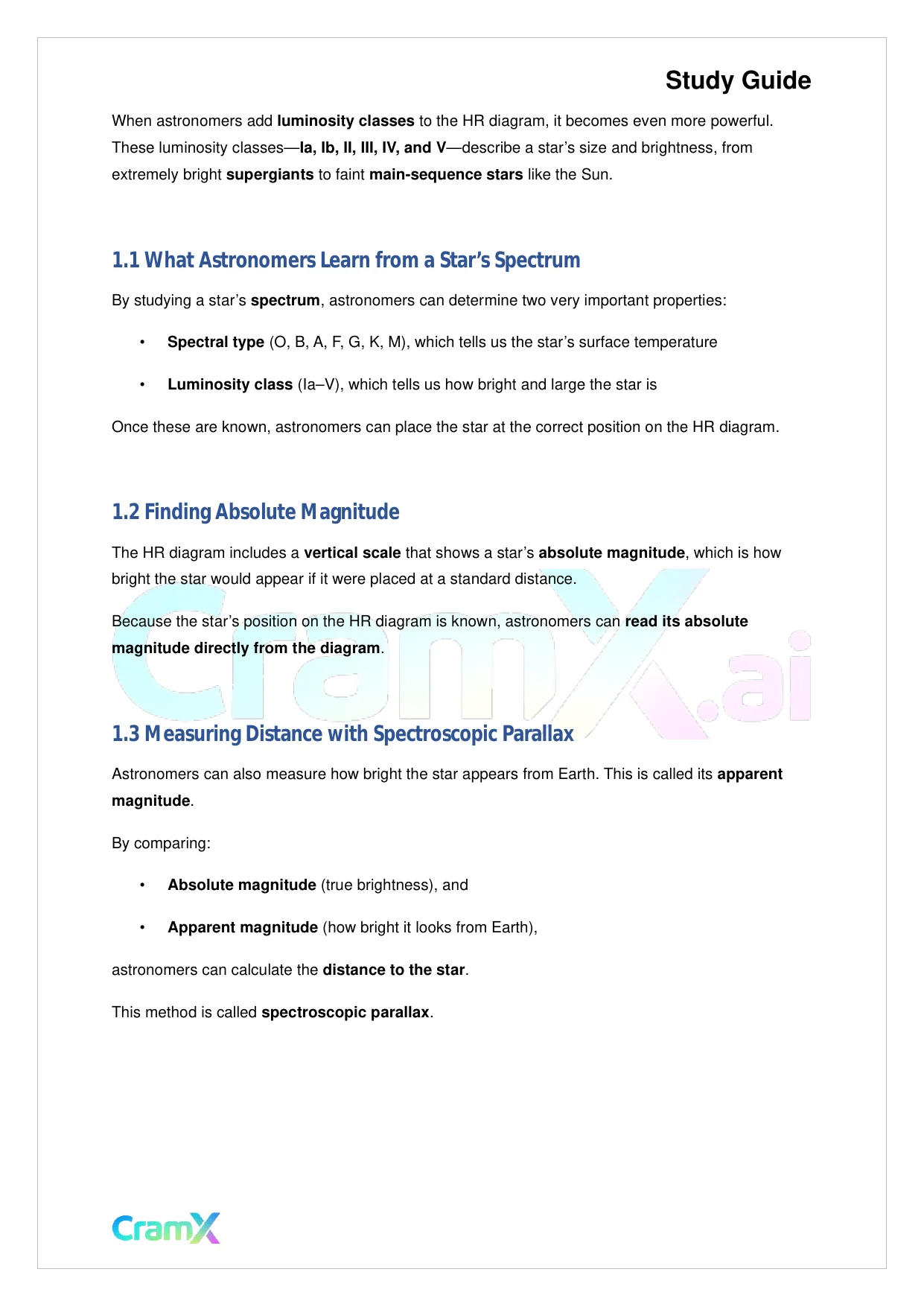

    Study Guide When astronomers add luminosity classes to the HR diagram, it becomes even more powerful. These luminosity classes — Ia, Ib, II, III, IV, and V — describe a star’s size and brightness, from extremely bright supergiants to faint main - sequence stars like the Sun. 1.1 What Astronomers Learn from a Star’s Spectrum By studying a star’s spectrum , astronomers can determine two very important properties: • Spectral type (O, B, A, F, G, K, M), which tells us the star’s surface temperature • Luminosity class (Ia – V), which tells us how bright and large the star is Once these are known, astronomers can place the star at the correct position on the HR diagram. 1.2 Finding Absolute Magnitude The HR diagram includes a vertical scale that shows a star’s absolute magnitude , which is how bright the star would appear if it were placed at a standard distance. Because the star’s position on the HR diagram is known, astronomers can read its absolute magnitude directly from the diagram . 1.3 Measuring Distance with Spectroscopic Parallax Astronomers can also measure how bright the star appears from Earth. This is called its apparent magnitude . By comparing: • Absolute magnitude (true brightness), and • Apparent magnitude (how bright it looks from Earth), astronomers can calculate the distance to the star . This method is called spectroscopic parallax .

  3. Page 3
    Read page 3 as text

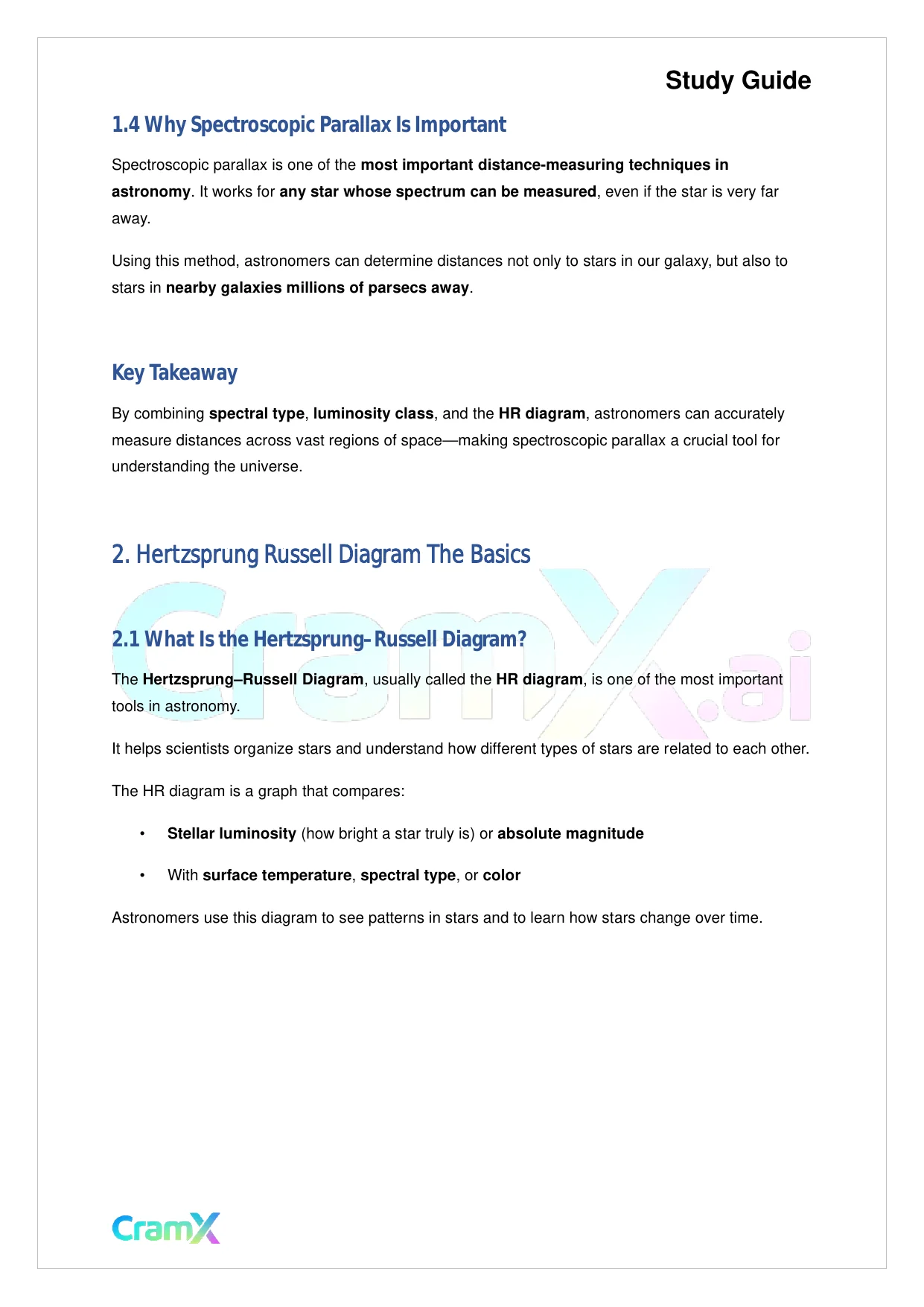

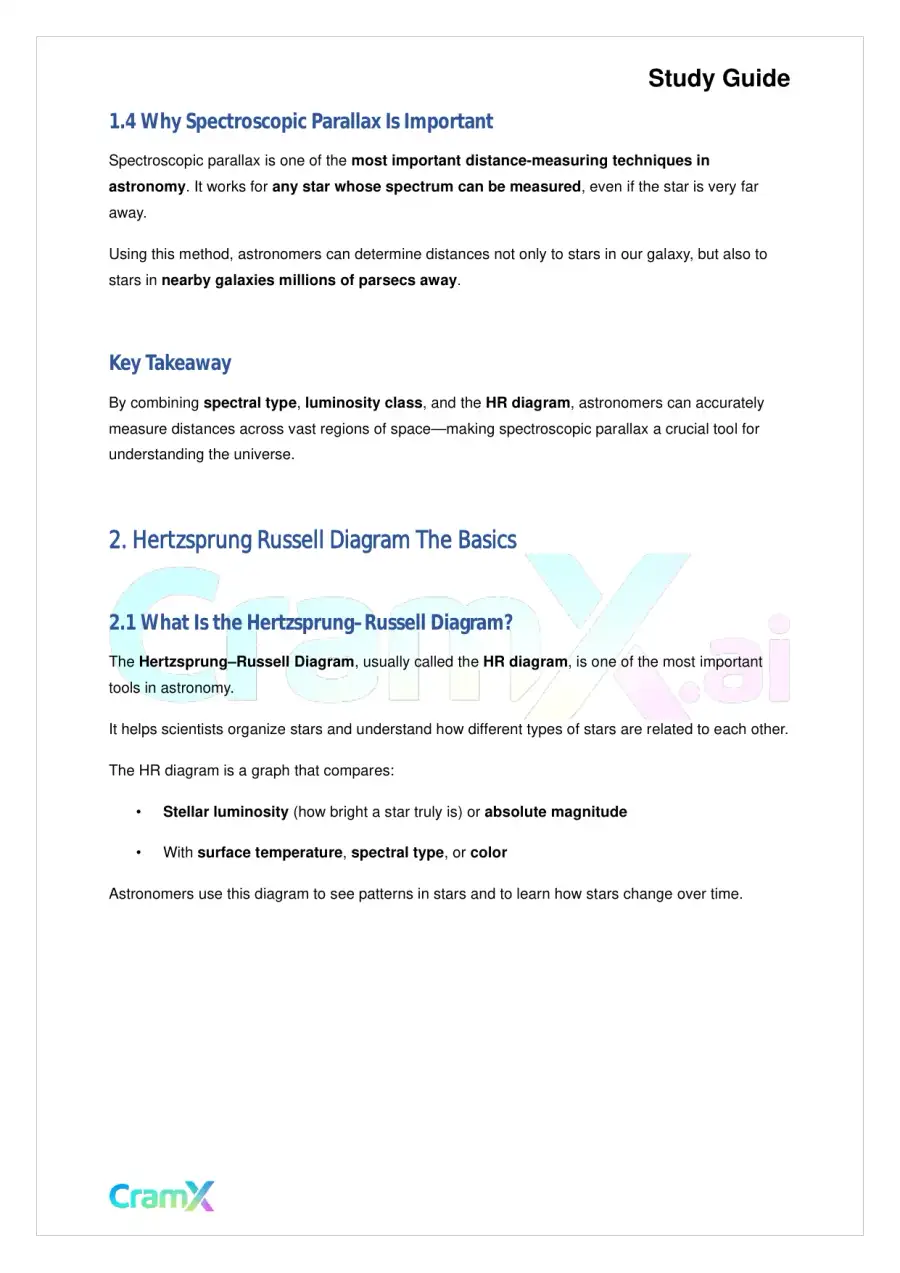

    Study Guide 1.4 Why Spectroscopic Parallax Is Important Spectroscopic parallax is one of the most important distance - measuring techniques in astronomy . It works for any star whose spectrum can be measured , even if the star is very far away. Using this method, astronomers can determine distances not only to stars in our galaxy, but also to stars in nearby galaxies millions of parsecs away . Key Takeaway By combining spectral type , luminosity class , and the HR diagram , astronomers can accurately measure distances across vast regions of space — making spectroscopic parallax a crucial tool for understanding the universe. 2. Hertzsprung Russell Diagram The Basics 2.1 What Is the Hertzsprung – Russell Diagram? The Hertzsprung – Russell Diagram , usually called the HR diagram , is one of the most important tools in astronomy. It helps scientists organize stars and understand how different types of stars are related to each other. The HR diagram is a graph that compares: • Stellar luminosity (how bright a star truly is) or absolute magnitude • With surface temperature , spectral type , or color Astronomers use this diagram to see patterns in stars and to learn how stars change over time.

  4. Page 4
    Read page 4 as text

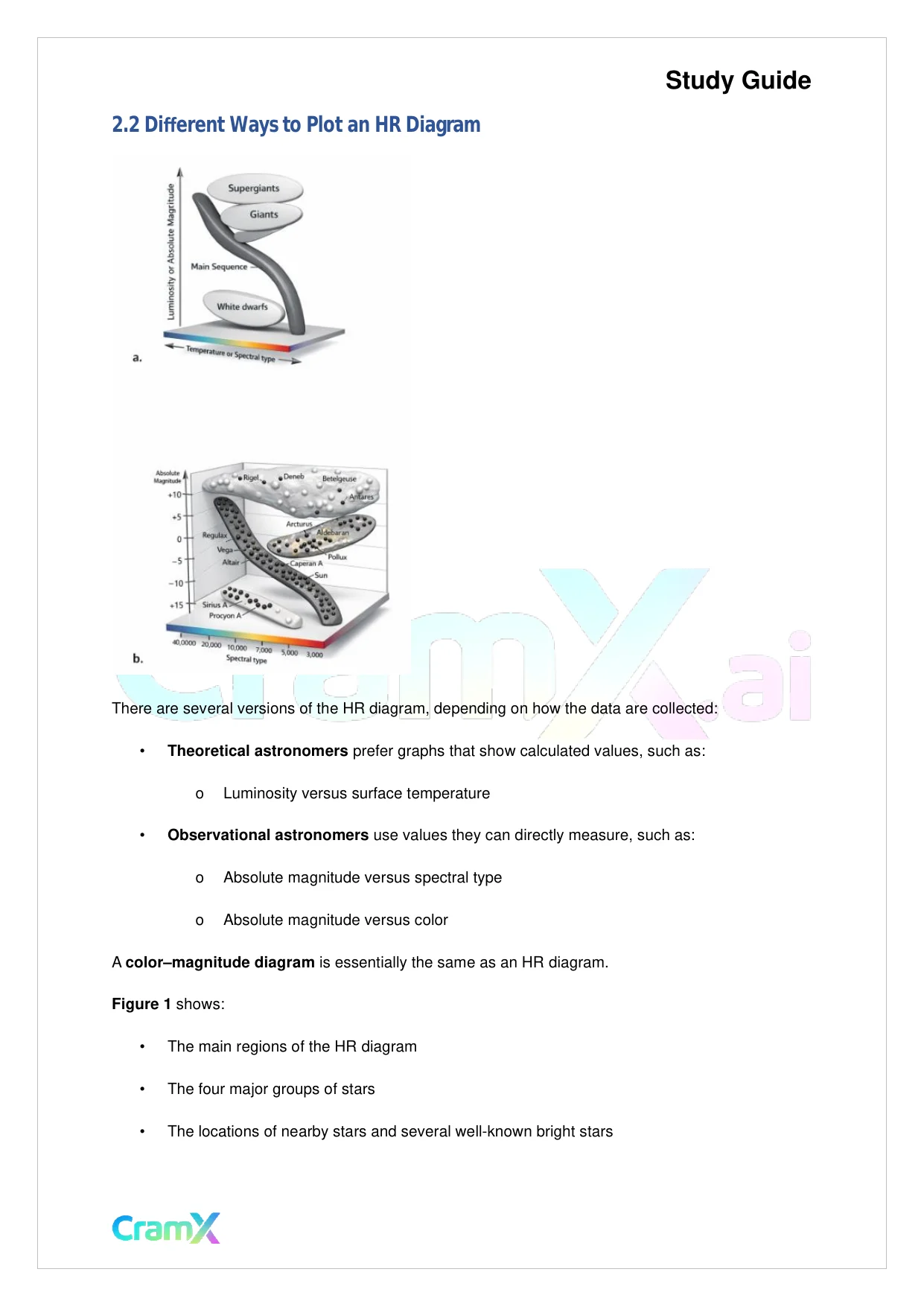

    Study Guide 2.2 Di ff erent Ways to Plot an HR Diagram There are several versions of the HR diagram, depending on how the data are collected: • Theoretical astronomers prefer graphs that show calculated values, such as: o Luminosity versus surface temperature • Observational astronomers use values they can directly measure, such as: o Absolute magnitude versus spectral type o Absolute magnitude versus color A color – magnitude diagram is essentially the same as an HR diagram. Figure 1 shows: • The main regions of the HR diagram • The four major groups of stars • The locations of nearby stars and several well - known bright stars

  5. Page 5
    Read page 5 as text

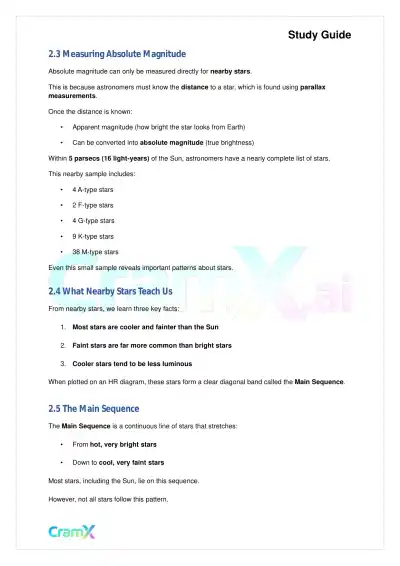

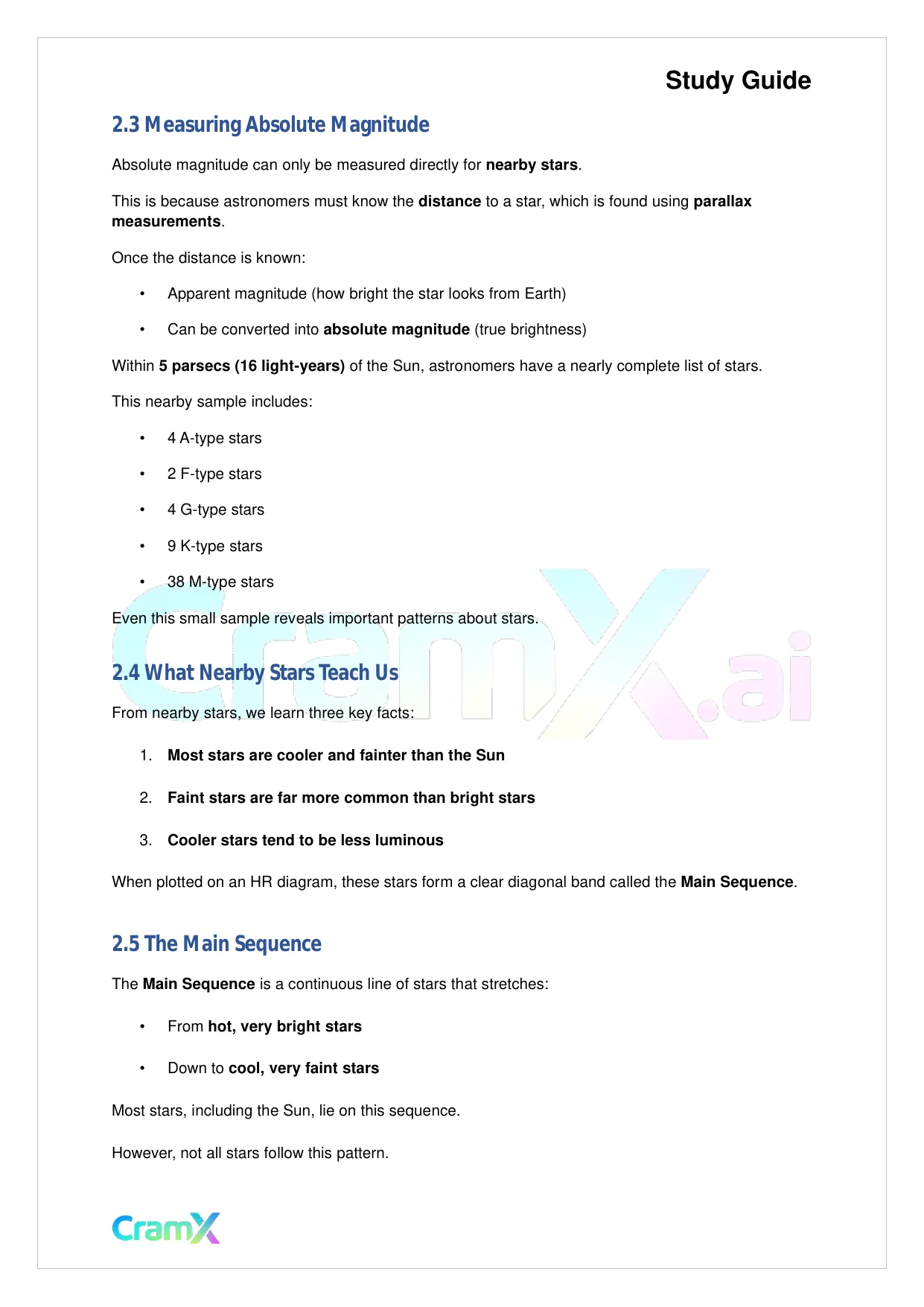

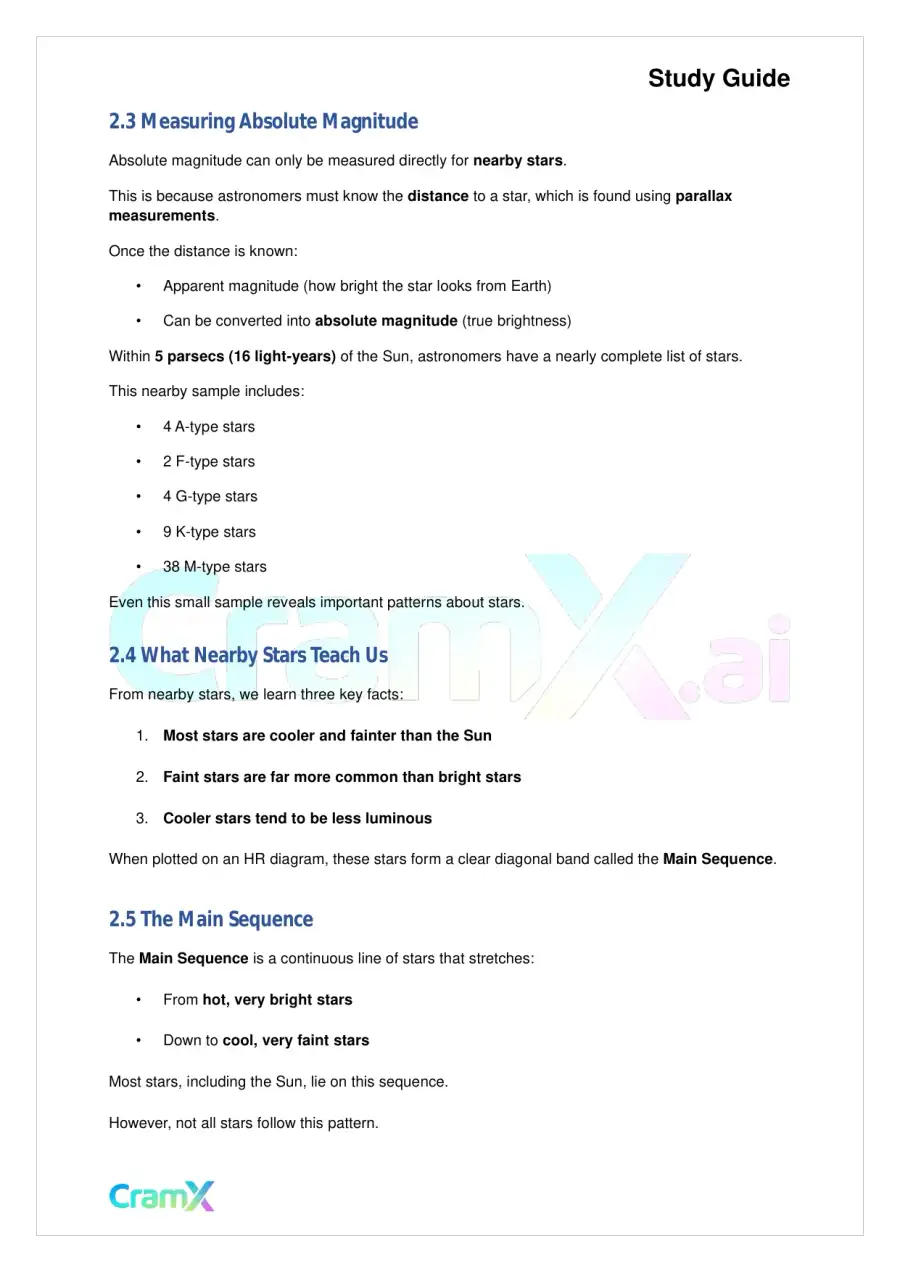

    Study Guide 2.3 Measuring Absolute Magnitude Absolute magnitude can only be measured directly for nearby stars . This is because astronomers must know the distance to a star, which is found using parallax measurements . Once the distance is known: • Apparent magnitude (how bright the star looks from Earth) • Can be converted into absolute magnitude (true brightness) Within 5 parsecs (16 light - years) of the Sun, astronomers have a nearly complete list of stars. This nearby sample includes: • 4 A - type stars • 2 F - type stars • 4 G - type stars • 9 K - type stars • 38 M - type stars Even this small sample reveals important patterns about stars. 2.4 What Nearby Stars Teach Us From nearby stars, we learn three key facts: 1. Most stars are cooler and fainter than the Sun 2. Faint stars are far more common than bright stars 3. Cooler stars tend to be less luminous When plotted on an HR diagram, these stars form a clear diagonal band called the Main Sequence . 2.5 The Main Sequence The Main Sequence is a continuous line of stars that stretches: • From hot, very bright stars • Down to cool, very faint stars Most stars, including the Sun, lie on this sequence. However, not all stars follow this pattern.

  6. Page 6
    Read page 6 as text

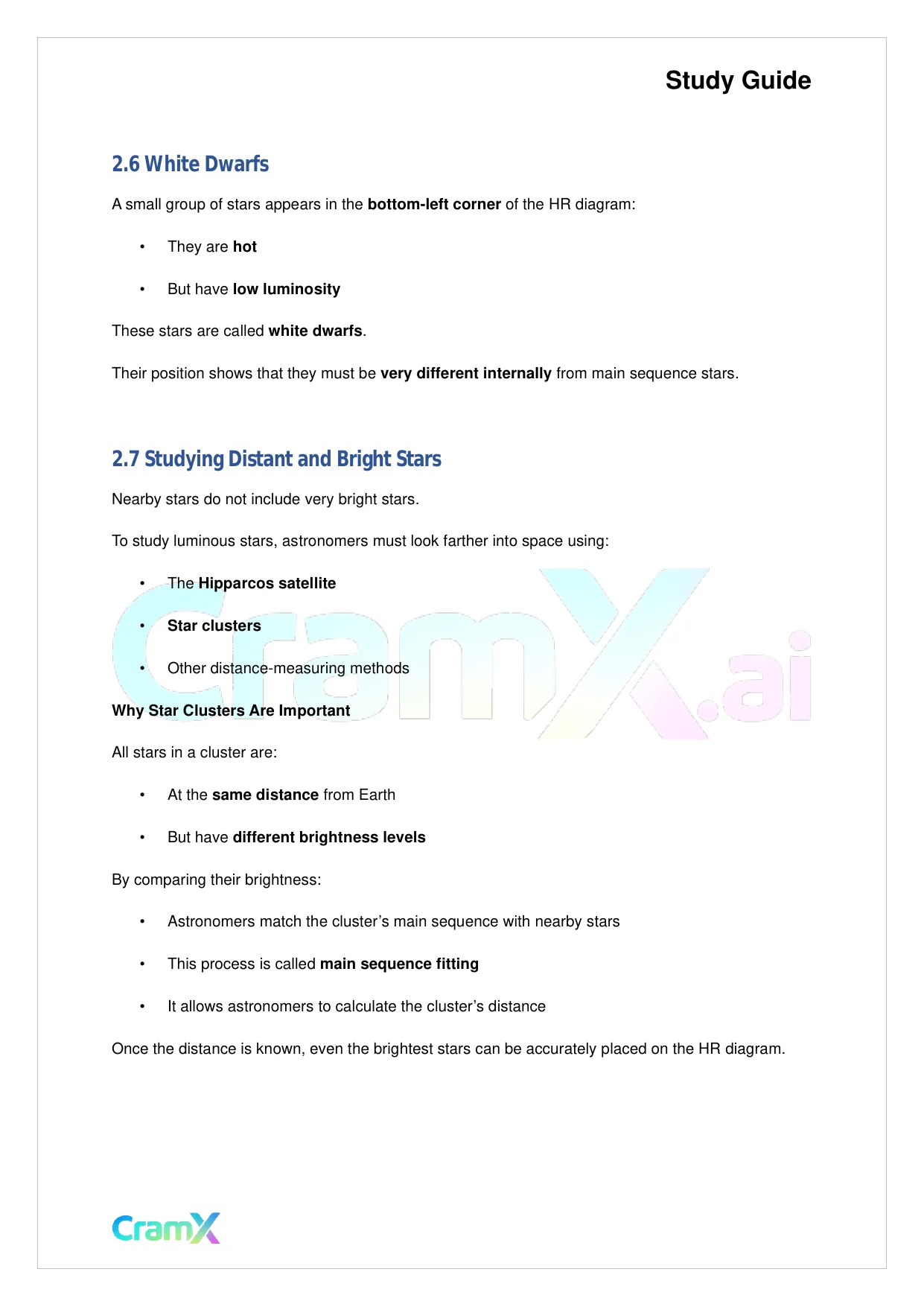

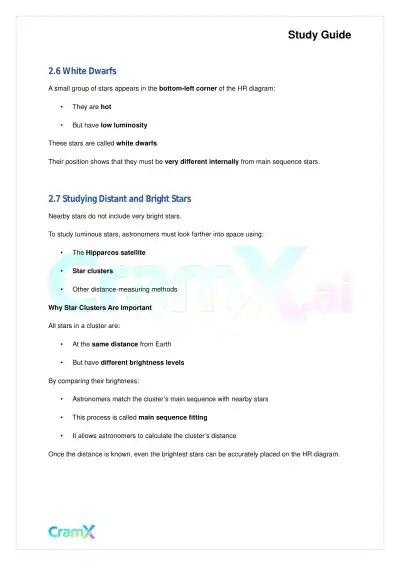

    Study Guide 2.6 White Dwarfs A small group of stars appears in the bottom - left corner of the HR diagram: • They are hot • But have low luminosity These stars are called white dwarfs . Their position shows that they must be very different internally from main sequence stars. 2.7 Studying Distant and Bright Stars Nearby stars do not include very bright stars. To study luminous stars, astronomers must look farther into space using: • The Hipparcos satellite • Star clusters • Other distance - measuring methods Why Star Clusters Are Important All stars in a cluster are: • At the same distance from Earth • But have different brightness levels By comparing their brightness: • Astronomers match the cluster’s main sequence with nearby stars • This process is called main sequence fitting • It allows astronomers to calculate the cluster’s distance Once the distance is known, even the brightest stars can be accurately placed on the HR diagram.
