2024 AZ 700 Renewal Azure Networking Practice Exam with Answers (47 Solved Questions)

Preview (4 of 13 Pages)

100%

2024 AZ 700 Renewal Azure Networking Practice Exam with Answers (47 Solved Questions) - Page 1 preview image

Loading page ...

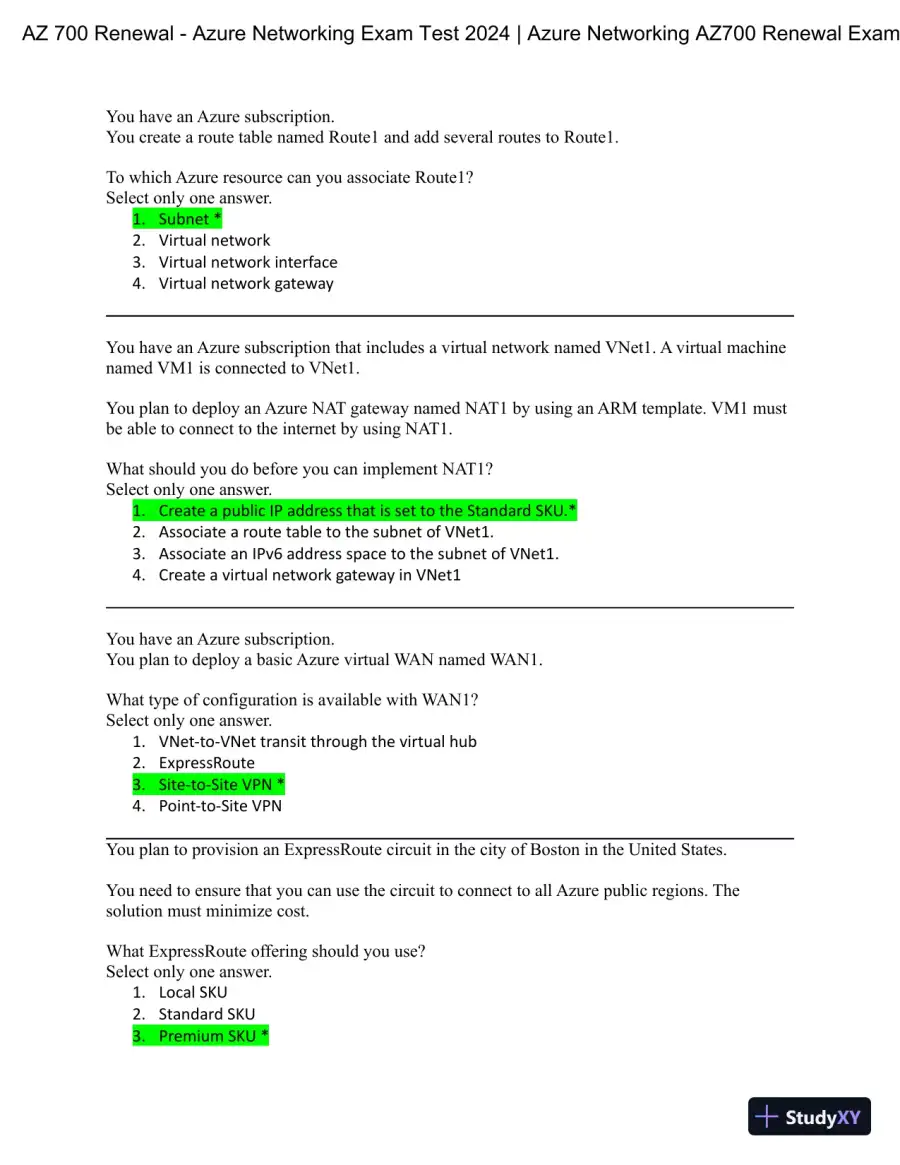

You have an Azure subscription.You create a route table named Route1 and add several routes to Route1.To which Azure resource can you associate Route1?Select only one answer.1.Subnet *2.Virtual network3.Virtual network interface4.Virtual network gatewayYou have an Azure subscription that includes a virtual network named VNet1. A virtual machinenamed VM1 is connected to VNet1.You plan to deploy an Azure NAT gateway named NAT1 by using an ARM template. VM1 mustbe able to connect to the internet by using NAT1.What should you do before you can implement NAT1?Select only one answer.1.Create a public IP address that is set to the Standard SKU.*2.Associate a route table to the subnet of VNet1.3.Associate an IPv6 address space to the subnet of VNet1.4.Create a virtual network gateway in VNet1You have an Azure subscription.You plan to deploy a basic Azure virtual WAN named WAN1.What type of configuration is available with WAN1?Select only one answer.1.VNet-to-VNet transit through the virtual hub2.ExpressRoute3.Site-to-Site VPN *4.Point-to-Site VPNYou plan to provision an ExpressRoute circuit in the city of Boston in the United States.You need to ensure that you can use the circuit to connect to all Azure public regions. Thesolution must minimize cost.What ExpressRoute offering should you use?Select only one answer.1.Local SKU2.Standard SKU3.Premium SKU *lOMoARcPSD|13778330AZ 700 Renewal - Azure Networking Exam Test 2024 | Azure Networking AZ700 Renewal Exam

2024 AZ 700 Renewal Azure Networking Practice Exam with Answers (47 Solved Questions) - Page 2 preview image

Loading page ...

2024 AZ 700 Renewal Azure Networking Practice Exam with Answers (47 Solved Questions) - Page 3 preview image

Loading page ...

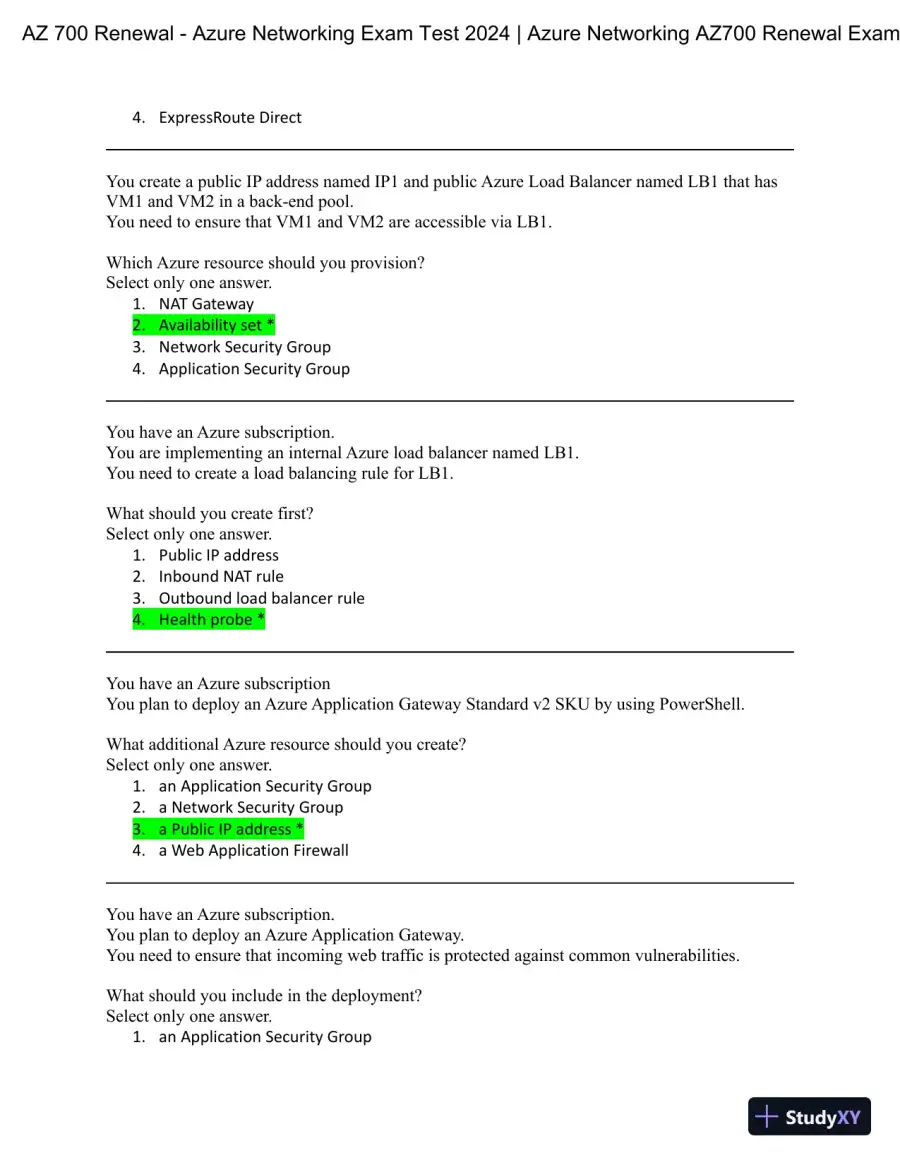

4.ExpressRoute DirectYou create a public IP address named IP1 and public Azure Load Balancer named LB1 that hasVM1 and VM2 in a back-end pool.You need to ensure that VM1 and VM2 are accessible via LB1.Which Azure resource should you provision?Select only one answer.1.NAT Gateway2.Availability set *3.Network Security Group4.Application Security GroupYou have an Azure subscription.You are implementing an internal Azure load balancer named LB1.You need to create a load balancing rule for LB1.What should you create first?Select only one answer.1.Public IP address2.Inbound NAT rule3.Outbound load balancer rule4.Health probe *You have an Azure subscriptionYou plan to deploy an Azure Application Gateway Standard v2 SKU by using PowerShell.What additional Azure resource should you create?Select only one answer.1.an Application Security Group2.a Network Security Group3.a Public IP address *4.a Web Application FirewallYou have an Azure subscription.You plan to deploy an Azure Application Gateway.You need to ensure that incoming web traffic is protected against common vulnerabilities.What should you include in the deployment?Select only one answer.1.an Application Security GrouplOMoARcPSD|13778330AZ 700 Renewal - Azure Networking Exam Test 2024 | Azure Networking AZ700 Renewal Exam

2024 AZ 700 Renewal Azure Networking Practice Exam with Answers (47 Solved Questions) - Page 4 preview image

Loading page ...

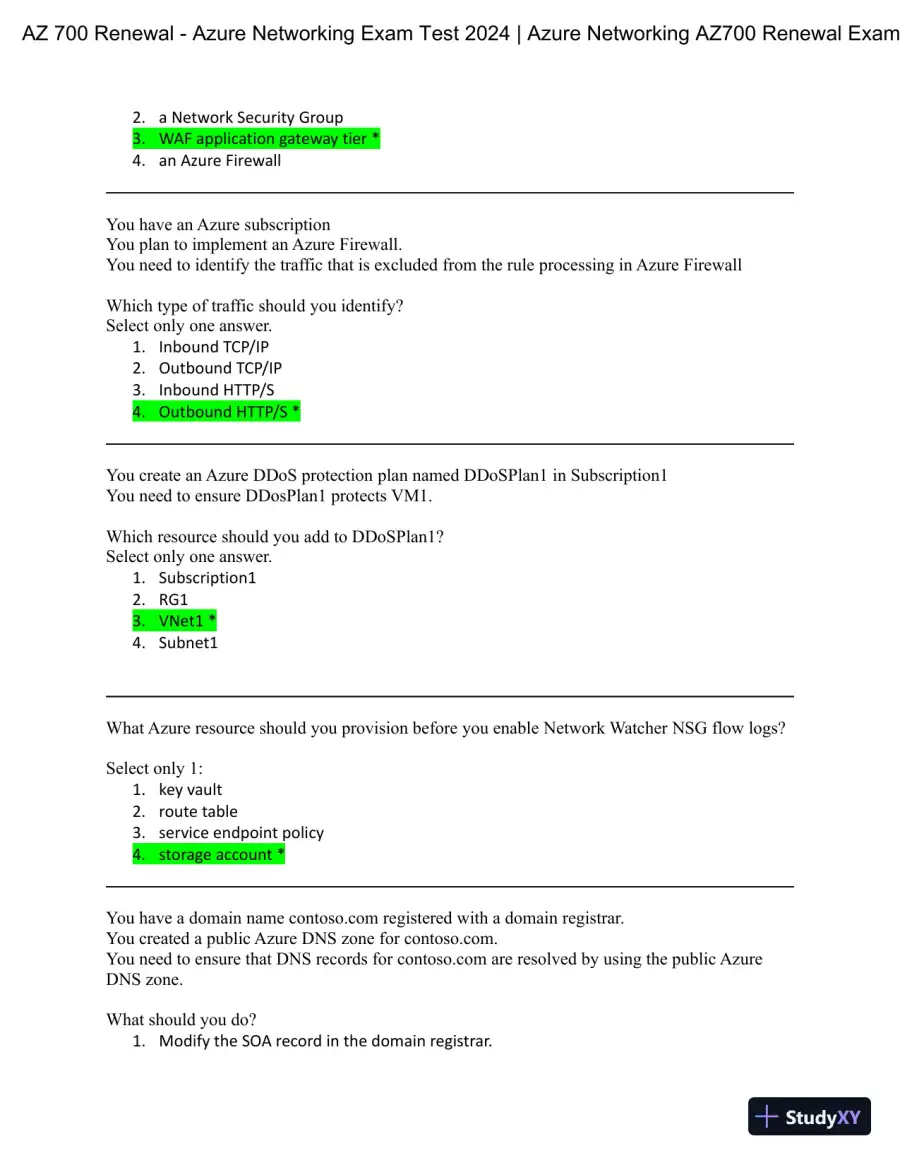

2.a Network Security Group3.WAF application gateway tier *4.an Azure FirewallYou have an Azure subscriptionYou plan to implement an Azure Firewall.You need to identify the traffic that is excluded from the rule processing in Azure FirewallWhich type of traffic should you identify?Select only one answer.1.Inbound TCP/IP2.Outbound TCP/IP3.Inbound HTTP/S4.Outbound HTTP/S *You create an Azure DDoS protection plan named DDoSPlan1 in Subscription1You need to ensure DDosPlan1 protects VM1.Which resource should you add to DDoSPlan1?Select only one answer.1.Subscription12.RG13.VNet1 *4.Subnet1What Azure resource should you provision before you enable Network Watcher NSG flow logs?Select only 1:1.key vault2.route table3.service endpoint policy4.storage account *You have a domain name contoso.com registered with a domain registrar.You created a public Azure DNS zone for contoso.com.You need to ensure that DNS records for contoso.com are resolved by using the public AzureDNS zone.What should you do?1.Modify the SOA record in the domain registrar.lOMoARcPSD|13778330AZ 700 Renewal - Azure Networking Exam Test 2024 | Azure Networking AZ700 Renewal Exam

Preview Mode

This document has 13 pages. Sign in to access the full document!
