Solution Manual Fundamentals of Communication Systems John G. Proakis Masoud Salehi Second Edition 2013
Page 2 Page 3 Read page 3 as text

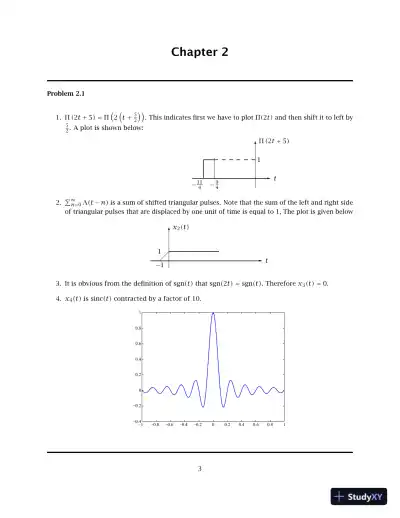

Chapter 2 Problem 2.1 1. Π ( 2 t + 5 ) = Π ( 2 ( t + 5 2 )) . This indicates first we have to plot Π ( 2 t) and then shift it to left by 5 2 . A plot is shown below: 6 − 11 4 − 9 4 - t Π ( 2 t + 5 ) 1 2. ∑ ∞ n = 0 Λ (t − n) is a sum of shifted triangular pulses. Note that the sum of the left and right side of triangular pulses that are displaced by one unit of time is equal to 1, The plot is given below ✲ ✻ t x 2 (t) − 1 1 3. It is obvious from the definition of sgn (t) that sgn ( 2 t) = sgn (t) . Therefore x 3 (t) = 0. 4. x 4 (t) is sinc (t) contracted by a factor of 10. −1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 3
Page 4 Read page 4 as text

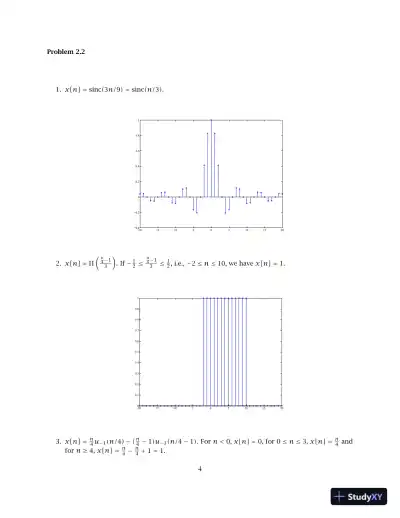

Problem 2.2 1. x[n] = sinc ( 3 n/ 9 ) = sinc (n/ 3 ) . −20 −15 −10 −5 0 5 10 15 20 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 2. x[n] = Π ( n 4 − 1 3 ) . If − 1 2 ≤ n 4 − 1 3 ≤ 1 2 , i.e., − 2 ≤ n ≤ 10, we have x[n] = 1. −20 −15 −10 −5 0 5 10 15 20 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 3. x[n] = n 4 u − 1 (n/ 4 ) − ( n 4 − 1 )u − 1 (n/ 4 − 1 ) . For n < 0, x[n] = 0, for 0 ≤ n ≤ 3, x[n] = n 4 and for n ≥ 4, x[n] = n 4 − n 4 + 1 = 1. 4
Page 5 Read page 5 as text

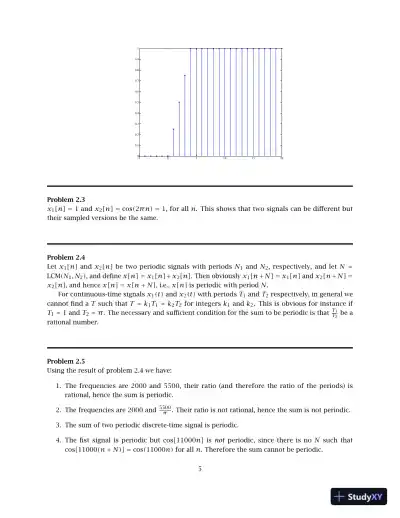

−5 0 5 10 15 20 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Problem 2.3 x 1 [n] = 1 and x 2 [n] = cos ( 2 π n) = 1, for all n . This shows that two signals can be different but their sampled versions be the same. Problem 2.4 Let x 1 [n] and x 2 [n] be two periodic signals with periods N 1 and N 2 , respectively, and let N = LCM (N 1 , N 2 ) , and define x[n] = x 1 [n] + x 2 [n] . Then obviously x 1 [n + N] = x 1 [n] and x 2 [n + N] = x 2 [n] , and hence x[n] = x[n + N] , i.e., x[n] is periodic with period N . For continuous-time signals x 1 (t) and x 2 (t) with periods T 1 and T 2 respectively, in general we cannot find a T such that T = k 1 T 1 = k 2 T 2 for integers k 1 and k 2 . This is obvious for instance if T 1 = 1 and T 2 = π . The necessary and sufficient condition for the sum to be periodic is that T 1 T 2 be a rational number. Problem 2.5 Using the result of problem 2.4 we have: 1. The frequencies are 2000 and 5500, their ratio (and therefore the ratio of the periods) is rational, hence the sum is periodic. 2. The frequencies are 2000 and 5500 π . Their ratio is not rational, hence the sum is not periodic. 3. The sum of two periodic discrete-time signal is periodic. 4. The fist signal is periodic but cos [ 11000 n] is not periodic, since there is no N such that cos [ 11000 (n + N)] = cos ( 11000 n) for all n . Therefore the sum cannot be periodic. 5
Page 6 Read page 6 as text
Problem 2.6 1) x 1 (t) = e − t t > 0 − e t t < 0 0 t = 0 = ⇒ x 1 ( − t) = − e − t t > 0 e t t < 0 0 t = 0 = − x 1 (t) Thus, x 1 (t) is an odd signal 2) x 2 (t) = cos ( 120 π t + π 3 ) is neither even nor odd. We have cos ( 120 π t + π 3 ) = cos ( π 3 ) cos ( 120 π t) − sin ( π 3 ) sin ( 120 π t) . Therefore x 2 e (t) = cos ( π 3 ) cos ( 120 π t) and x 2 o (t) = − sin ( π 3 ) sin ( 120 π t) . (Note: This part can also be considered as a special case of part 7 of this problem) 3) x 3 (t) = e −| t | = ⇒ x 3 ( − t) = e −| ( − t) | = e −| t | = x 3 (t) Hence, the signal x 3 (t) is even. 4) x 4 (t) = t t ≥ 0 0 t < 0 = ⇒ x 4 ( − t) = 0 t ≥ 0 − t t < 0 The signal x 4 (t) is neither even nor odd. The even part of the signal is x 4 ,e (t) = x 4 (t) + x 4 ( − t) 2 = t 2 t ≥ 0 − t 2 t < 0 = | t | 2 The odd part is x 4 ,o (t) = x 4 (t) − x 4 ( − t) 2 = t 2 t ≥ 0 t 2 t < 0 = t 2 5) x 5 (t) = x 1 (t) − x 2 (t) = ⇒ x 5 ( − t) = x 1 ( − t) − x 2 ( − t) = x 1 (t) + x 2 (t) Clearly x 5 ( − t) ≠ x 5 (t) since otherwise x 2 (t) = 0 ∀ t . Similarly x 5 ( − t) ≠ − x 5 (t) since otherwise x 1 (t) = 0 ∀ t . The even and the odd parts of x 5 (t) are given by x 5 ,e (t) = x 5 (t) + x 5 ( − t) 2 = x 1 (t) x 5 ,o (t) = x 5 (t) − x 5 ( − t) 2 = − x 2 (t) 6
Page 7 Read page 7 as text

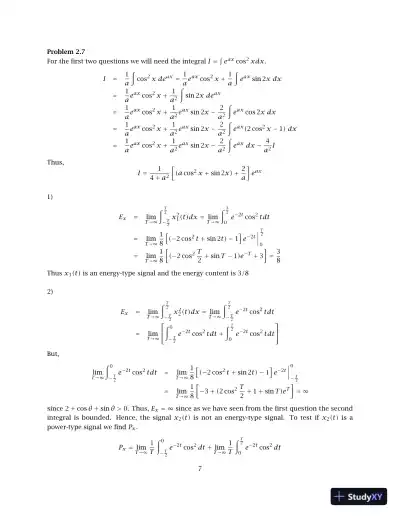

Problem 2.7 For the first two questions we will need the integral I = ∫ e ax cos 2 xdx . I = 1 a ∫ cos 2 x de ax = 1 a e ax cos 2 x + 1 a ∫ e ax sin 2 x dx = 1 a e ax cos 2 x + 1 a 2 ∫ sin 2 x de ax = 1 a e ax cos 2 x + 1 a 2 e ax sin 2 x − 2 a 2 ∫ e ax cos 2 x dx = 1 a e ax cos 2 x + 1 a 2 e ax sin 2 x − 2 a 2 ∫ e ax ( 2 cos 2 x − 1 ) dx = 1 a e ax cos 2 x + 1 a 2 e ax sin 2 x − 2 a 2 ∫ e ax dx − 4 a 2 I Thus, I = 1 4 + a 2 [ (a cos 2 x + sin 2 x) + 2 a ] e ax 1) E x = lim T →∞ ∫ T 2 − T 2 x 2 1 (t)dx = lim T →∞ ∫ T 2 0 e − 2 t cos 2 tdt = lim T →∞ 1 8 [ ( − 2 cos 2 t + sin 2 t) − 1 ] e − 2 t ∣ ∣ ∣ ∣ T 2 0 = lim T →∞ 1 8 [ ( − 2 cos 2 T 2 + sin T − 1 )e − T + 3 ] = 3 8 Thus x 1 (t) is an energy-type signal and the energy content is 3 / 8 2) E x = lim T →∞ ∫ T 2 − T 2 x 2 2 (t)dx = lim T →∞ ∫ T 2 − T 2 e − 2 t cos 2 tdt = lim T →∞ ∫ 0 − T 2 e − 2 t cos 2 tdt + ∫ T 2 0 e − 2 t cos 2 tdt But, lim T →∞ ∫ 0 − T 2 e − 2 t cos 2 tdt = lim T →∞ 1 8 [ ( − 2 cos 2 t + sin 2 t) − 1 ] e − 2 t ∣ ∣ ∣ ∣ 0 − T 2 = lim T →∞ 1 8 [ − 3 + ( 2 cos 2 T 2 + 1 + sin T )e T ] = ∞ since 2 + cos θ + sin θ > 0. Thus, E x = ∞ since as we have seen from the first question the second integral is bounded. Hence, the signal x 2 (t) is not an energy-type signal. To test if x 2 (t) is a power-type signal we find P x . P x = lim T →∞ 1 T ∫ 0 − T 2 e − 2 t cos 2 dt + lim T →∞ 1 T ∫ T 2 0 e − 2 t cos 2 dt 7
Page 8 Read page 8 as text
But lim T →∞ 1 T ∫ T 2 0 e − 2 t cos 2 dt is zero and lim T →∞ 1 T ∫ 0 − T 2 e − 2 t cos 2 dt = lim T →∞ 1 8 T [ 2 cos 2 T 2 + 1 + sin T ] e T > lim T →∞ 1 T e T > lim T →∞ 1 T ( 1 + T + T 2 ) > lim T →∞ T = ∞ Thus the signal x 2 (t) is not a power-type signal. 3) E x = lim T →∞ ∫ T 2 − T 2 x 2 3 (t)dx = lim T →∞ ∫ T 2 − T 2 sgn 2 (t)dt = lim T →∞ ∫ T 2 − T 2 dt = lim T →∞ T = ∞ P x = lim T →∞ 1 T ∫ T 2 − T 2 sgn 2 (t)dt = lim T →∞ 1 T ∫ T 2 − T 2 dt = lim T →∞ 1 T T = 1 The signal x 3 (t) is of the power-type and the power content is 1. 4) First note that lim T →∞ ∫ T 2 − T 2 A cos ( 2 π f t)dt = ∞ ∑ k =−∞ A ∫ k + 1 2 f k − 1 2 f cos ( 2 π f t)dt = 0 so that lim T →∞ ∫ T 2 − T 2 A 2 cos 2 ( 2 π f t)dt = lim T →∞ 1 2 ∫ T 2 − T 2 (A 2 + A 2 cos ( 2 π 2 f t))dt = lim T →∞ 1 2 ∫ T 2 − T 2 A 2 dt = lim T →∞ 1 2 A 2 T = ∞ E x = lim T →∞ ∫ T 2 − T 2 (A 2 cos 2 ( 2 π f 1 t) + B 2 cos 2 ( 2 π f 2 t) + 2 AB cos ( 2 π f 1 t) cos ( 2 π f 2 t))dt = lim T →∞ ∫ T 2 − T 2 A 2 cos 2 ( 2 π f 1 t)dt + lim T →∞ ∫ T 2 − T 2 B 2 cos 2 ( 2 π f 2 t)dt + AB lim T →∞ ∫ T 2 − T 2 [ cos 2 ( 2 π (f 1 + f 2 ) + cos 2 ( 2 π (f 1 − f 2 )]dt = ∞ + ∞ + 0 = ∞ Thus the signal is not of the energy-type. To test if the signal is of the power-type we consider two cases f 1 = f 2 and f 1 ≠ f 2 . In the first case P x = lim T →∞ 1 T ∫ T 2 − T 2 (A + B) 2 cos 2 ( 2 π f 1 )dt = lim T →∞ 1 2 T (A + B) 2 ∫ T 2 − T 2 dt = 1 2 (A + B) 2 8
Page 9 Read page 9 as text
If f 1 ≠ f 2 then P x = lim T →∞ 1 T ∫ T 2 − T 2 (A 2 cos 2 ( 2 π f 1 t) + B 2 cos 2 ( 2 π f 2 t) + 2 AB cos ( 2 π f 1 t) cos ( 2 π f 2 t))dt = lim T →∞ 1 T [ A 2 T 2 + B 2 T 2 ] = A 2 2 + B 2 2 Thus the signal is of the power-type and if f 1 = f 2 the power content is (A + B) 2 / 2 whereas if f 1 ≠ f 2 the power content is 1 2 (A 2 + B 2 ) Problem 2.8 1. Let x(t) = 2 Λ ( t 2 ) − Λ (t) , then x 1 (t) = ∑ ∞ n =−∞ x(t − 4 n) . First we plot x(t) then by shifting it by multiples of 4 we can plot x 1 (t) . x(t) is a triangular pulse of width 4 and height 2 from which a standard triangular pulse of width 1 and height 1 is subtracted. The result is a trapezoidal pulse, which when replicated at intervals of 4 gives the plot of x 1 (t) . ✲ ✻ t x 1 (t) 1 2 − 2 6 − 6 2. This is the sum of two periodic signals with periods 2 π and 1. Since the ratio of the two periods is not rational the sum is not periodic (by the result of problem 2.4) 3. sin [n] is not periodic. There is no integer N such that sin [n + N] = sin [n] for all n . Problem 2.9 1) P x = lim T →∞ 1 T ∫ T 2 − T 2 A 2 ∣ ∣ ∣ e j( 2 π f 0 t + θ) ∣ ∣ ∣ 2 dt = lim T →∞ 1 T ∫ T 2 − T 2 A 2 dt = lim T →∞ 1 T A 2 T = A 2 Thus x(t) = Ae j( 2 π f 0 t + θ) is a power-type signal and its power content is A 2 . 2) P x = lim T →∞ 1 T ∫ T 2 − T 2 A 2 cos 2 ( 2 π f 0 t + θ) dt = lim T →∞ 1 T ∫ T 2 − T 2 A 2 2 dt + lim T →∞ 1 T ∫ T 2 − T 2 A 2 2 cos ( 4 π f 0 t + 2 θ) dt As T → ∞ , the there will be no contribution by the second integral. Thus the signal is a power-type signal and its power content is A 2 2 . 9
Page 10 Read page 10 as text

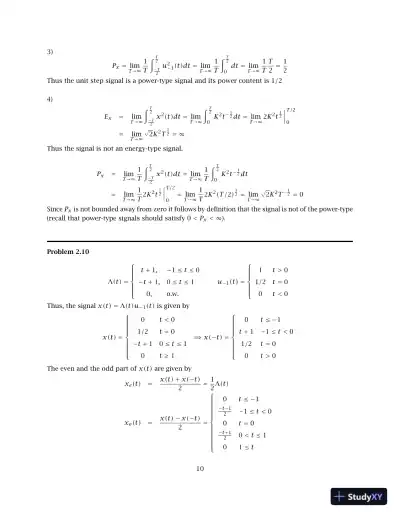

3) P x = lim T →∞ 1 T ∫ T 2 − T 2 u 2 − 1 (t)dt = lim T →∞ 1 T ∫ T 2 0 dt = lim T →∞ 1 T T 2 = 1 2 Thus the unit step signal is a power-type signal and its power content is 1 / 2 4) E x = lim T →∞ ∫ T 2 − T 2 x 2 (t)dt = lim T →∞ ∫ T 2 0 K 2 t − 1 2 dt = lim T →∞ 2 K 2 t 1 2 ∣ ∣ ∣ ∣ T / 2 0 = lim T →∞ √ 2 K 2 T 1 2 = ∞ Thus the signal is not an energy-type signal. P x = lim T →∞ 1 T ∫ T 2 − T 2 x 2 (t)dt = lim T →∞ 1 T ∫ T 2 0 K 2 t − 1 2 dt = lim T →∞ 1 T 2 K 2 t 1 2 ∣ ∣ ∣ ∣ T / 2 0 = lim T →∞ 1 T 2 K 2 (T / 2 ) 1 2 = lim T →∞ √ 2 K 2 T − 1 2 = 0 Since P x is not bounded away from zero it follows by definition that the signal is not of the power-type (recall that power-type signals should satisfy 0 < P x < ∞ ). Problem 2.10 Λ (t) = t + 1 , − 1 ≤ t ≤ 0 − t + 1 , 0 ≤ t ≤ 1 0 , o.w. u − 1 (t) = 1 t > 0 1 / 2 t = 0 0 t < 0 Thus, the signal x(t) = Λ (t)u − 1 (t) is given by x(t) = 0 t < 0 1 / 2 t = 0 − t + 1 0 ≤ t ≤ 1 0 t ≥ 1 = ⇒ x( − t) = 0 t ≤ − 1 t + 1 − 1 ≤ t < 0 1 / 2 t = 0 0 t > 0 The even and the odd part of x(t) are given by x e (t) = x(t) + x( − t) 2 = 1 2 Λ (t) x o (t) = x(t) − x( − t) 2 = 0 t ≤ − 1 − t − 1 2 − 1 ≤ t < 0 0 t = 0 − t + 1 2 0 < t ≤ 1 0 1 ≤ t 10
Page 11 Read page 11 as text

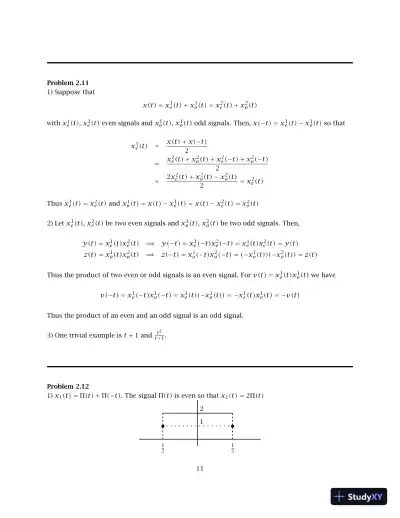

Problem 2.11 1) Suppose that x(t) = x 1 e (t) + x 1 o (t) = x 2 e (t) + x 2 o (t) with x 1 e (t) , x 2 e (t) even signals and x 1 o (t) , x 1 o (t) odd signals. Then, x( − t) = x 1 e (t) − x 1 o (t) so that x 1 e (t) = x(t) + x( − t) 2 = x 2 e (t) + x 2 o (t) + x 2 e ( − t) + x 2 o ( − t) 2 = 2 x 2 e (t) + x 2 o (t) − x 2 o (t) 2 = x 2 e (t) Thus x 1 e (t) = x 2 e (t) and x 1 o (t) = x(t) − x 1 e (t) = x(t) − x 2 e (t) = x 2 o (t) 2) Let x 1 e (t) , x 2 e (t) be two even signals and x 1 o (t) , x 2 o (t) be two odd signals. Then, y(t) = x 1 e (t)x 2 e (t) = ⇒ y( − t) = x 1 e ( − t)x 2 e ( − t) = x 1 e (t)x 2 e (t) = y(t) z(t) = x 1 o (t)x 2 o (t) = ⇒ z( − t) = x 1 o ( − t)x 2 o ( − t) = ( − x 1 o (t))( − x 2 o (t)) = z(t) Thus the product of two even or odd signals is an even signal. For v(t) = x 1 e (t)x 1 o (t) we have v( − t) = x 1 e ( − t)x 1 o ( − t) = x 1 e (t)( − x 1 o (t)) = − x 1 e (t)x 1 o (t) = − v(t) Thus the product of an even and an odd signal is an odd signal. 3) One trivial example is t + 1 and t 2 t + 1 . Problem 2.12 1) x 1 (t) = Π (t) + Π ( − t) . The signal Π (t) is even so that x 1 (t) = 2 Π (t) . . . . . . . . . . . . . . . . . . 1 2 1 2 1 2 11
Page 12 Read page 12 as text

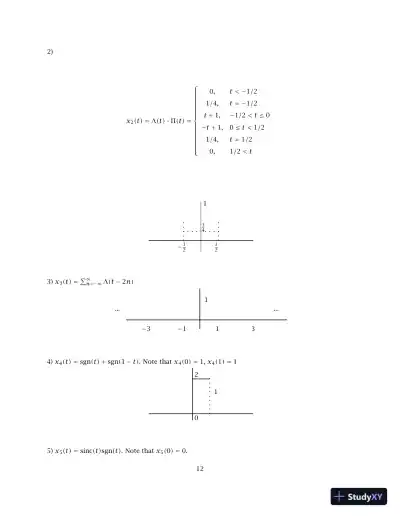

2) x 2 (t) = Λ (t) · Π (t) = 0 , t < − 1 / 2 1 / 4 , t = − 1 / 2 t + 1 , − 1 / 2 < t ≤ 0 − t + 1 , 0 ≤ t < 1 / 2 1 / 4 , t = 1 / 2 0 , 1 / 2 < t . . . . . . . . . . . . . . . . . . . 1 4 − 1 2 1 2 1 3) x 3 (t) = ∑ ∞ n =−∞ Λ (t − 2 n) ... ... − 3 − 1 3 1 1 4) x 4 (t) = sgn (t) + sgn ( 1 − t) . Note that x 4 ( 0 ) = 1, x 4 ( 1 ) = 1 . . . . . . . . . 0 2 1 5) x 5 (t) = sinc (t) sgn (t) . Note that x 5 ( 0 ) = 0. 12
Page 13 Read page 13 as text

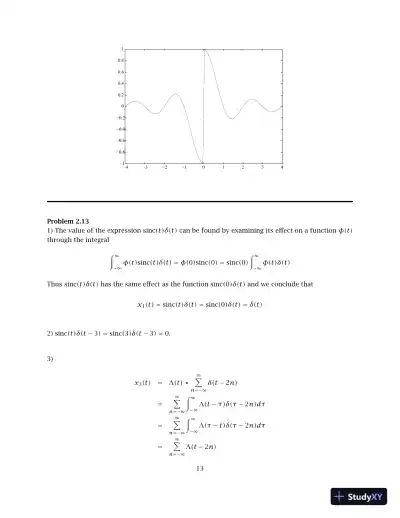

−1 −0.8 −0.6 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 −4 −3 −2 −1 0 1 2 3 4 Problem 2.13 1) The value of the expression sinc (t)δ(t) can be found by examining its effect on a function φ(t) through the integral ∫ ∞ −∞ φ(t) sinc (t)δ(t) = φ( 0 ) sinc ( 0 ) = sinc ( 0 ) ∫ ∞ −∞ φ(t)δ(t) Thus sinc (t)δ(t) has the same effect as the function sinc ( 0 )δ(t) and we conclude that x 1 (t) = sinc (t)δ(t) = sinc ( 0 )δ(t) = δ(t) 2) sinc (t)δ(t − 3 ) = sinc ( 3 )δ(t − 3 ) = 0. 3) x 3 (t) = Λ (t) ? ∞ ∑ n =−∞ δ(t − 2 n) = ∞ ∑ n =−∞ ∫ ∞ −∞ Λ (t − τ)δ(τ − 2 n)dτ = ∞ ∑ n =−∞ ∫ ∞ −∞ Λ (τ − t)δ(τ − 2 n)dτ = ∞ ∑ n =−∞ Λ (t − 2 n) 13
Page 14 Read page 14 as text

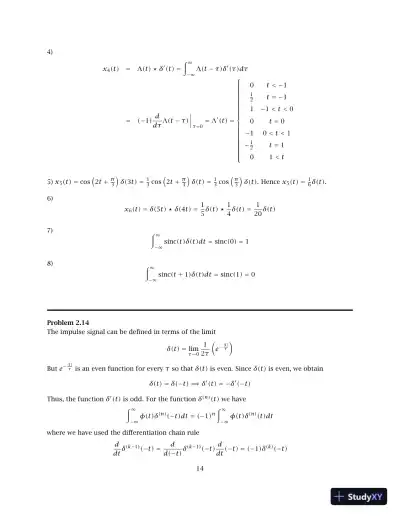

4) x 4 (t) = Λ (t) ? δ ′ (t) = ∫ ∞ −∞ Λ (t − τ)δ ′ (τ)dτ = ( − 1 ) d dτ Λ (t − τ) ∣ ∣ ∣ ∣ τ = 0 = Λ ′ (t) = 0 t < − 1 1 2 t = − 1 1 − 1 < t < 0 0 t = 0 − 1 0 < t < 1 − 1 2 t = 1 0 1 < t 5) x 5 (t) = cos ( 2 t + π 3 ) δ( 3 t) = 1 3 cos ( 2 t + π 3 ) δ(t) = 1 3 cos ( π 3 ) δ(t) . Hence x 5 (t) = 1 6 δ(t) . 6) x 6 (t) = δ( 5 t) ? δ( 4 t) = 1 5 δ(t) ? 1 4 δ(t) = 1 20 δ(t) 7) ∫ ∞ −∞ sinc (t)δ(t)dt = sinc ( 0 ) = 1 8) ∫ ∞ −∞ sinc (t + 1 )δ(t)dt = sinc ( 1 ) = 0 Problem 2.14 The impulse signal can be defined in terms of the limit δ(t) = lim τ → 0 1 2 τ ( e − | t | τ ) But e − | t | τ is an even function for every τ so that δ(t) is even. Since δ(t) is even, we obtain δ(t) = δ( − t) = ⇒ δ ′ (t) = − δ ′ ( − t) Thus, the function δ ′ (t) is odd. For the function δ (n) (t) we have ∫ ∞ −∞ φ(t)δ (n) ( − t)dt = ( − 1 ) n ∫ ∞ −∞ φ(t)δ (n) (t)dt where we have used the differentiation chain rule d dt δ (k − 1 ) ( − t) = d d( − t) δ (k − 1 ) ( − t) d dt ( − t) = ( − 1 )δ (k) ( − t) 14
Page 15 Read page 15 as text

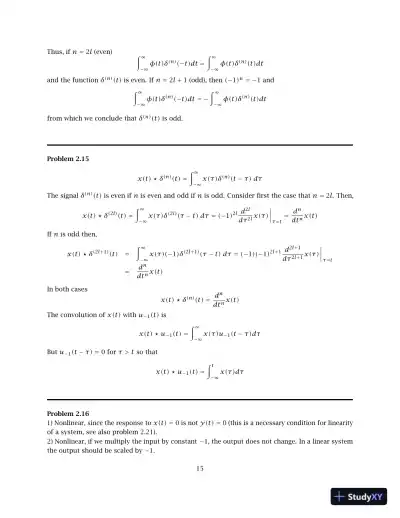

Thus, if n = 2 l (even) ∫ ∞ −∞ φ(t)δ (n) ( − t)dt = ∫ ∞ −∞ φ(t)δ (n) (t)dt and the function δ (n) (t) is even. If n = 2 l + 1 (odd), then ( − 1 ) n = − 1 and ∫ ∞ −∞ φ(t)δ (n) ( − t)dt = − ∫ ∞ −∞ φ(t)δ (n) (t)dt from which we conclude that δ (n) (t) is odd. Problem 2.15 x(t) ? δ (n) (t) = ∫ ∞ −∞ x(τ)δ (n) (t − τ) dτ The signal δ (n) (t) is even if n is even and odd if n is odd. Consider first the case that n = 2 l . Then, x(t) ? δ ( 2 l) (t) = ∫ ∞ −∞ x(τ)δ ( 2 l) (τ − t) dτ = ( − 1 ) 2 l d 2 l dτ 2 l x(τ) ∣ ∣ ∣ ∣ τ = t = d n dt n x(t) If n is odd then, x(t) ? δ ( 2 l + 1 ) (t) = ∫ ∞ −∞ x(τ)( − 1 )δ ( 2 l + 1 ) (τ − t) dτ = ( − 1 )( − 1 ) 2 l + 1 d 2 l + 1 dτ 2 l + 1 x(τ) ∣ ∣ ∣ ∣ τ = t = d n dt n x(t) In both cases x(t) ? δ (n) (t) = d n dt n x(t) The convolution of x(t) with u − 1 (t) is x(t) ? u − 1 (t) = ∫ ∞ −∞ x(τ)u − 1 (t − τ)dτ But u − 1 (t − τ) = 0 for τ > t so that x(t) ? u − 1 (t) = ∫ t −∞ x(τ)dτ Problem 2.16 1) Nonlinear, since the response to x(t) = 0 is not y(t) = 0 (this is a necessary condition for linearity of a system, see also problem 2.21). 2) Nonlinear, if we multiply the input by constant − 1, the output does not change. In a linear system the output should be scaled by − 1. 15
Page 16 Read page 16 as text

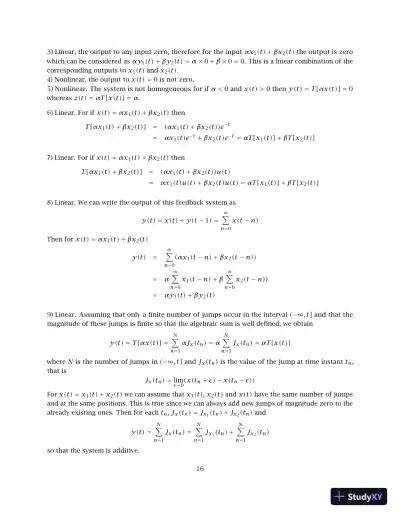

3) Linear, the output to any input zero, therefore for the input αx 1 (t) + βx 2 (t) the output is zero which can be considered as αy 1 (t) + βy 2 (t) = α × 0 + β × 0 = 0. This is a linear combination of the corresponding outputs to x 1 (t) and x 2 (t) . 4) Nonlinear, the output to x(t) = 0 is not zero. 5) Nonlinear. The system is not homogeneous for if α < 0 and x(t) > 0 then y(t) = T [αx(t)] = 0 whereas z(t) = αT [x(t)] = α . 6) Linear. For if x(t) = αx 1 (t) + βx 2 (t) then T [αx 1 (t) + βx 2 (t)] = (αx 1 (t) + βx 2 (t))e − t = αx 1 (t)e − t + βx 2 (t)e − t = αT [x 1 (t)] + βT [x 2 (t)] 7) Linear. For if x(t) = αx 1 (t) + βx 2 (t) then T [αx 1 (t) + βx 2 (t)] = (αx 1 (t) + βx 2 (t))u(t) = αx 1 (t)u(t) + βx 2 (t)u(t) = αT [x 1 (t)] + βT [x 2 (t)] 8) Linear. We can write the output of this feedback system as y(t) = x(t) + y(t − 1 ) = ∞ ∑ n = 0 x(t − n) Then for x(t) = αx 1 (t) + βx 2 (t) y(t) = ∞ ∑ n = 0 (αx 1 (t − n) + βx 2 (t − n)) = α ∞ ∑ n = 0 x 1 (t − n) + β ∞ ∑ n = 0 x 2 (t − n)) = αy 1 (t) + βy 2 (t) 9) Linear. Assuming that only a finite number of jumps occur in the interval ( −∞ , t] and that the magnitude of these jumps is finite so that the algebraic sum is well defined, we obtain y(t) = T [αx(t)] = N ∑ n = 1 αJ x (t n ) = α N ∑ n = 1 J x (t n ) = αT [x(t)] where N is the number of jumps in ( −∞ , t] and J x (t n ) is the value of the jump at time instant t n , that is J x (t n ) = lim → 0 (x(t n + ) − x(t n − )) For x(t) = x 1 (t) + x 2 (t) we can assume that x 1 (t) , x 2 (t) and x(t) have the same number of jumps and at the same positions. This is true since we can always add new jumps of magnitude zero to the already existing ones. Then for each t n , J x (t n ) = J x 1 (t n ) + J x 2 (t n ) and y(t) = N ∑ n = 1 J x (t n ) = N ∑ n = 1 J x 1 (t n ) + N ∑ n = 1 J x 2 (t n ) so that the system is additive. 16
