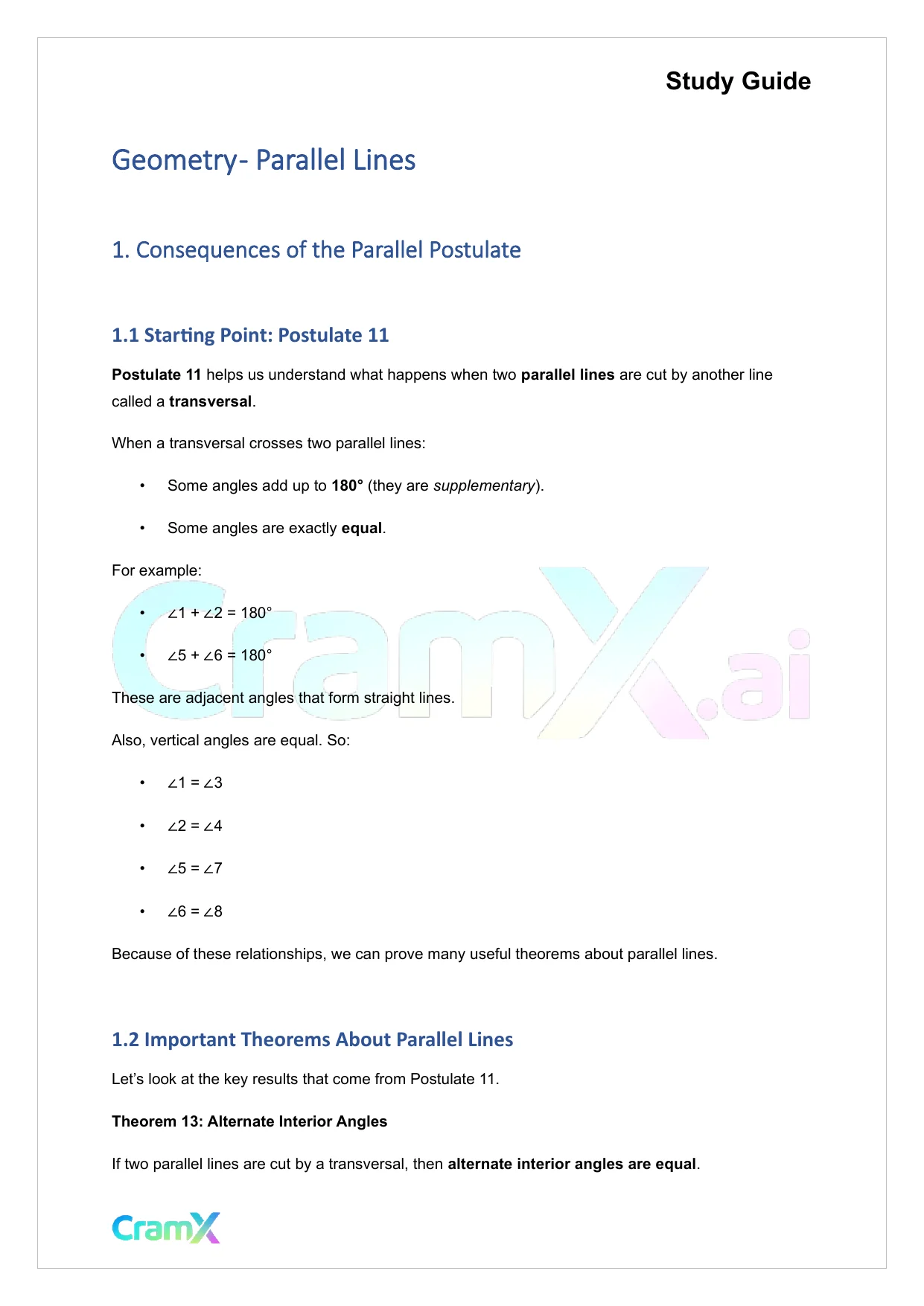

Study GuideGeometry-Parallel Lines1. Consequences of the Parallel Postulate1.1Starting Point: Postulate 11Postulate 11helps us understand what happens when twoparallel linesare cut by another linecalled atransversal.When a transversal crosses two parallel lines:•Some angles add up to180°(they aresupplementary).•Some angles are exactlyequal.For example:•∠1 +∠2 = 180°•∠5 +∠6 = 180°These are adjacent angles that form straight lines.Also, vertical angles are equal. So:•∠1 =∠3•∠2 =∠4•∠5 =∠7•∠6 =∠8Because of these relationships, we can prove many useful theorems about parallel lines.1.2Important Theorems About Parallel LinesLet’s look at the key results that come from Postulate 11.Theorem 13: Alternate Interior AnglesIf two parallel lines are cut by a transversal, thenalternate interior angles are equal.

Page 2 of 22

Geometry - Parallel Lines - Page 2 preview image

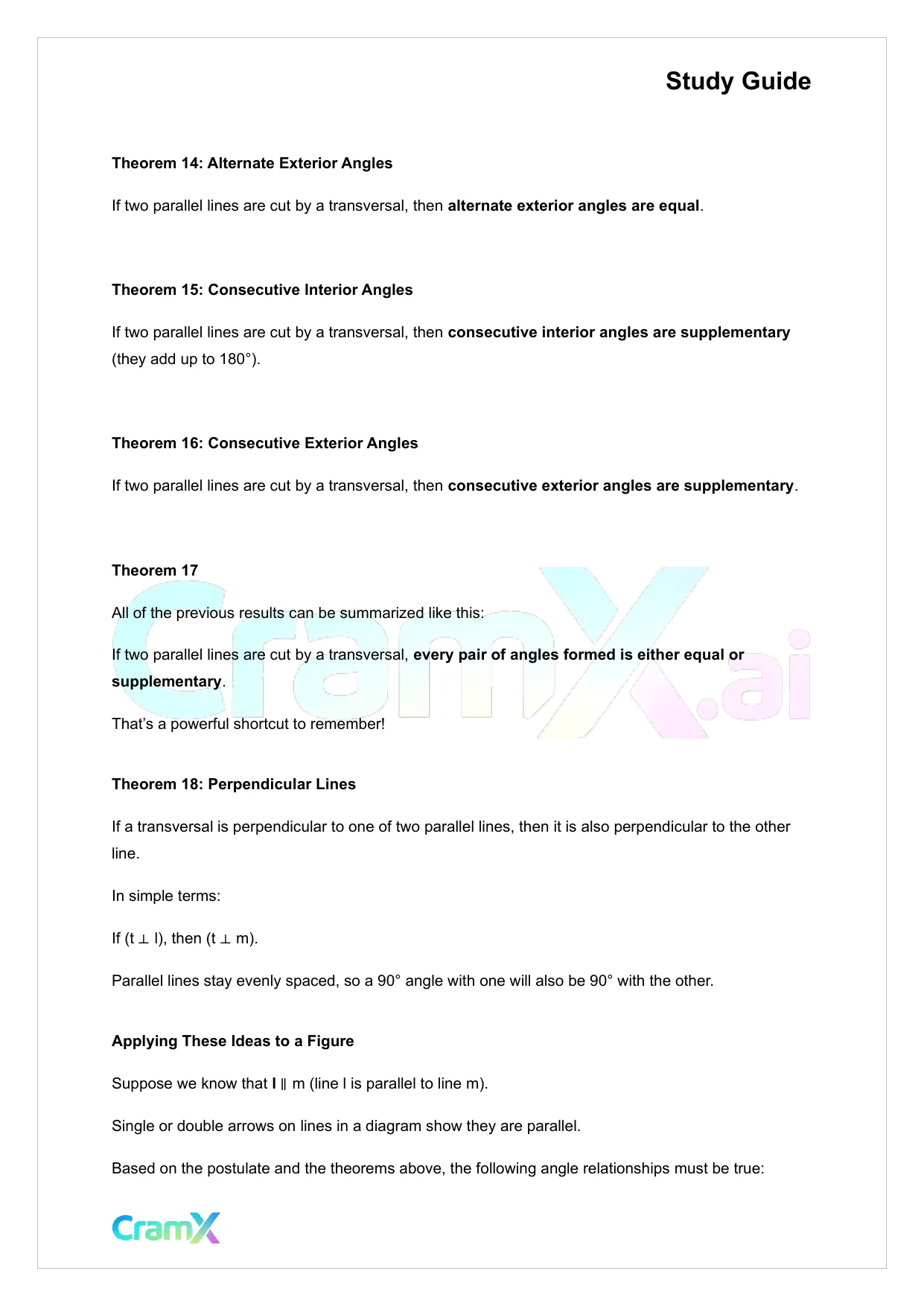

Study GuideTheorem 14: Alternate Exterior AnglesIf two parallel lines are cut by a transversal, thenalternate exterior angles are equal.Theorem 15: Consecutive Interior AnglesIf two parallel lines are cut by a transversal, thenconsecutive interior angles are supplementary(they add up to 180°).Theorem 16: Consecutive Exterior AnglesIf two parallel lines are cut by a transversal, thenconsecutive exterior angles are supplementary.Theorem 17All of the previous results can be summarized like this:If two parallel lines are cut by a transversal,every pair of angles formed is either equal orsupplementary.That’s a powerful shortcut to remember!Theorem 18: Perpendicular LinesIf a transversal is perpendicular to one of two parallel lines, then it is also perpendicular to the otherline.In simple terms:If(t⟂l), then(t⟂m).Parallel lines stay evenly spaced, so a 90° angle with one will also be 90° with the other.Applying These Ideas to a FigureSuppose we know thatl∥m (line l is parallel to line m).Single or double arrows on lines in a diagram show they are parallel.Based on the postulate and the theorems above, the following angle relationships must be true:

Page 3 of 22

Geometry - Parallel Lines - Page 3 preview image

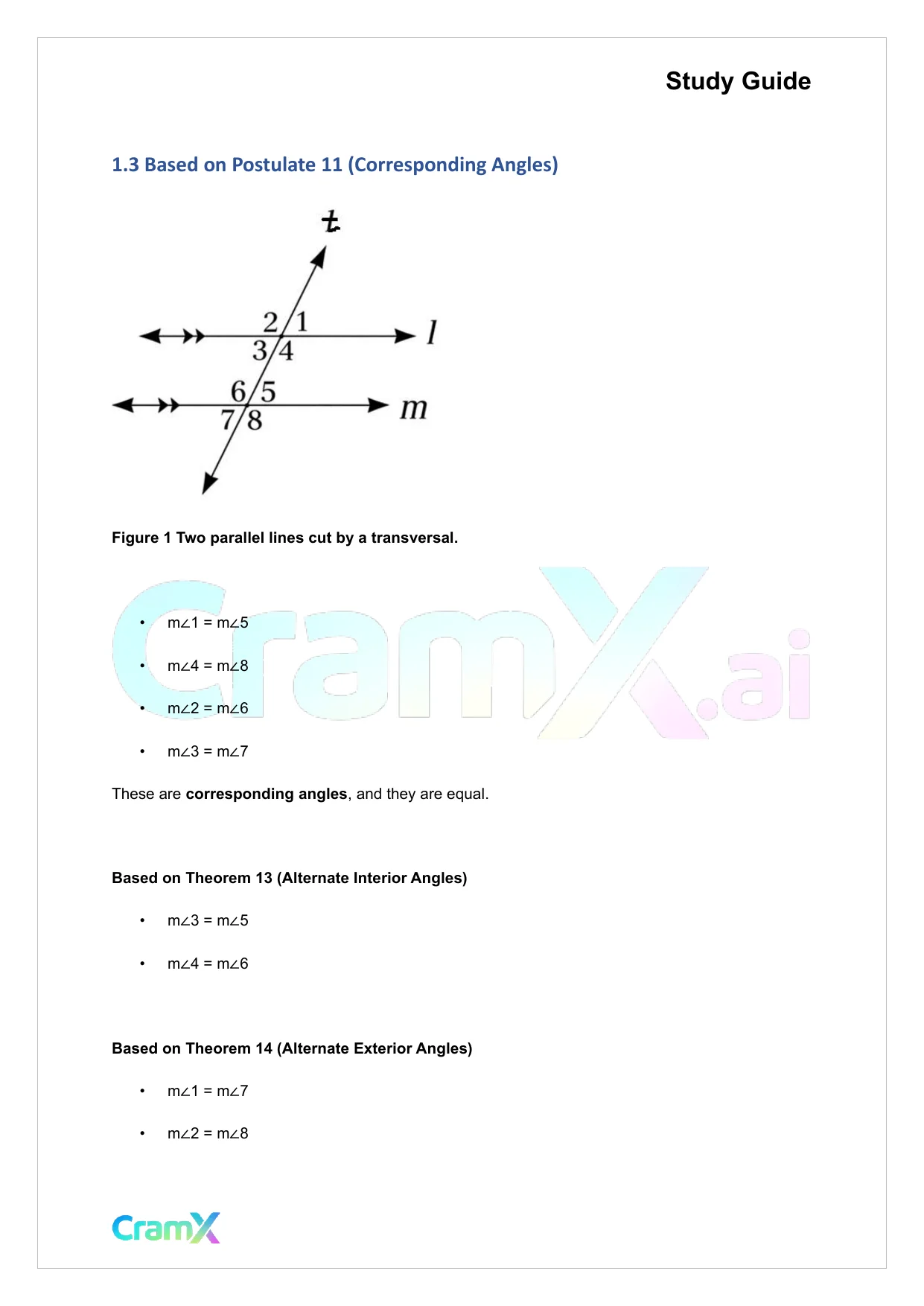

Study Guide1.3Based on Postulate 11 (Corresponding Angles)Figure 1 Two parallel lines cut by a transversal.•m∠1 = m∠5•m∠4 = m∠8•m∠2 = m∠6•m∠3 = m∠7These arecorresponding angles, and they are equal.Based on Theorem 13 (Alternate Interior Angles)•m∠3 = m∠5•m∠4 = m∠6Based on Theorem 14 (Alternate Exterior Angles)•m∠1 = m∠7•m∠2 = m∠8

Page 4 of 22

Geometry - Parallel Lines - Page 4 preview image

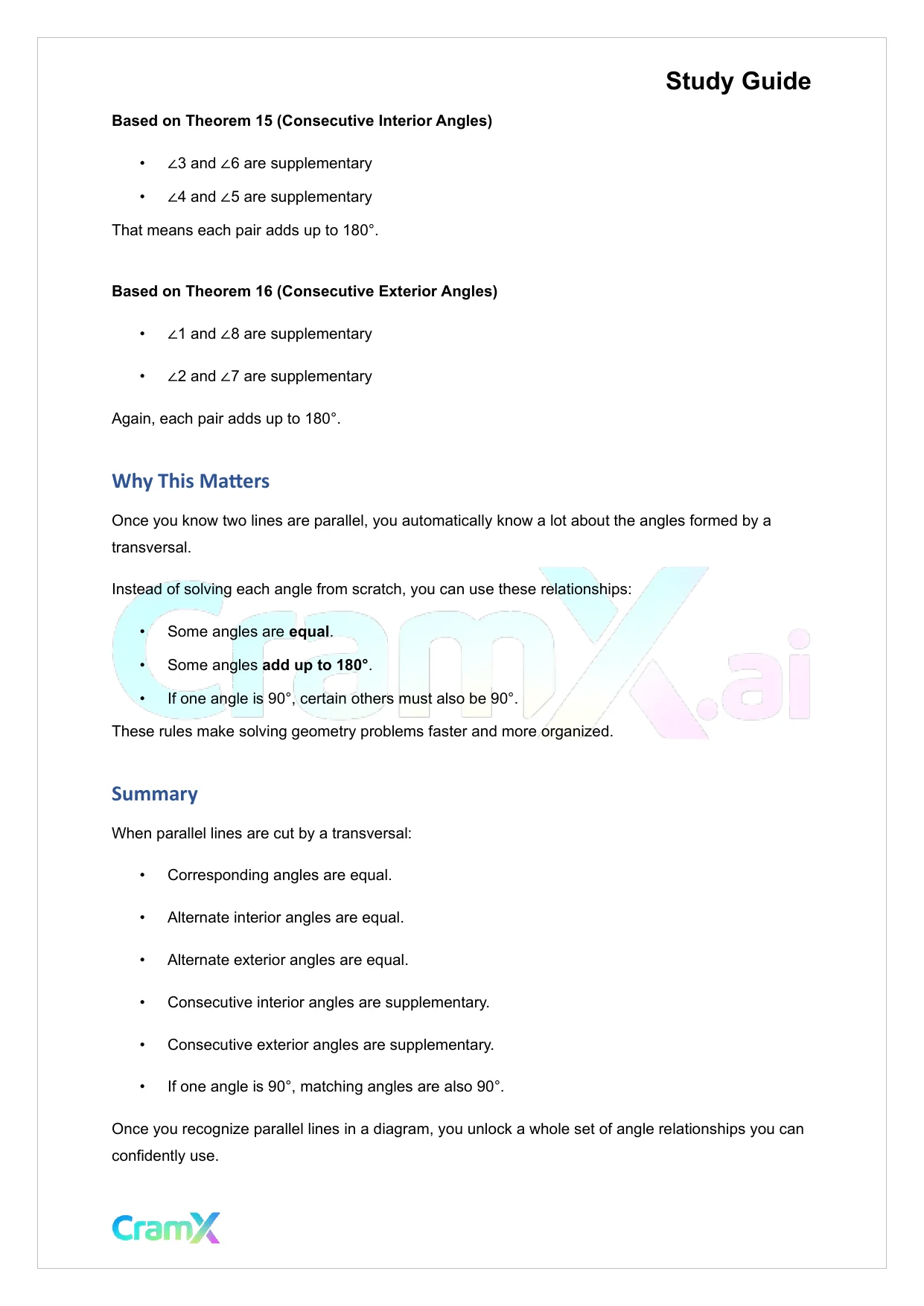

Study GuideBased on Theorem 15 (Consecutive Interior Angles)•∠3 and∠6 are supplementary•∠4 and∠5 are supplementaryThat means each pair adds up to 180°.Based on Theorem 16 (Consecutive Exterior Angles)•∠1 and∠8 are supplementary•∠2 and∠7 are supplementaryAgain, each pair adds up to 180°.Why This MattersOnce you know two lines are parallel, you automatically know a lot about the angles formed by atransversal.Instead of solving each angle from scratch, you can use these relationships:•Some angles areequal.•Some anglesadd up to 180°.•If one angle is 90°, certain others must also be 90°.These rules make solving geometry problems faster and more organized.SummaryWhen parallel lines are cut by a transversal:•Corresponding angles are equal.•Alternate interior angles are equal.•Alternate exterior angles are equal.•Consecutive interior angles are supplementary.•Consecutive exterior angles are supplementary.•If one angle is 90°, matching angles are also 90°.Once you recognize parallel lines in a diagram, you unlock a whole set of angle relationships you canconfidently use.

Page 5 of 22

Geometry - Parallel Lines - Page 5 preview image

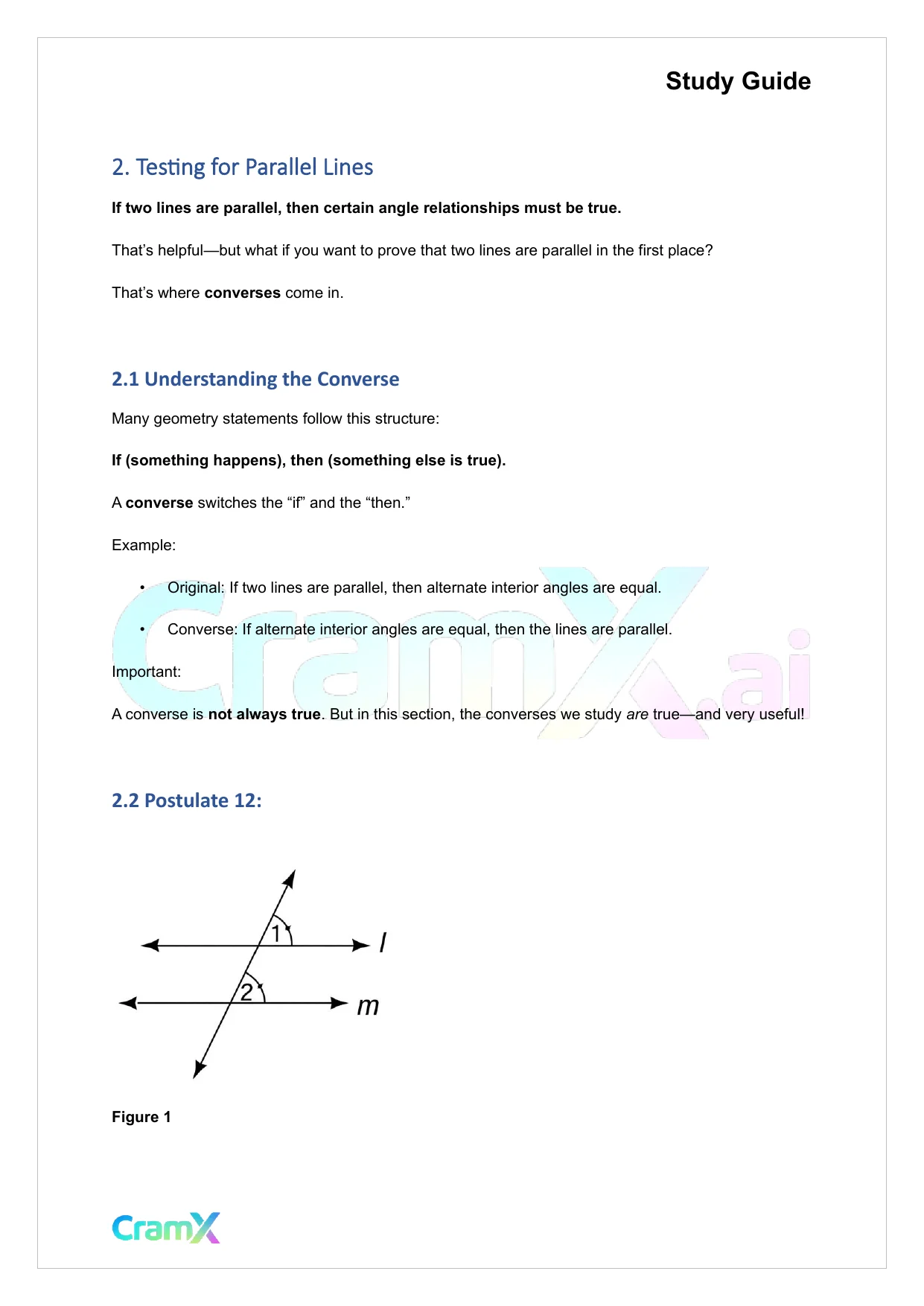

Study Guide2. Testing for Parallel LinesIf two lines are parallel, then certain angle relationships must be true.That’s helpful—but what if you want to prove that two lines are parallel in the first place?That’s whereconversescome in.2.1Understanding the ConverseMany geometry statements follow this structure:If (something happens), then (something else is true).Aconverseswitches the “if” and the “then.”Example:•Original: If two lines are parallel, then alternate interior angles are equal.•Converse: If alternate interior angles are equal, then the lines are parallel.Important:A converse isnot always true. But in this section, the converses we studyaretrue—and very useful!2.2Postulate 12:Figure 1

Page 6 of 22

Geometry - Parallel Lines - Page 6 preview image

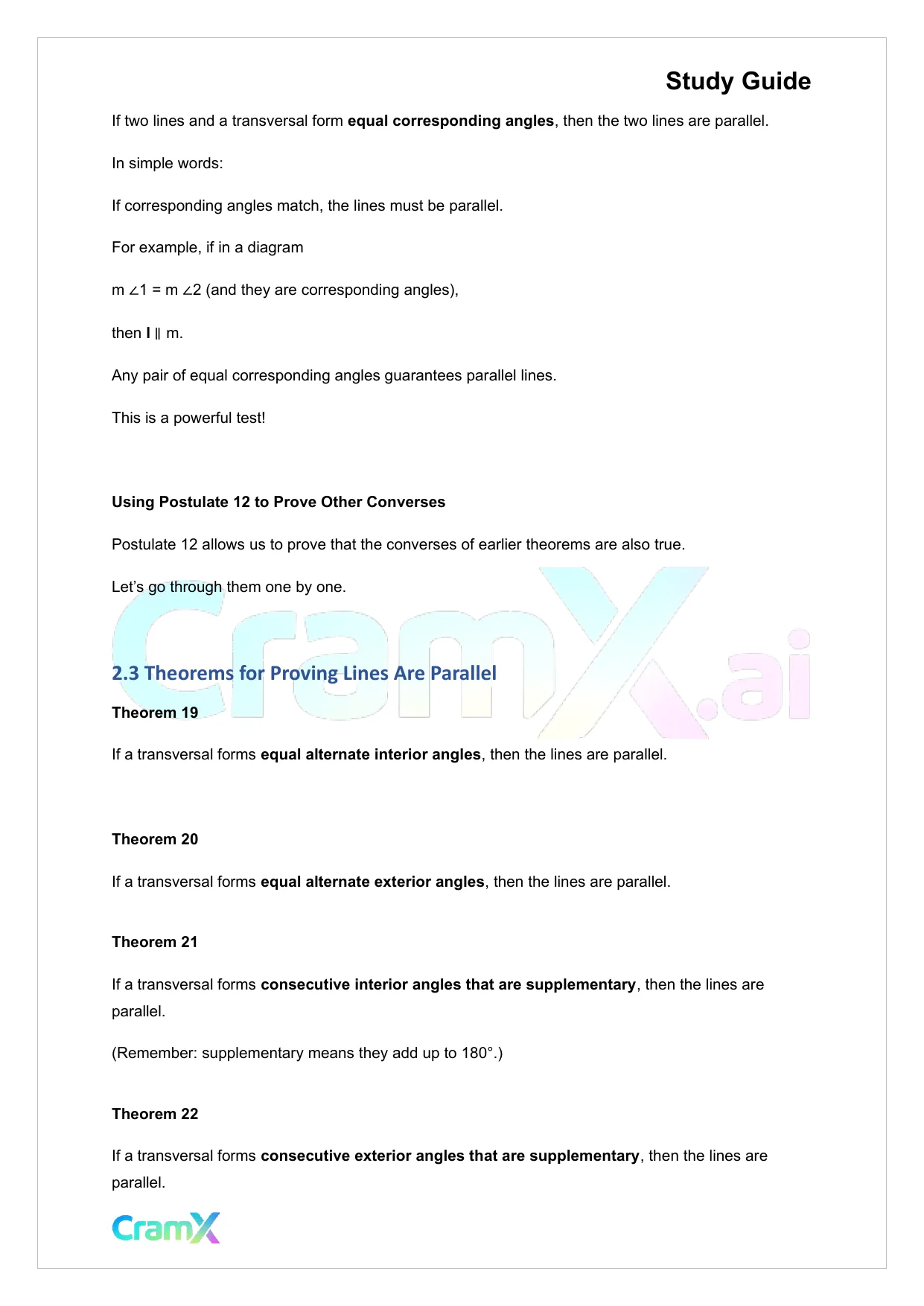

Study GuideIf two lines and a transversal formequal corresponding angles, then the two lines are parallel.In simple words:If corresponding angles match, the lines must be parallel.For example, if in a diagramm∠1 = m∠2 (and they are corresponding angles),thenl∥m.Any pair of equal corresponding angles guarantees parallel lines.This is a powerful test!Using Postulate 12 to Prove Other ConversesPostulate 12 allows us to prove that the converses of earlier theorems are also true.Let’s go through them one by one.2.3Theorems for Proving Lines Are ParallelTheorem 19If a transversal formsequal alternate interior angles, then the lines are parallel.Theorem 20If a transversal formsequal alternate exterior angles, then the lines are parallel.Theorem 21If a transversal formsconsecutive interior angles that are supplementary, then the lines areparallel.(Remember: supplementary means they add up to 180°.)Theorem 22If a transversal formsconsecutive exterior angles that are supplementary, then the lines areparallel.

Page 7 of 22

Geometry - Parallel Lines - Page 7 preview image

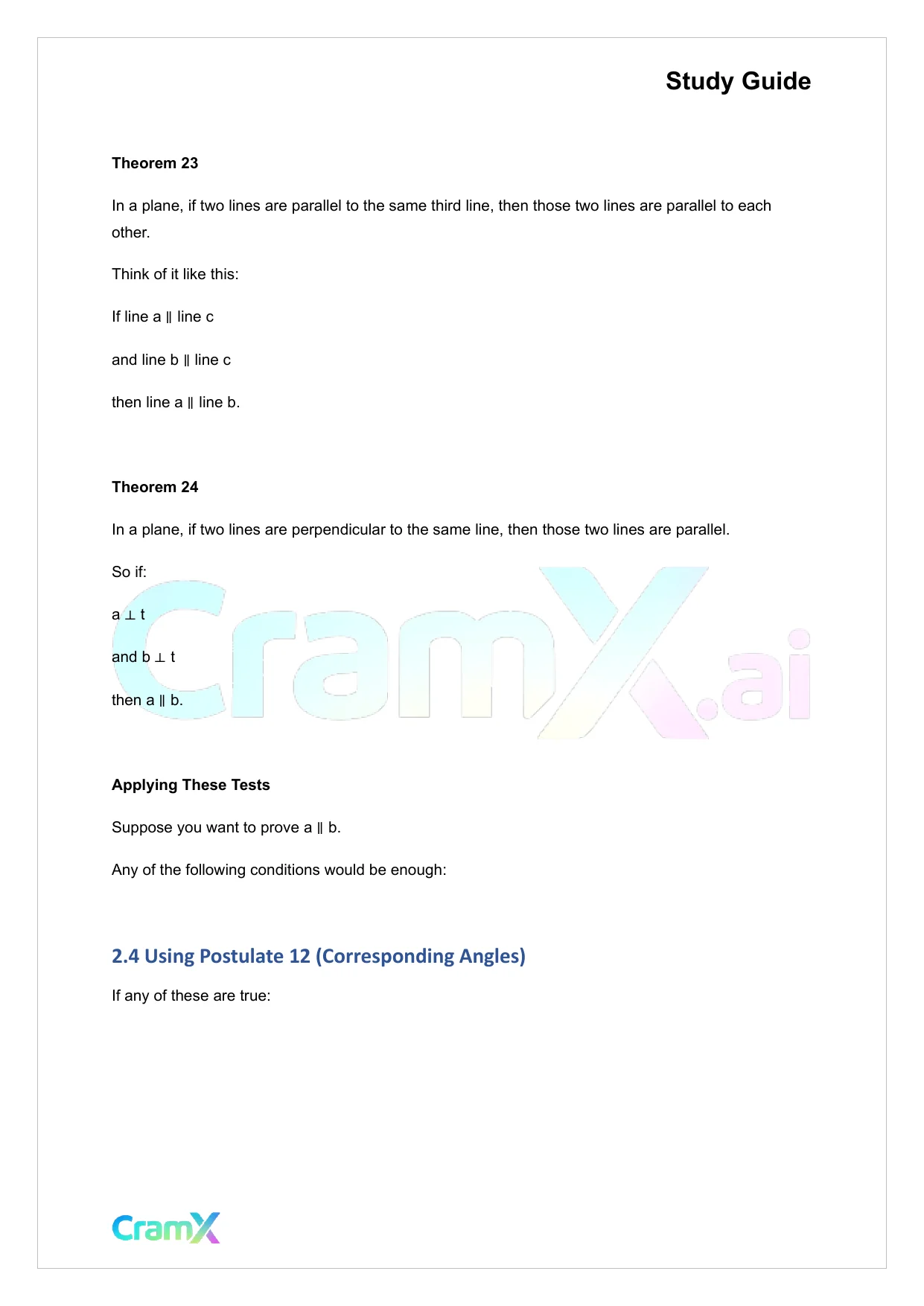

Study GuideTheorem 23In a plane, if two lines are parallel to the same third line, then those two lines are parallel to eachother.Think of it like this:If line a∥line cand line b∥line cthen line a∥line b.Theorem 24In a plane, if two lines are perpendicular to the same line, then those two lines are parallel.So if:a⟂tand b⟂tthen a∥b.Applying These TestsSuppose you want to prove a∥b.Any of the following conditions would be enough:2.4Using Postulate 12 (Corresponding Angles)If any of these are true:
